JLF36250 - Square D 250A 3 Pole 600VAC PowerPact J Frame Circuit Breaker Thermal Magnetic 50kA

JLF36250

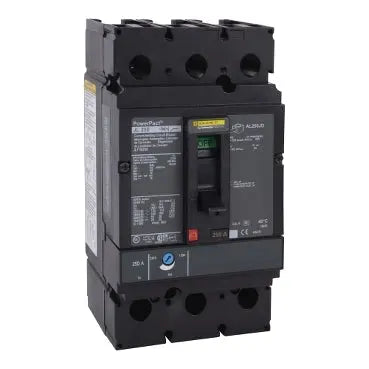

JLF36250 is a Square D PowerPact J Frame molded case circuit breaker rated for 250 amps and 600 volts AC with thermal magnetic trip technology.

This 3 pole circuit breaker features a 50kA interrupting capacity at 600VAC and an 80% continuous current rating. It is designed for unit mount installation with busbar electrical connections. The breaker provides reliable overload and short circuit protection with a thermal magnetic trip unit. It is UL 489 listed and suitable for industrial and commercial power distribution applications.

• Manufacturer: Square D
• Part Number: JLF36250
• Amperage: 250A
• Voltage Rating: 600VAC
• Poles: 3
• Frame Type: PowerPact J Frame
• Interrupt Rating: 50kA at 600VAC
• Trip Unit: Thermal Magnetic
• Mounting Type: Unit Mount
• Continuous Current Rating: 80%
• UL Listing: UL 489

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JLF36250
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JLF
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
