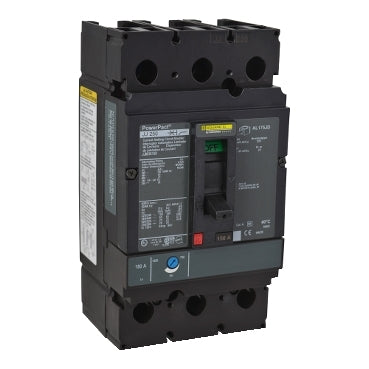

JJM36250 - Square D PowerPact J-Frame 250A 600V 3 Pole Molded Case Circuit Breaker

JJM36250

JJM36250 is a Square D PowerPact J-Frame 3 pole molded case circuit breaker rated for 250A and 600V, designed for industrial and commercial power distribution applications. This breaker features a thermal-magnetic trip unit, unit mount configuration, and high interrupt ratings for reliable protection in demanding environments. It is UL 489 listed and suitable for use in a wide range of electrical systems.

• Part Number: JJM36250
• Manufacturer: Square D
• Amperage Rating: 250A
• Voltage Rating: 600V AC / 250V DC
• Number of Poles: 3
• Frame: J-Frame
• Interrupt Rating: 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC
• Mounting Type: Unit Mount
• Trip Unit: Thermal-Magnetic
• Series: PowerPact
• Actuator Type: Toggle
• Certifications: UL 489 Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJM36250
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JJM
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901068327
• GTIN : 00785901068327
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
