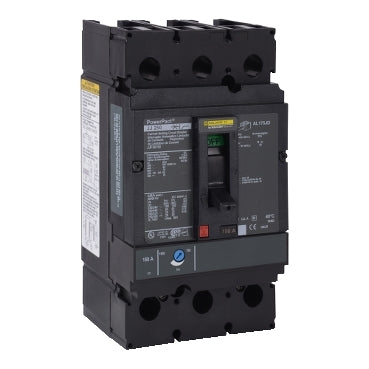

JJL36175T - Square D Powerpact J-Frame Molded Case Circuit Breaker 175A 600V 3 Pole Thermal Magnetic

JJL36175T

JJL36175T is a Square D Powerpact J-Frame molded case circuit breaker designed for reliable overcurrent protection in industrial applications.This 3-pole circuit breaker features a 175 ampere rating and operates at up to 600 volts AC. It utilizes a thermal-magnetic trip unit providing both long-time and instantaneous trip functions for overload and short-circuit protection. The breaker includes lug-type line and load connections suitable for unit-mount installation. It has a breaking capacity of 65kA at 480V and is UL 489 listed with additional certifications including CSA, IEC, CCC, NOM, UKCA, and CE marks. The device supports continuous current rating at 80% and is part of the Powerpact J series frame.

• Manufacturer: Square D
• Series/Frame: Powerpact J-Frame
• Poles: 3
• Amperage: 175A
• Voltage Rating: 600 VAC
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Interrupt Rating: 65kA at 480V
• Mounting Type: Unit-Mount Lug
• Connection Type: Lug line and load
• Certifications: UL 489, CSA, IEC, CCC, NOM, UKCA, CE
• Continuous Current Rating: 80%

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJL36175T
• Manufacturer : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JJL
• Voltage : 600
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901751175
• GTIN : 00785901751175
• Country of Origin : United States
• Dimensions : Height 7.52 in (191 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
• Weight : 4.5
• Certification : CCC-UL LISTED-CE-IEC-CSA
• Wire Size : AWG 4...AWG 4/0 aluminum/copper terminal
