Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
JJA36175

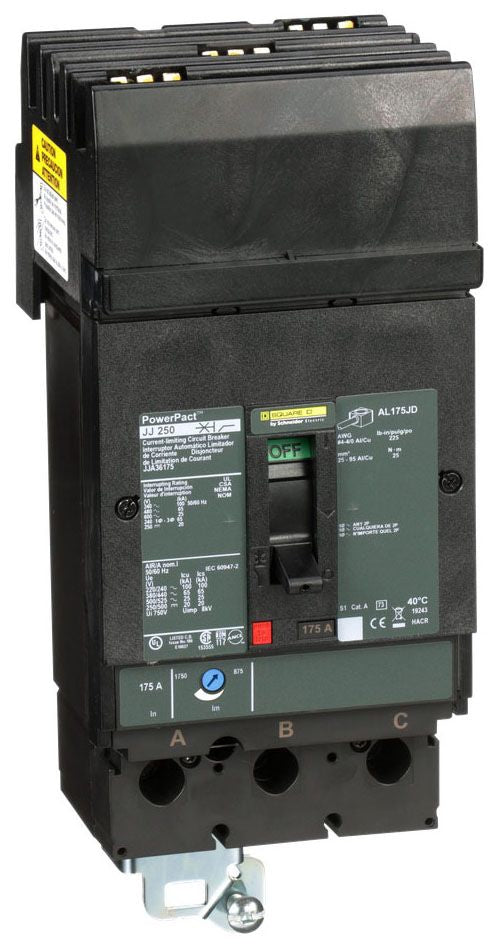

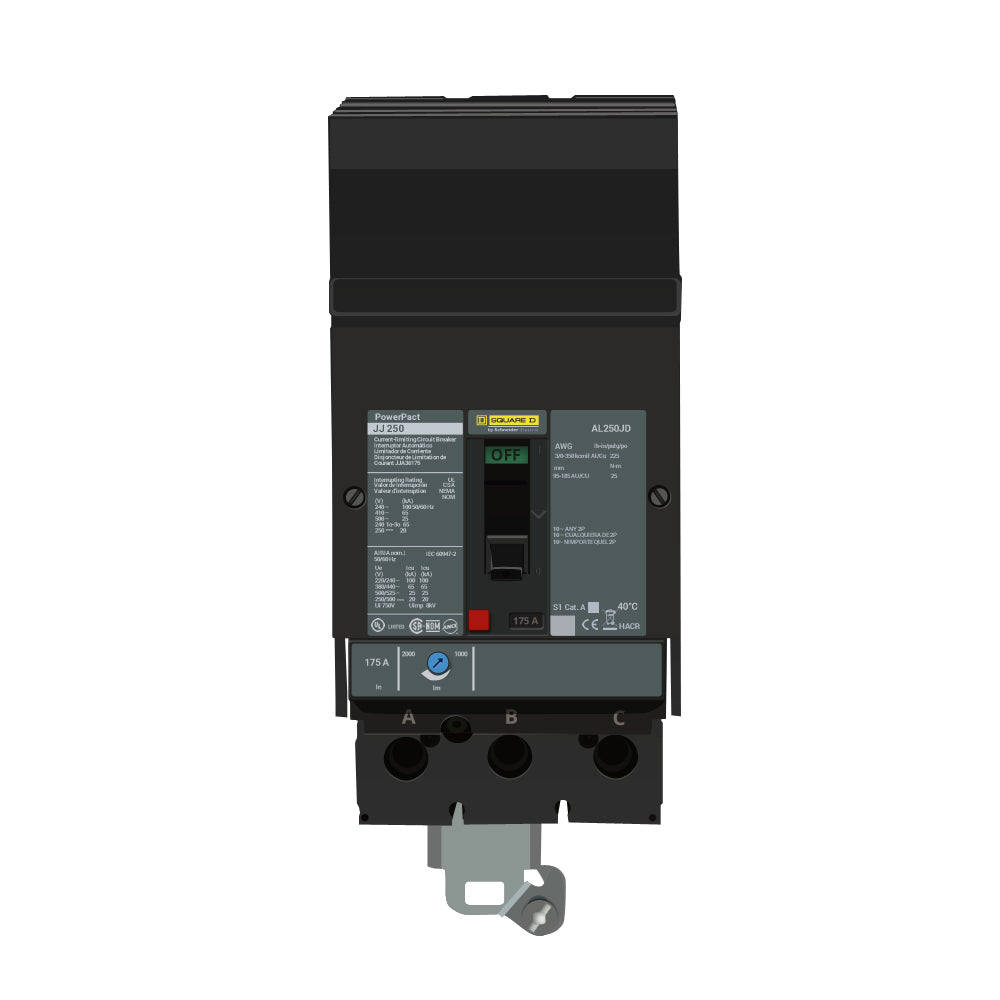

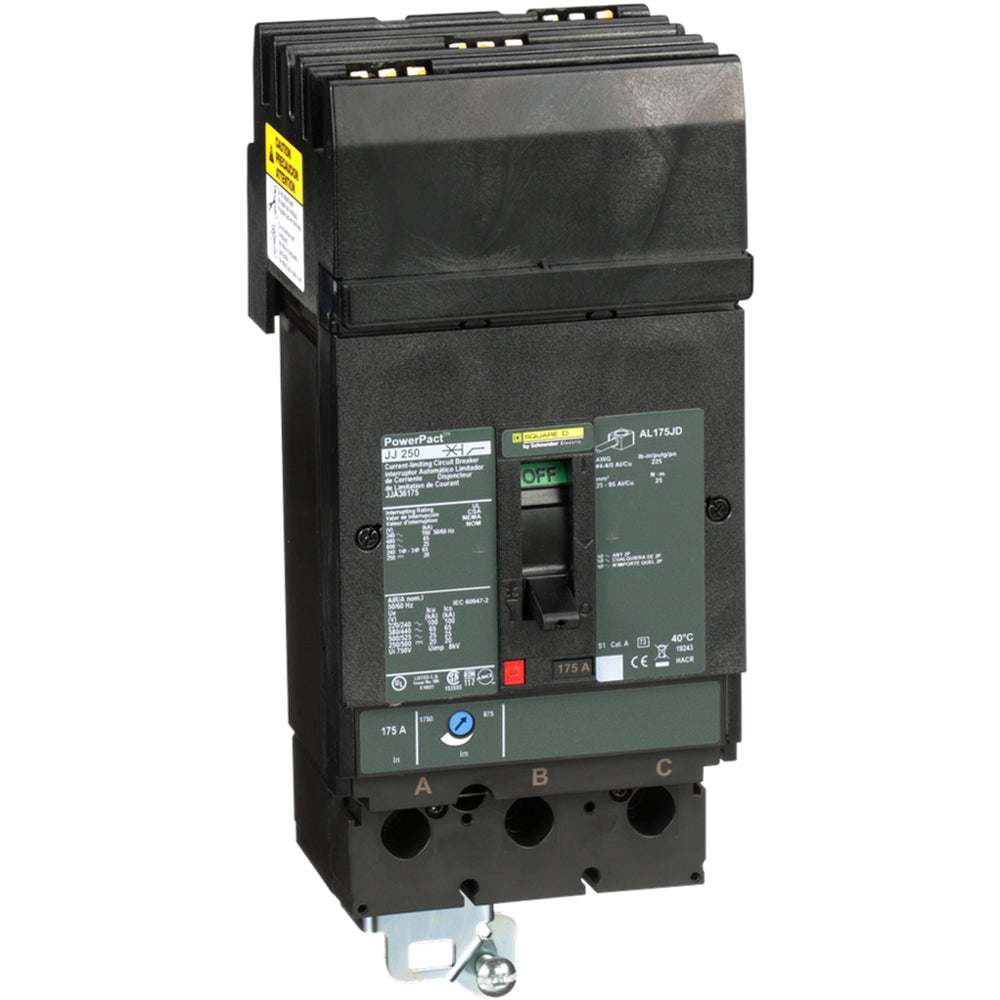

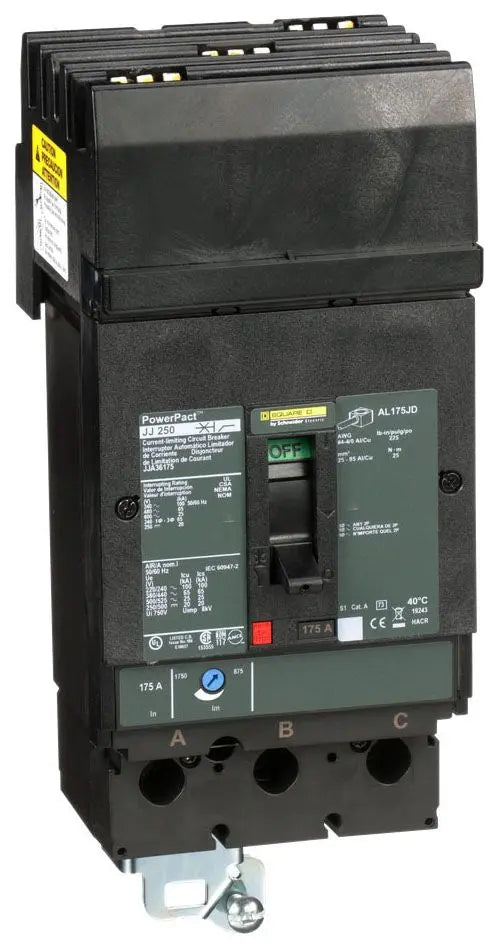

JJA36175 is a Square D PowerPact J series molded case circuit breaker rated for 175 amps and 600VAC with 3 poles and I-Line plug-on mounting.This thermal magnetic circuit breaker features a 65kA interrupting rating at 480VAC and 100AIC at 240VAC, suitable for industrial and commercial power distribution. It includes long-time and instantaneous trip functions, load side lug terminals, and supports wire sizes from AWG 4 to 4/0 aluminum or copper. Certified to UL, CSA, CE, IEC, NEMA, and NOM standards, it is mercury and PVC free with a temperature rating from -25 to 70 °C.
- Key Specifications
- Amperage: 175 A
- Voltage: 600 VAC, 250 VDC
- Poles: 3
- Mounting Type: I-Line Plug-On
- Interrupting Rating: 65kA at 480VAC, 100AIC at 240VAC
- Series/Frame: PowerPact J, Frame JJA
- Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
- Terminal Connection: Load Side Lug
- Wire Gauge: AWG 4 to 4/0 Aluminum/Copper
- Certifications: UL, CSA, CE, IEC, NEMA, NOM
- Temperature Rating: -25 to 70 °C
- Breaker Feature: Mercury Free, PVC Free
Specifications
- Part Number: JJA36175
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : JJA
- Voltage : 600
- Amperage : 175
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : I-Line Style Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : I-Line, Lug
- Frame Size : J
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 785901700715
- GTIN : 00785901700715
- Country of Origin : Mexico

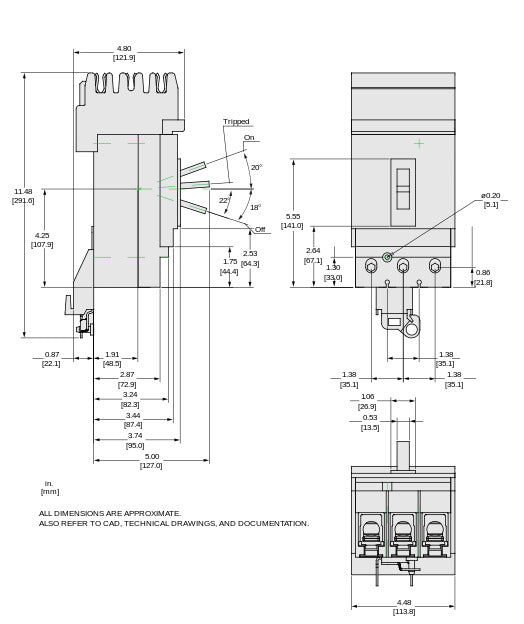

- Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 6.601
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
