JJA36150 - Square D PowerPact J 150A 3 Pole 600VAC 65kAIC I-Line Plug-In Molded Case Circuit Breaker, Thermal Magnetic Trip, UL/CSA/CE/NEMA/NOM/IEC Certified

JJA36150

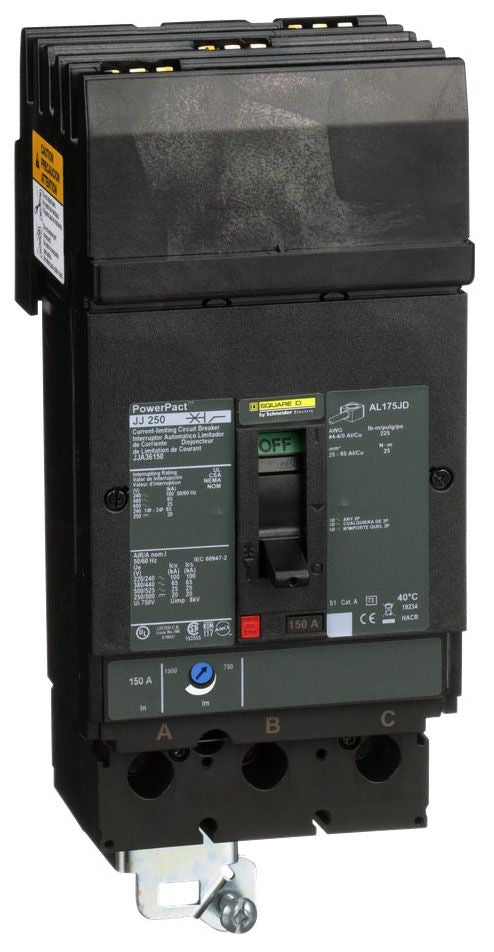

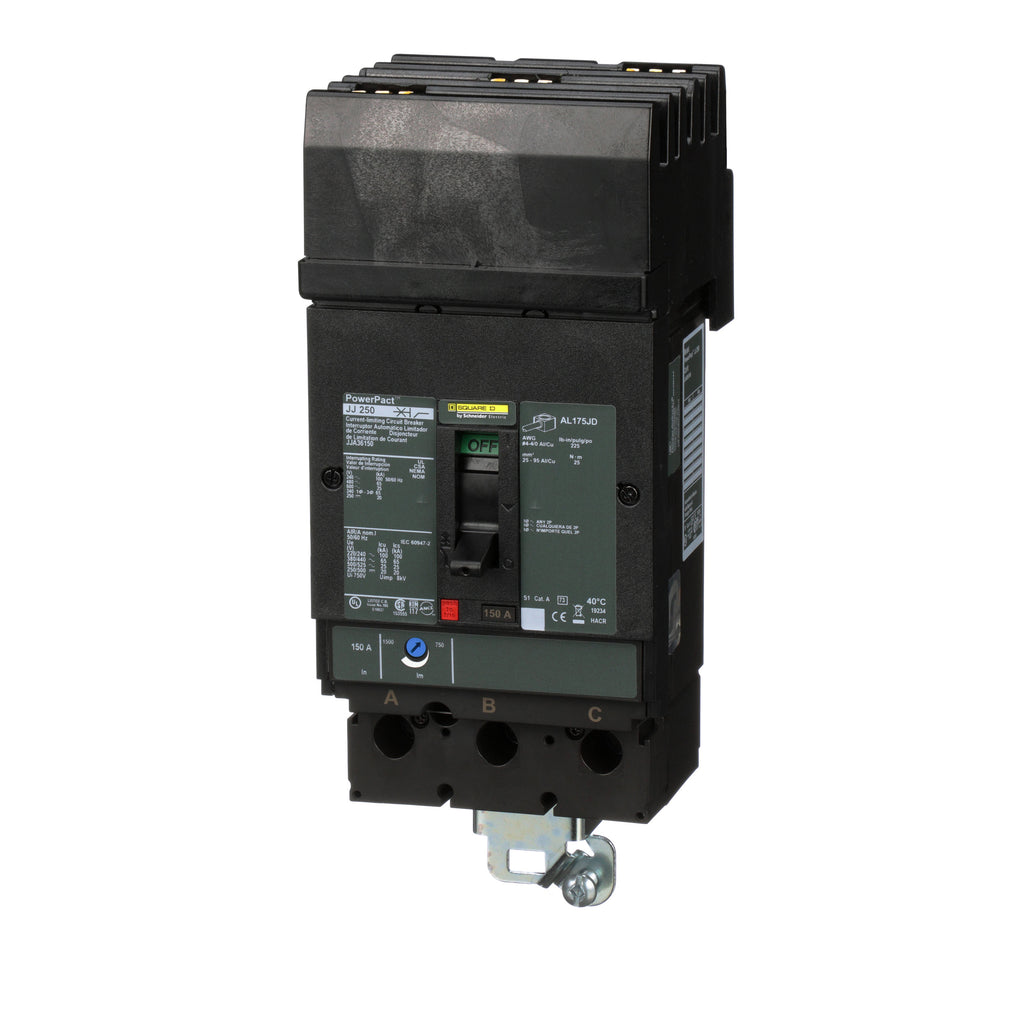

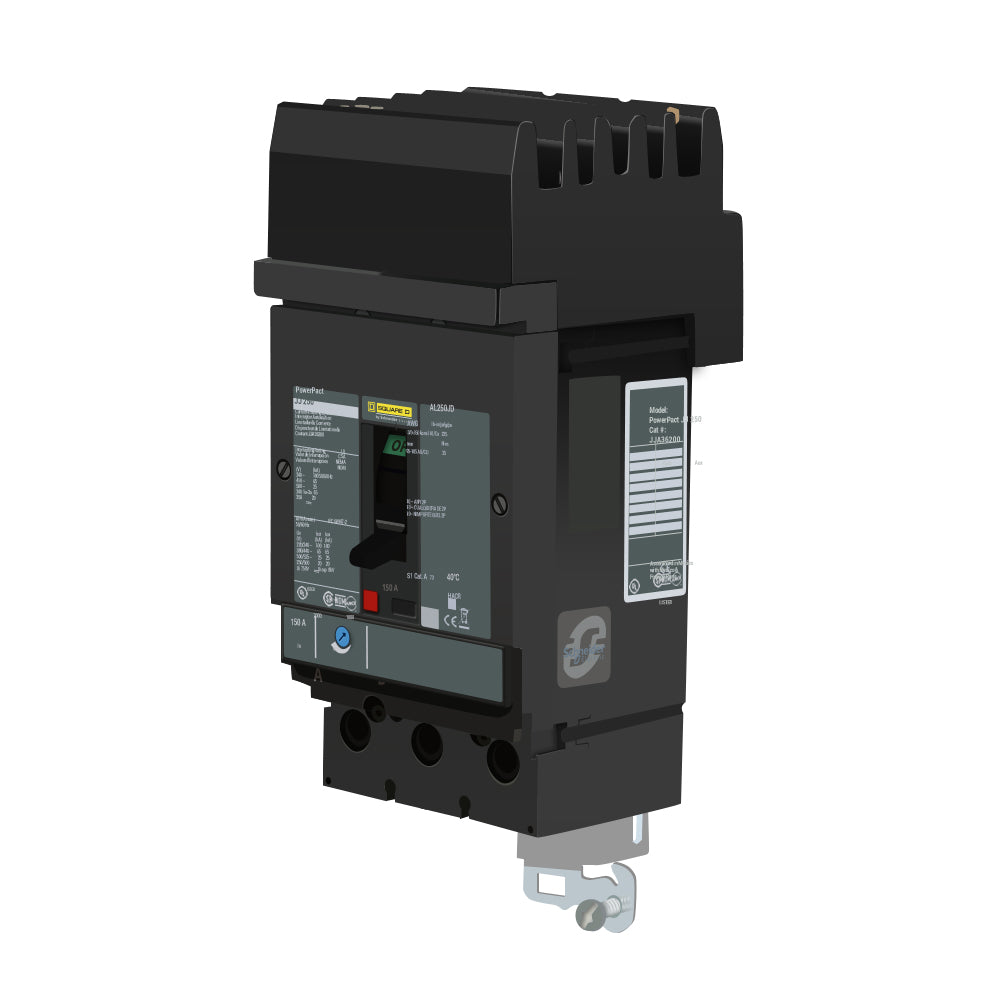

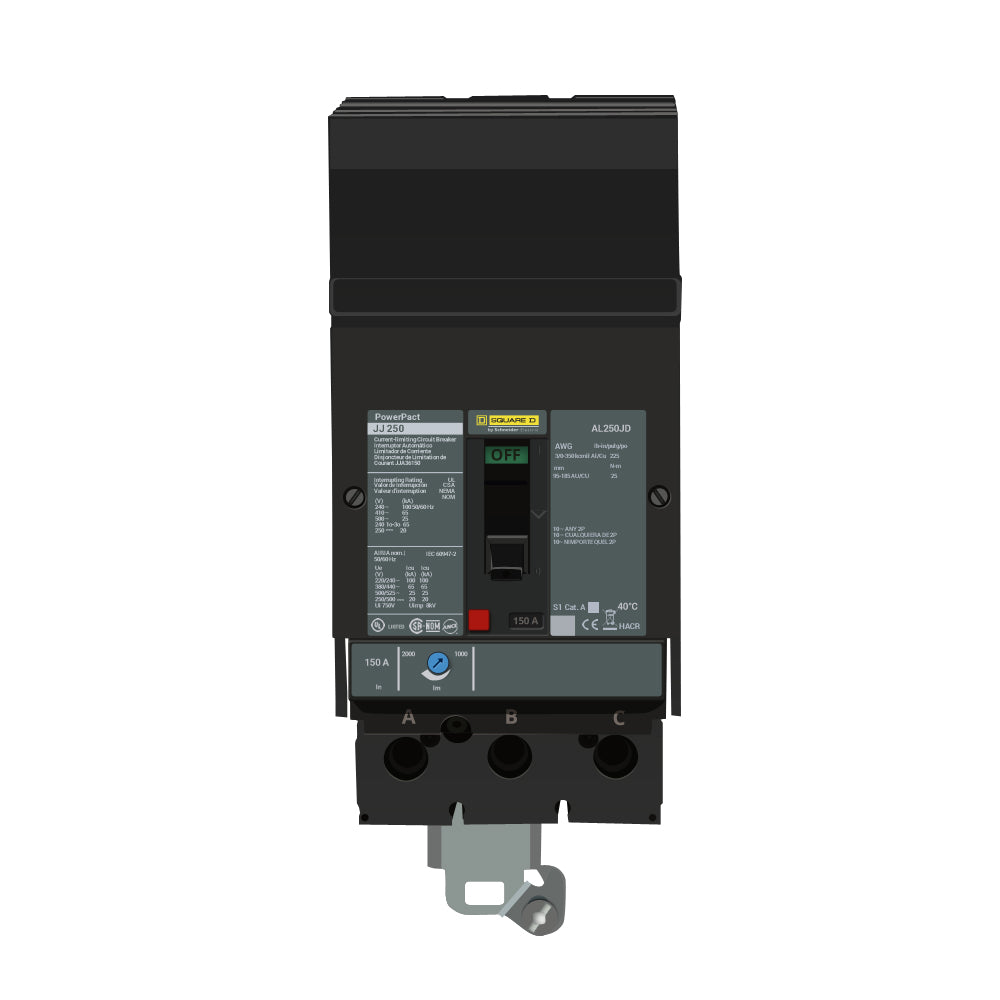

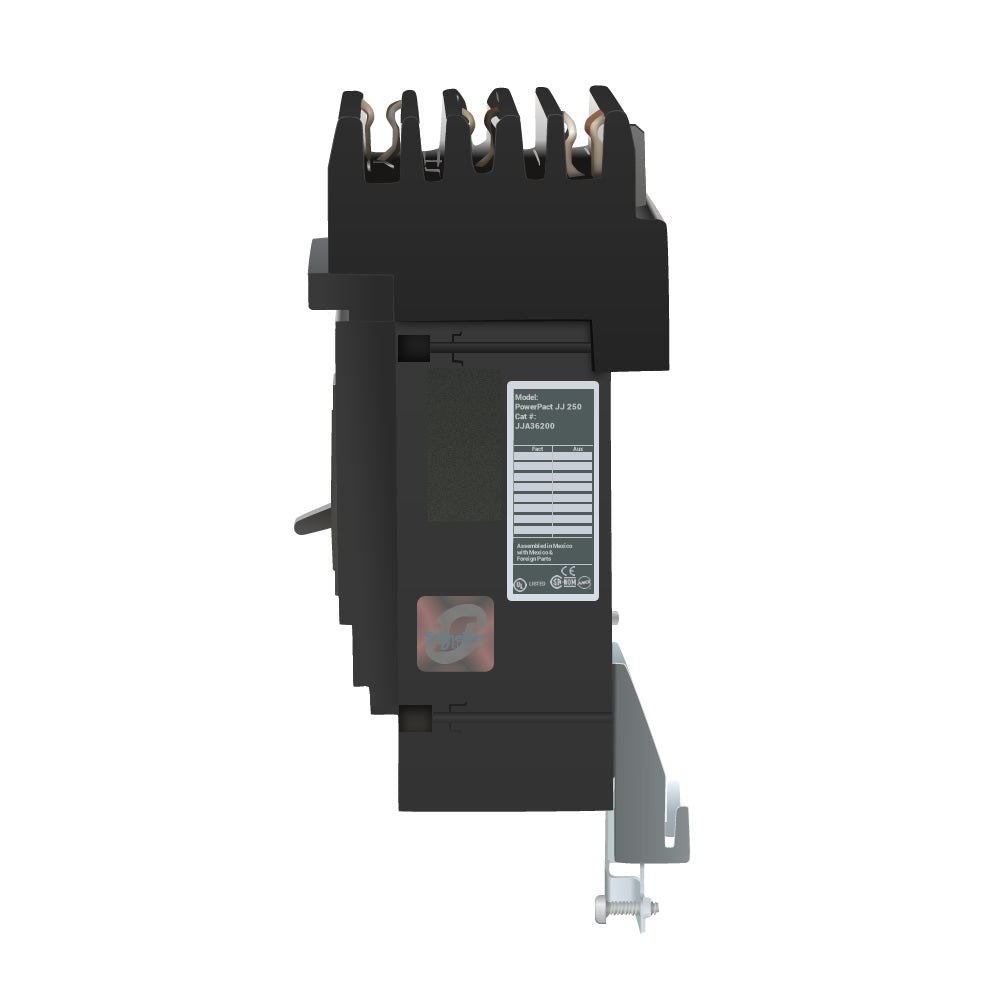

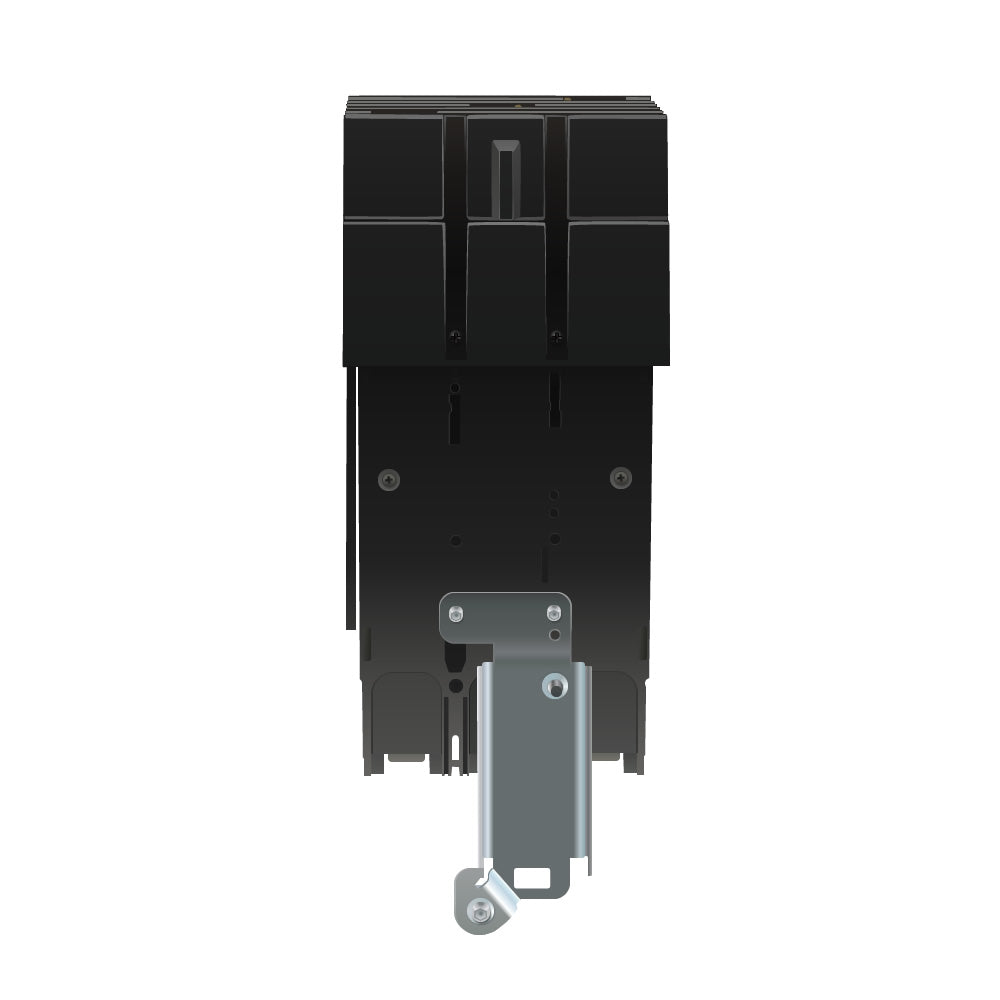

JJA36150 is a Square D PowerPact J-frame, 3-pole, 150A, 600VAC molded case circuit breaker designed for I-Line panelboard plug-in mounting.

This thermal magnetic trip unit breaker offers reliable protection against overloads and short circuits, with an interrupting rating of 65kAIC at 480V, 100kA at 240V, and 25kA at 600V. It is suitable for use with copper or aluminum conductors (AWG 4 to 4/0) and operates in ambient temperatures from -25 to 70°C. The JJA36150 is approved for use in commercial and industrial applications and is certified to multiple international standards.

Key Specifications
• Amperage: 150A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupt Rating: 65kAIC at 480V, 100kA at 240V, 25kA at 600V
• Series/Frame: PowerPact J (JJA)
• Trip Unit: Thermal magnetic (LI – long-time and instantaneous)
• Connection: ABC phase, I-Line style
• Wire Range: AWG 4 to 4/0, aluminum or copper
• Temperature Rating: -25 to 70°C
• Actuator: Toggle
• Certifications: UL, CSA, CE, NEMA, NOM, IEC, RoHS, HACR

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJA36150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JJA
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : J
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901795919
• GTIN : 00785901795919
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 6.64
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
