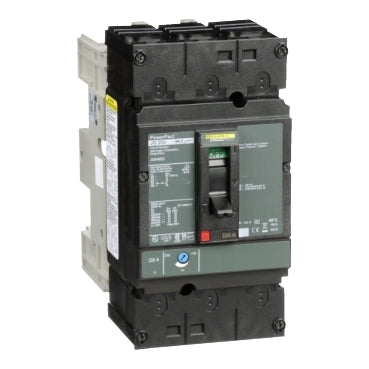

JGN36225 - Square D 225A 600V 3-Pole PowerPact J-Frame Molded Case Circuit Breaker

JGN36225

JGN36225 is a Square D PowerPact J-Frame molded case circuit breaker rated for 225 amps and 600 volts with 3 poles.This circuit breaker features thermal-magnetic trip technology, I-Line plug-in mounting, and a high interrupting capacity suitable for industrial and commercial applications.

• Amperage: 225 Amps
• Voltage Rating: 600 Volts AC
• Number of Poles: 3
• Frame Type: J-Frame
• Mounting Type: I-Line plug-in bracket
• Interrupt Rating: 35kA at 480V, 65kA at 240V, 18kA at 600V
• Trip Unit: Thermal-magnetic
• Control Type: Toggle switch
• Magnetic Hold Current: 1125 Amps
• Continuous Current Rating: 80%
• Certifications: UL Listed, suitable for reverse fed applications
• Electrical Connection: I-Line line and load lugs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGN36225
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGN
• Voltage : 600
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Plug-In
• Frame Size : J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901671015
• GTIN : 00785901671015
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 7.769
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
