JGL36250U31X - Square D 250A 600V 3 Pole PowerPacT J Molded Case Circuit Breaker

JGL36250U31X

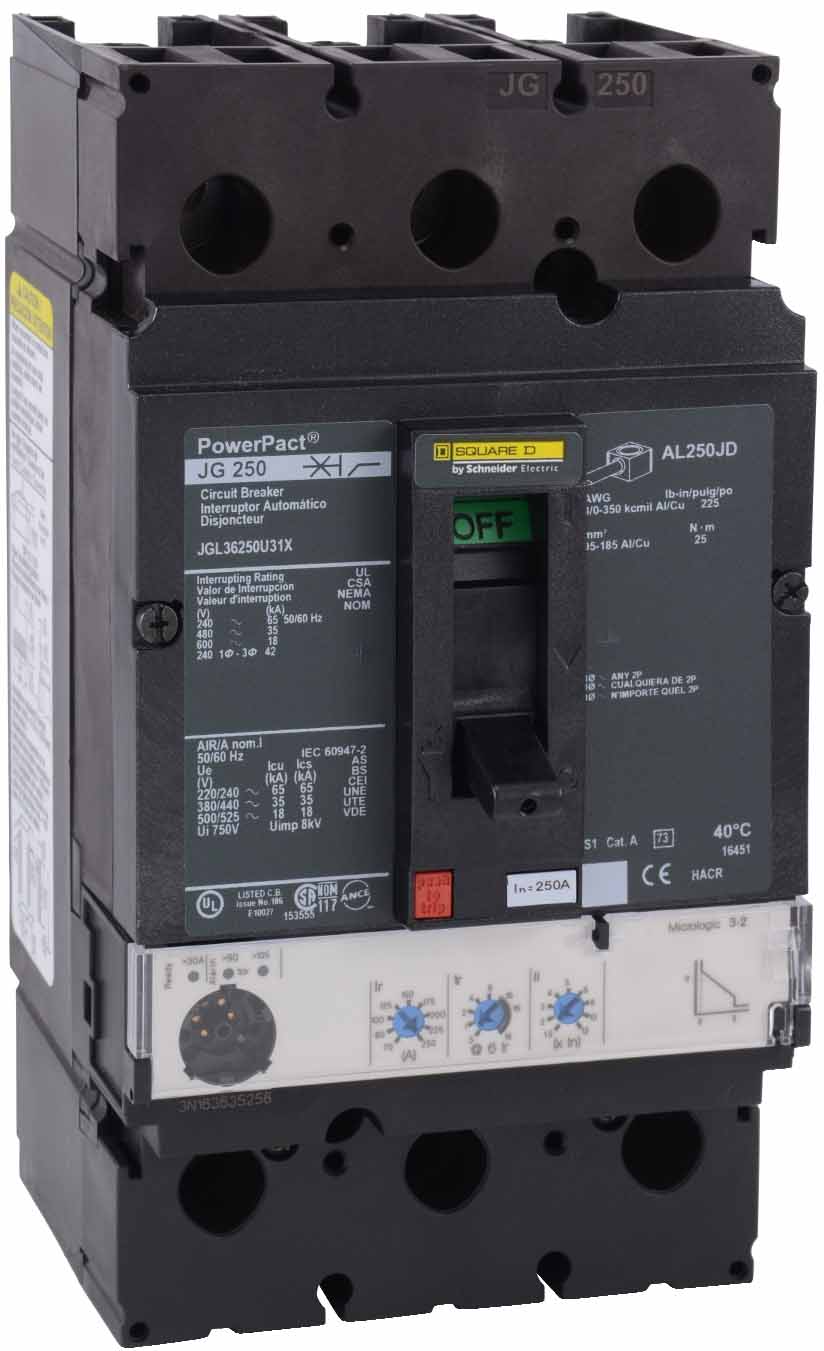

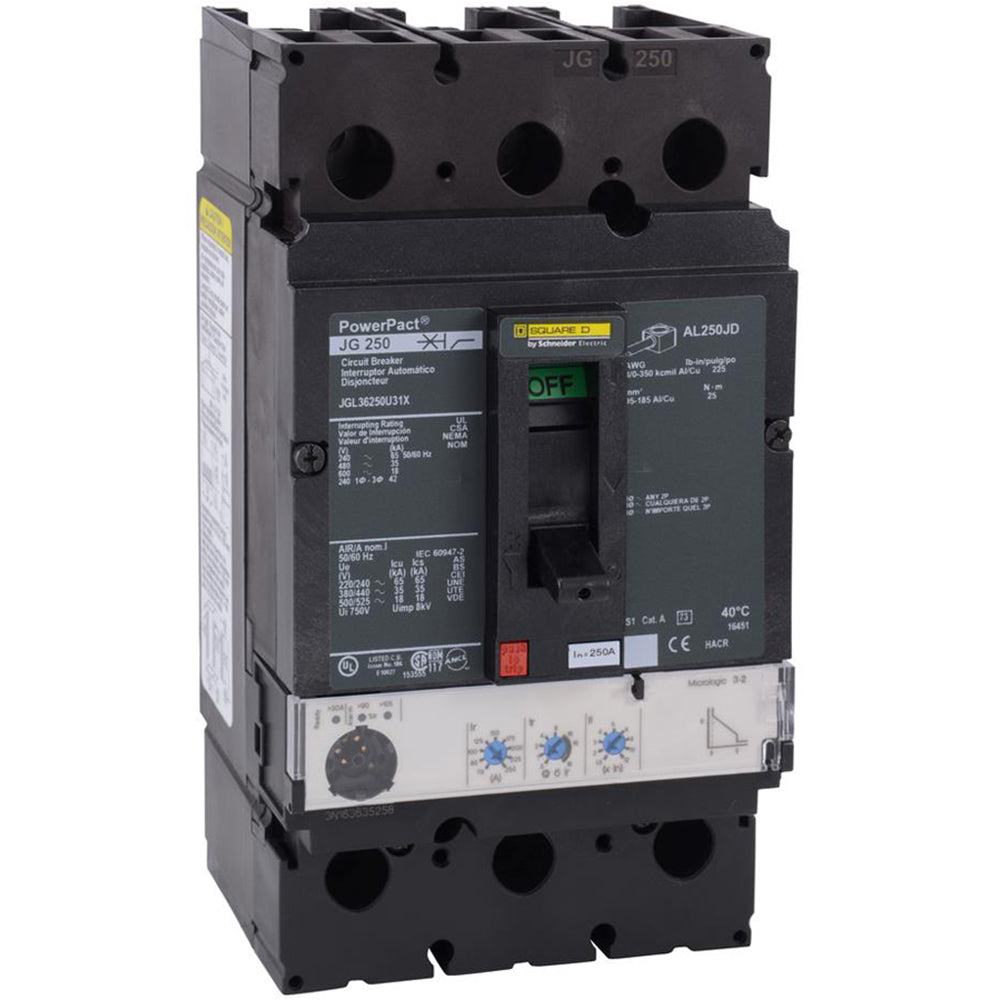

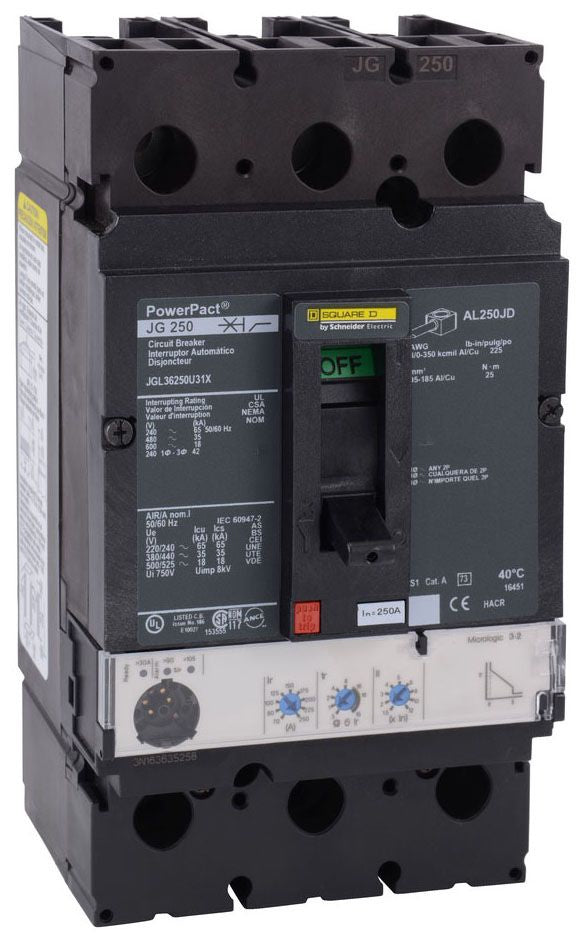

JGL36250U31X is a 3 pole, 250 amp molded case circuit breaker from Square D's PowerPacT J series designed for unit mounting and solid state protection.This circuit breaker features a 600V voltage rating with an interrupting capacity of 65kA at 240VAC, 35kA at 480VAC, and 18kA at 600VAC. It includes long-time and instantaneous trip functions with a MicroLogic 3.2 electronic trip unit, feed-thru connection type, and line/load side lug terminals. Certified to UL, CE, CSA, IEC, and CCC standards, it supports wire gauges up to 3/0 AWG and 350 kcmil aluminum or copper.

Key Specifications
• Amperage: 250A
• Voltage Rating: 600V AC
• Poles: 3
• Series/Frame: PowerPacT JGL
• Mounting Type: Unit Mount
• Interrupt Rating: 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC
• Trip Unit: MicroLogic 3.2 Electronic, Long-Time and Instantaneous
• Connection Type: Feed-Thru
• Terminal Connection: Line and Load Side Lug
• Certifications: UL, CE, CSA, IEC, CCC
• Protection Type: Solid State
• Wire Gauge: AWG 3/0, 350 kcmil Aluminum/Copper

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGL36250U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Box Lug
• Frame Size : 250A/J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG Max. Wire Size 300 MCM
• Breaker Type : Micrologic Standard W LI Functionality
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901125990
• GTIN : 00785901125990
• Country of Origin : Mexico

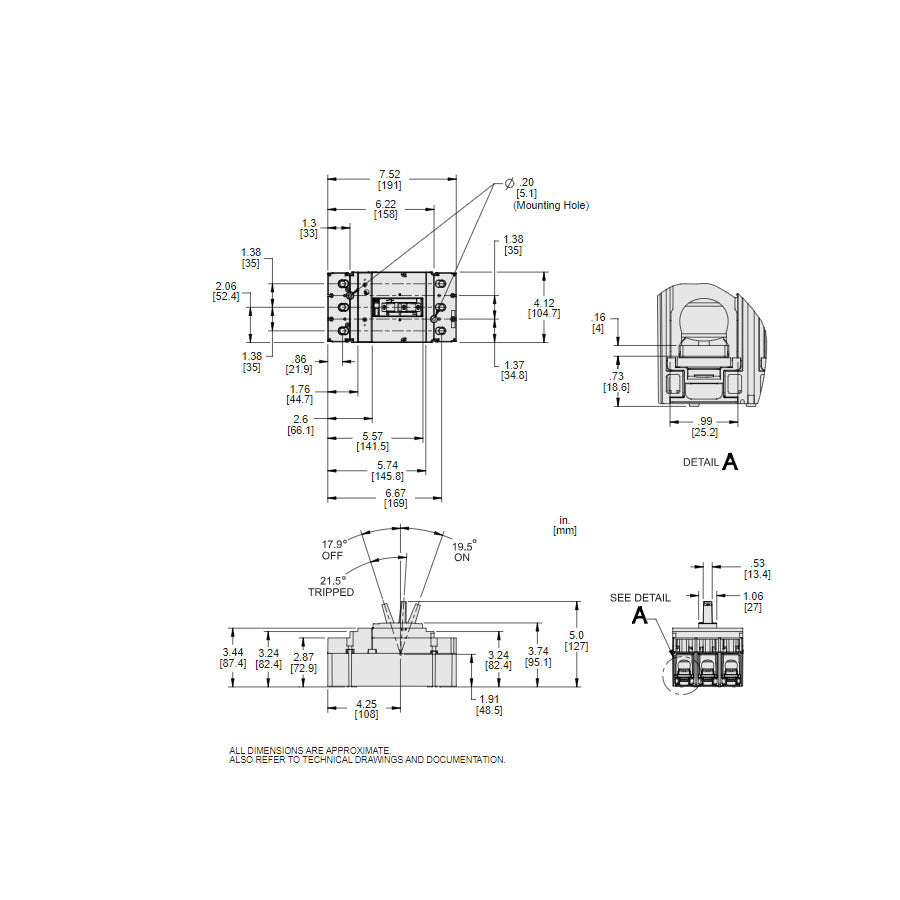

• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.18
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
