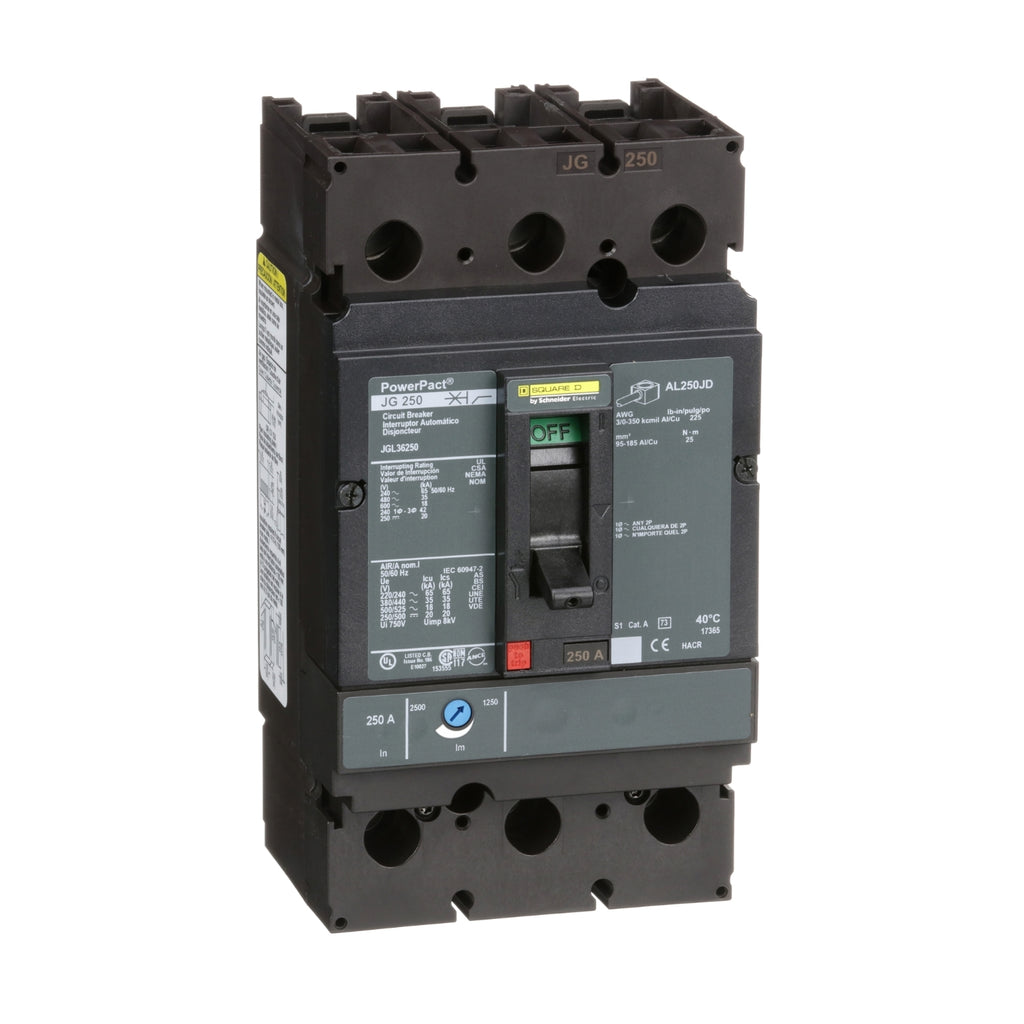

JGL36250AAUO - Square D 250 Amp 3 Pole 600V Molded Case Circuit Breaker Thermal Magnetic

JGL36250AAUO

JGL36250AAUO is a 250 Amp, 3 pole, 600 Volt molded case circuit breaker from Square D designed for reliable overcurrent protection.This PowerPacT J series breaker features thermal magnetic trip technology with long-time and instantaneous trip functions. It supports unit mount lug connections with line and load side lugs and has a feed-thru connection type. The breaker is rated for 18kA interrupting capacity at 480VAC and 25kA at 240VAC, suitable for three-phase applications up to 600VAC or 250VDC. It is UL 489 listed and carries multiple certifications including CSA, NOM, IEC, UKCA, and CE.

• Amperage: 250 Amp
• Voltage: 600 VAC, 250 VDC
• Poles: 3
• Frame Type: JDL (PowerPacT J)
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
• Interrupt Rating: 18kA at 480VAC, 25kA at 240VAC, 14kA at 600VAC
• Mounting Type: Unit Mount
• Connection Type: Feed-Thru with line and load side lugs
• Continuous Current Rating: 80%
• Certifications: UL 489, CSA, NOM, IEC, UKCA, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGL36250AAUO
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901698036
• Country of Origin : United States
• Weight : 5
