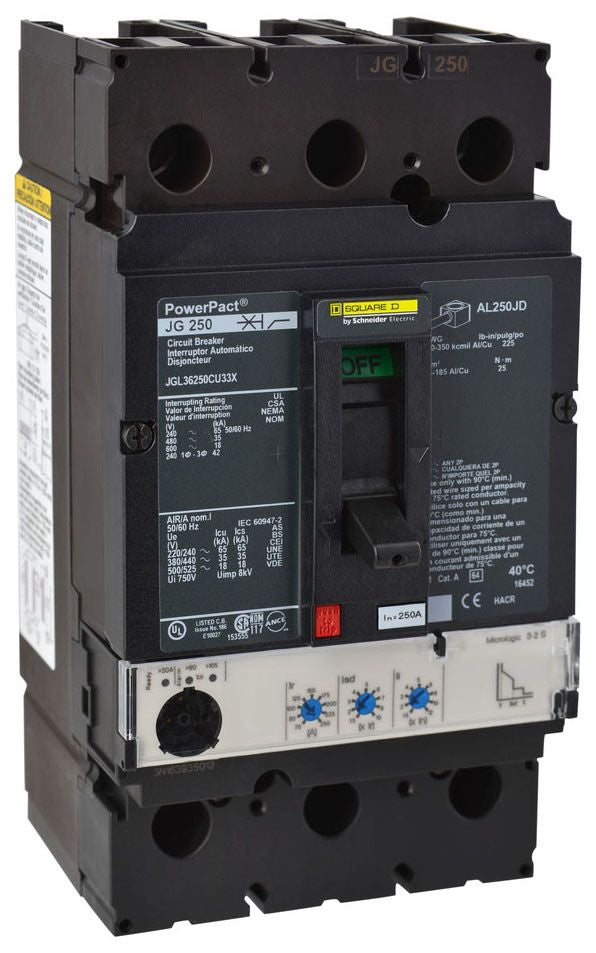

JGL36250CU33X - Square D 250A 600V 3 Pole Molded Case Circuit Breaker PowerPact J Frame Micrologic 3.2 S LSI

JGL36250CU33X

JGL36250CU33X is a 3 pole, 250A, 600V molded case circuit breaker from Square D's PowerPact J Frame series, featuring Micrologic 3.2 S LSI electronic trip unit and current limiting design. This breaker is designed for high-performance power distribution applications, offering reliable protection with adjustable trip settings, line and load lugs, and a robust unit mount configuration. It is UL 489 listed and suitable for use in industrial and commercial environments.

• Part Number: JGL36250CU33X
• Manufacturer: Square D
• Series/Frame: PowerPact J Frame
• Amperage: 250A
• Voltage Rating: 600V AC
• Poles: 3 Pole
• Mounting Type: Unit Mount
• Interrupt Rating: 65kA @ 240V, 35kA @ 480V, 18kA @ 600V
• Trip Unit: Micrologic 3.2 S LSI
• Current Limiting: Yes
• Certifications: UL 489, CSA, CE
• Application: Molded Case Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGL36250CU33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Solid State

Product Data

• UPC : 785901655237
• GTIN : 00785901655237
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
