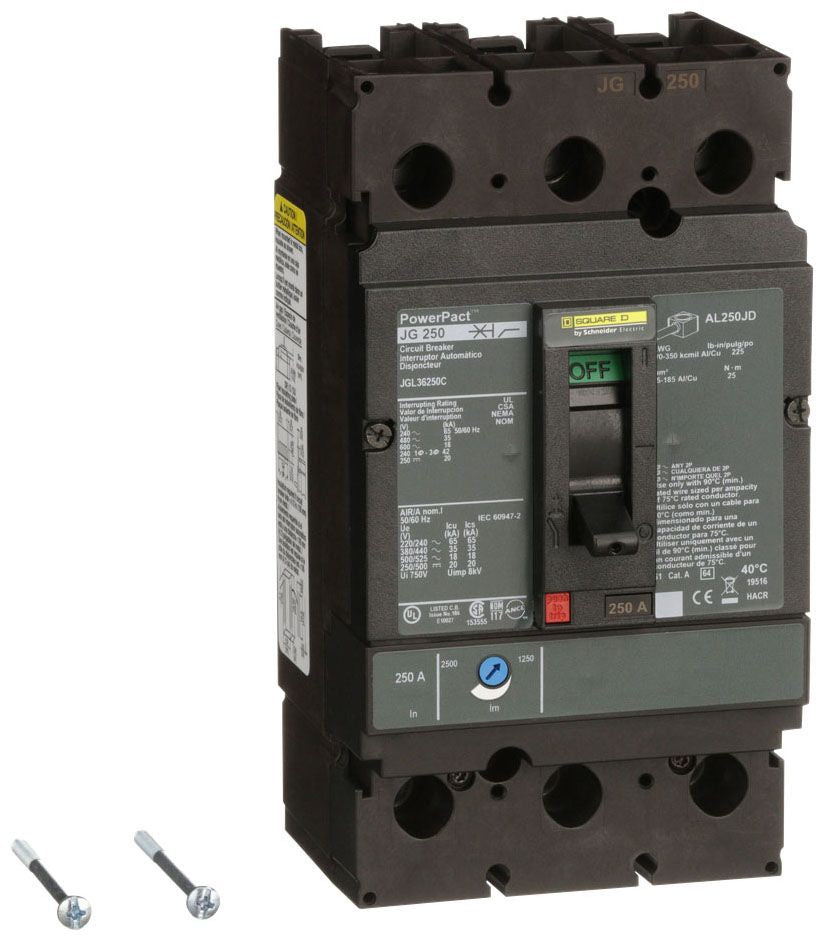

JGL36250C - Square D PowerPact J 250A 600VAC 3-Pole Molded Case Circuit Breaker

JGL36250C

JGL36250C is a Square D PowerPact J-Frame molded case circuit breaker designed for industrial and commercial power distribution applications requiring reliable thermal magnetic circuit protection. This unit mount breaker delivers 250 amperes at 600 VAC or 500 VDC with a 3-pole configuration and current-limiting capability for enhanced system protection. The breaker features adjustable thermal magnetic trip characteristics and is UL 489 listed for safety and performance compliance.

• Amperage Rating: 250 A
• Voltage Rating: 600 VAC / 500 VDC
• Poles: 3
• Frame Size: J-Frame
• Trip Unit: Thermal Magnetic, Adjustable
• Interrupt Rating: 65 kA @ 240 VAC, 35 kA @ 480 VAC, 18 kA @ 600 VAC
• Mounting: Unit Mount
• Actuator Type: Toggle
• Current Limiting: Yes
• Certification: UL 489 Listed
• Dimensions: 4.09 in W x 3.39 in D x 7.52 in H
• Wire Range: AWG 3/0 to 350 kcmil

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGL36250C
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : G
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901552390
• GTIN : 00785901552390
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 6.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
