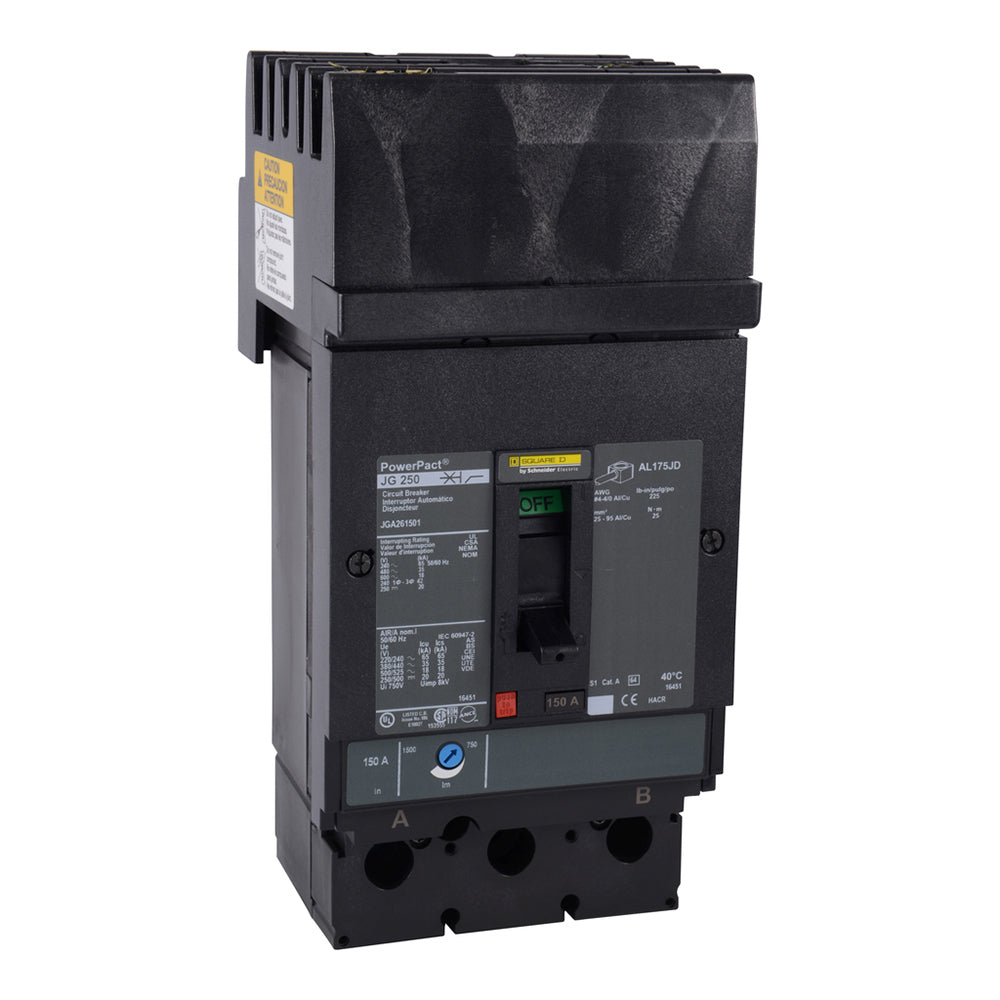

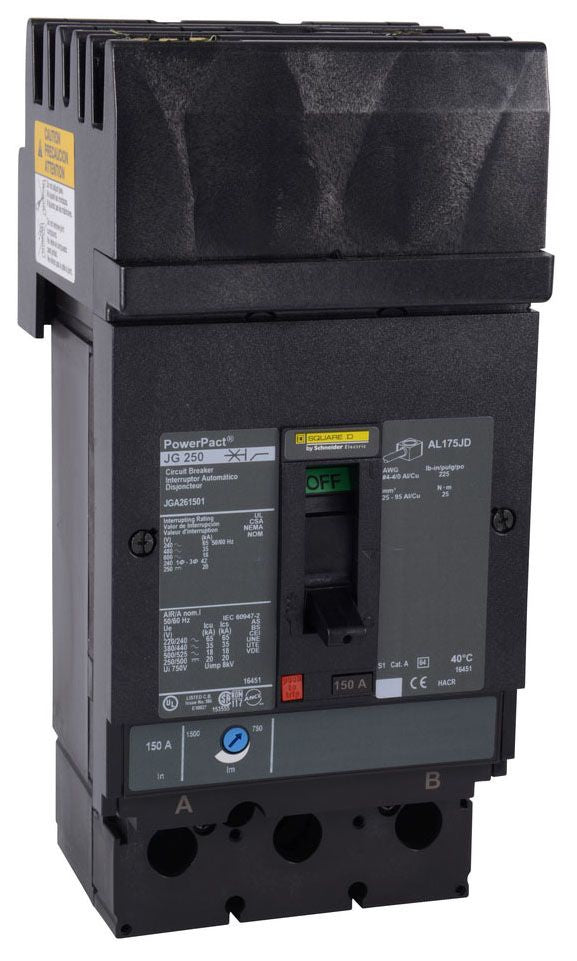

JGA262502 - Square D PowerPact J-Frame 250A 2 Pole 600V I-Line Molded Case Circuit Breaker 18kA@600V

JGA262502

JGA262502 is a Square D PowerPact J-Frame molded case circuit breaker designed for I-Line power distribution systems. This 2-pole breaker provides reliable protection for electrical circuits with a continuous current rating of 250A and a voltage rating of 600V AC. The JGA262502 features a thermal magnetic trip unit and is rated for 18kA interrupting capacity at 600V AC, 35kA at 480V AC, and 65kA at 240V AC. It is suitable for use in I-Line busway systems and offers a continuous current rating of 80%. This breaker is UL Listed and CSA certified for safety and compliance.

• Part Number: JGA262502
• Manufacturer: Square D
• Series/Frame: PowerPact J-Frame
• Amperage: 250A
• Voltage Rating: 600V AC
• Poles: 2 Pole
• Mounting Type: I-Line
• Interrupt Rating: 18kA @ 600V AC, 35kA @ 480V AC, 65kA @ 240V AC
• Trip Unit: Thermal Magnetic
• Continuous Current Rating: 80%
• Certifications: UL Listed, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGA262502
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGA
• Voltage : 600
• Amperage : 250
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Plug In Panelboard
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 250A/JG
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 4/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : AC

Product Data

• UPC : 785901630654
• GTIN : 00785901630654
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.5
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
