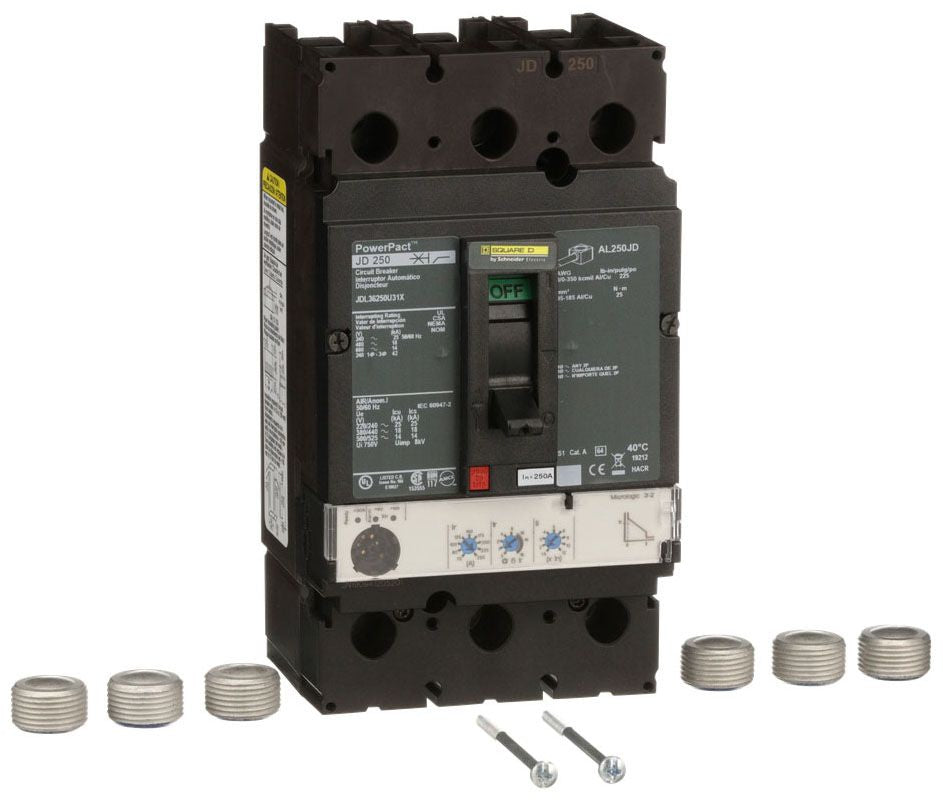

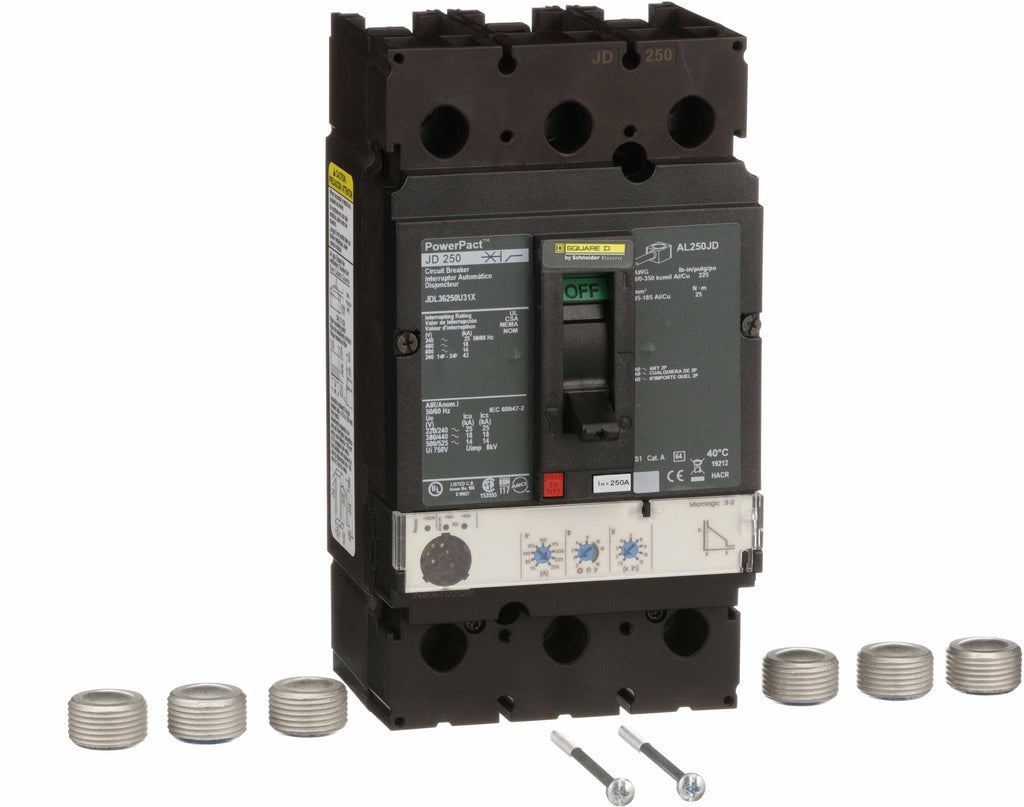

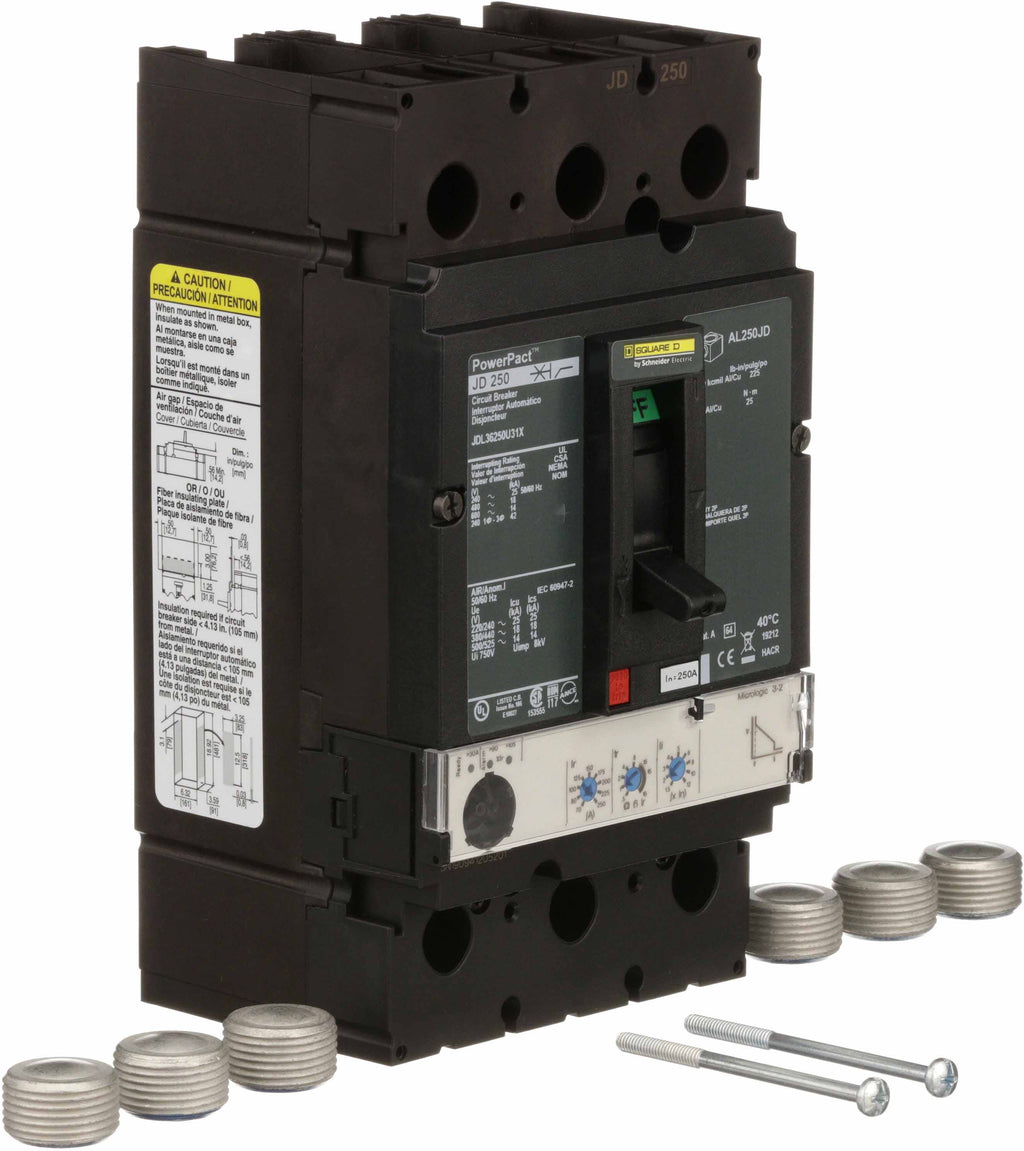

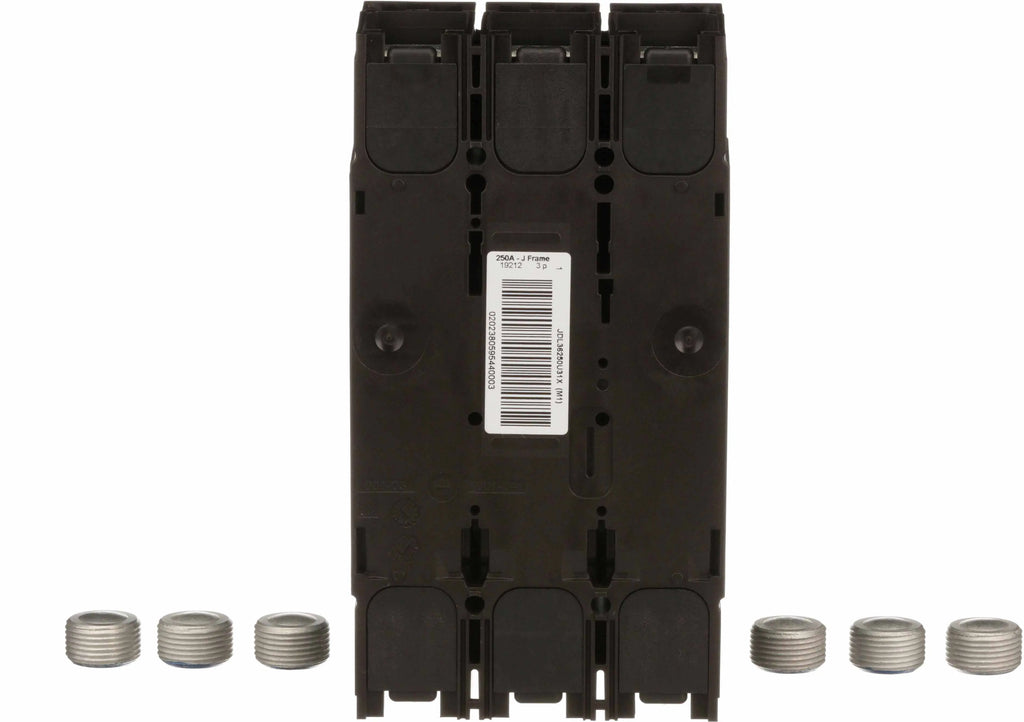

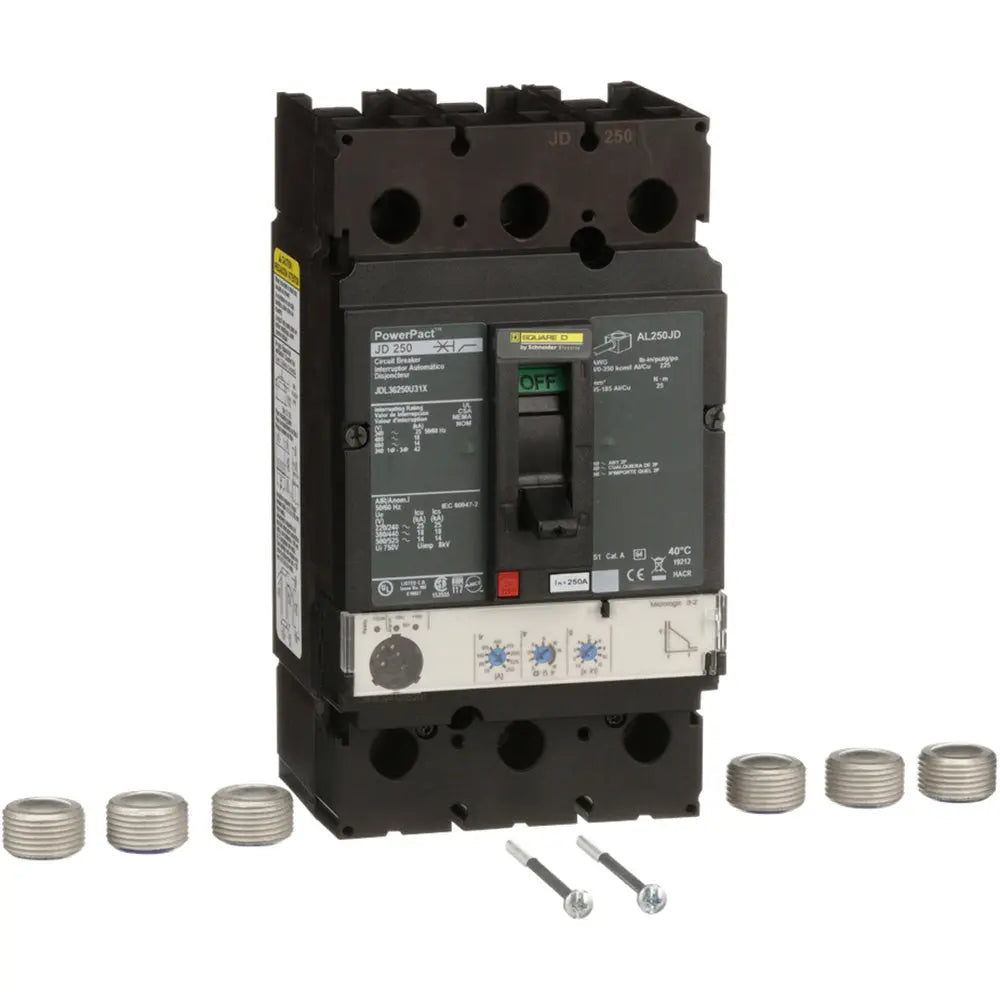

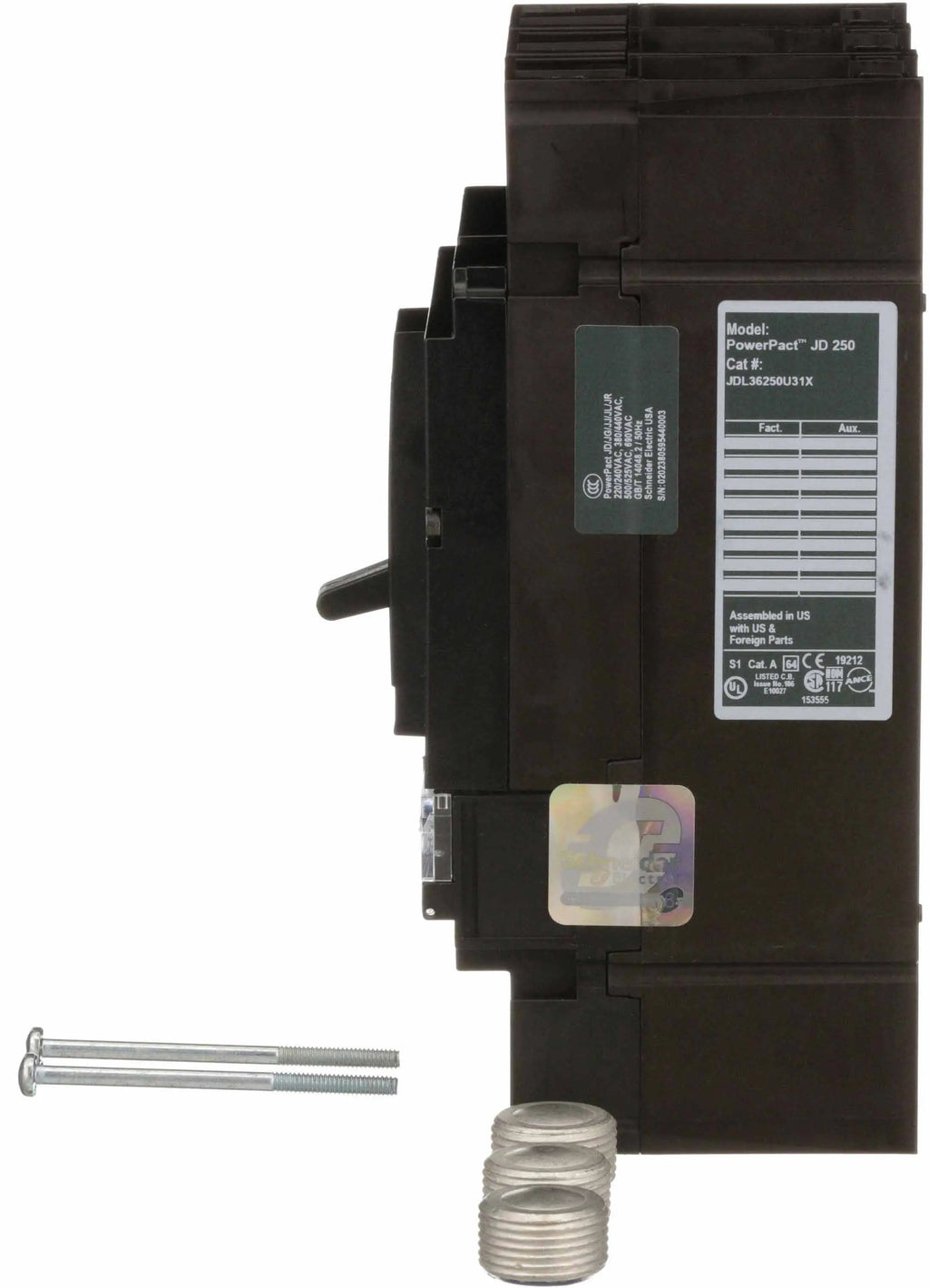

JDL36250U31X - Square D 250A 600V 3-Pole Molded Case Circuit Breaker Powerpact JDL Frame

JDL36250U31X

JDL36250U31X is a Square D 3-pole molded case circuit breaker with 250 Amp rating and 600 Volt capacity designed for Powerpact JDL frame applications.This circuit breaker features a solid state electronic trip unit with Micrologic 3.2 technology providing long-time and instantaneous (LI) protection functions. It supports unit mount lug installation with line and load side lug connections. The breaker has an interrupting rating of 18kA at 480V and 25kA at 240V, suitable for heavy-duty industrial use. It is UL 489 listed and meets CE, CSA, CCC, and IEC certifications.

Key Specifications
• Amperage: 250A
• Voltage: 600V AC
• Poles: 3
• Frame Type: Powerpact JDL
• Trip Unit: Electronic Micrologic 3.2 (LI)
• Interrupt Rating: 25kA @ 240V, 18kA @ 480V, 14kA @ 600V
• Mounting Type: Unit mount lug
• Connection: Line and load side lug terminals
• Protection: Solid state, current limiting
• Phase: 3
• Certifications: UL 489, CE, CSA, CCC, IEC
• Dimensions (HxWxD): 7.52" x 4.09" x 3.39"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDL36250U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901746072
• GTIN : 00785901746072
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.161
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
