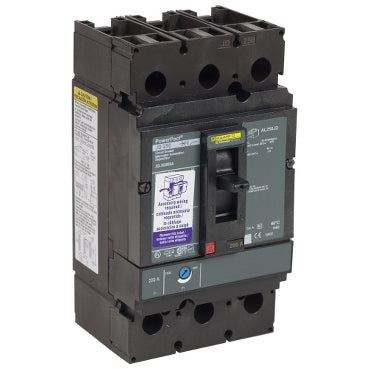

JDL36250SA - Square D PowerPacT J 250A 3-Pole 600V Thermal Magnetic Circuit Breaker

JDL36250SA

JDL36250SA is a 3-pole, 600 volt, 250 amp rated molded case circuit breaker from Square D with thermal-magnetic trip protection and an interrupting capacity of 14kA at 600VAC. This PowerPacT J-frame breaker features feed-thru lug connections suitable for both line and load side applications, making it ideal for reverse-fed installations in industrial and commercial power distribution systems. Key Specifications

• Part Number: JDL36250SA
• Manufacturer: Square D / Schneider Electric
• Poles: 3
• Amperage: 250A
• Voltage: 600VAC, 250VDC
• Frame Type: J-Frame
• Trip Type: Thermal-Magnetic
• Interrupting Capacity: 14kA at 600VAC
• Connection Type: Lug line / Lugs load (Feed-Thru)
• Continuous Current Rating: 80%
• Dimensions: 7.52 inches H x 4.12 inches W x 5 inches D
• Weight: 5.29 lbs
• Mounting: Panel Mount

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 110/130Vac shunt trip

Specifications

• Part Number: JDL36250SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : J
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901946847
• GTIN : 00785901946847
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
