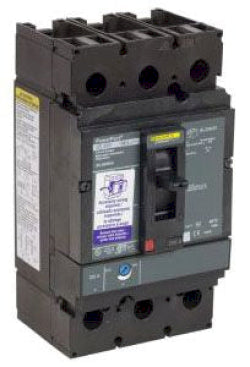

JDL36200AALC - Schneider Electric PowerPact J Frame 200A 600V 3 Pole Circuit Breaker Thermal Magnetic

JDL36200AALC

JDL36200AALC is a Schneider Electric PowerPact J Frame circuit breaker rated for 200 amps, 600 volts, and 3 poles with thermal-magnetic trip technology.This circuit breaker features a unit mount design with lug connections suitable for AWG 3/0 to 350 kcmil aluminum or copper conductors. It has a breaking capacity of 18 kA at 480 VAC and 14 kA at 600 VAC, making it suitable for industrial and commercial power distribution applications. The breaker is UL 489 listed and meets multiple certifications including CSA, NOM, IEC CCC, UKCA, and CE. It offers a continuous current rating of 80% and magnetic hold and trip currents of 1000 A and 2000 A respectively.

Key Specifications
• Amperage: 200 A
• Voltage Rating: 600 V AC / 250 V DC
• Number of Poles: 3 (3P)
• Mounting Type: Unit Mount
• Interrupt Rating: 18 kA @ 480 V AC, 14 kA @ 600 V AC
• Trip Unit: Thermal-Magnetic
• Frame/Series: PowerPact J Frame
• Electrical Connection: Lugs (Load and Line)
• AWG Range: 3/0 to 350 kcmil Aluminum/Copper
• Certifications: UL 489, CSA, NOM, IEC CCC, UKCA, CE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JDL36200AALC
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDL
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Protection : Thermal Magnetic



Product Data

• Weight : 7
• Certification : UL
