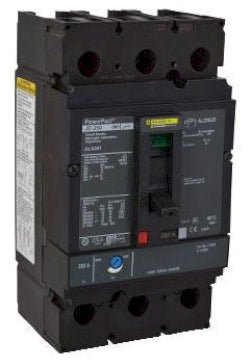

JDL36225T - Square D Powerpact J-Frame 3 Pole 225A 600V Molded Case Circuit Breaker 18kA@480V

JDL36225T

JDL36225T is a Square D Powerpact J-Frame molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial power distribution systems. This 3 pole, 225A, 600V breaker features a thermal-magnetic trip unit and is suitable for unit mount applications with line and load side lug terminals.Engineered for durability and safety, the JDL36225T provides overload and short-circuit protection with a standard interrupting capacity. It is UL 489 listed and compatible with a wide range of terminal wire sizes, making it ideal for use in panelboards and switchgear.

• Part Number: JDL36225T
• Manufacturer: Square D
• Series: Powerpact J-Frame
• Poles: 3
• Amperage: 225A
• Voltage: 600VAC
• Interrupt Rating: 18kA @ 480V
• Mounting Type: Unit Mount
• Terminal Type: Lug Line / Lug Load
• Wire Range: 4 AWG to 4/0 AWG
• Protection Type: Thermal-Magnetic
• Certifications: UL 489 Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDL36225T
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDL
• Voltage : 600
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901533665
• GTIN : 00785901533665
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
