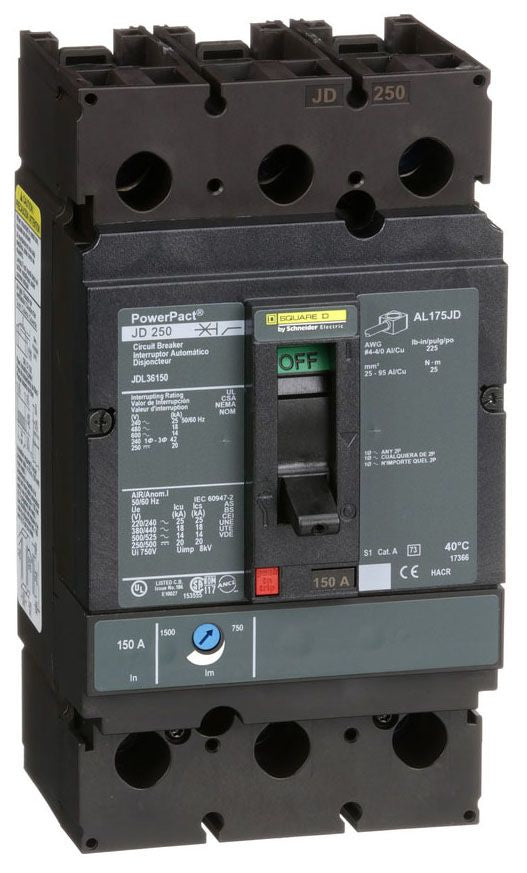

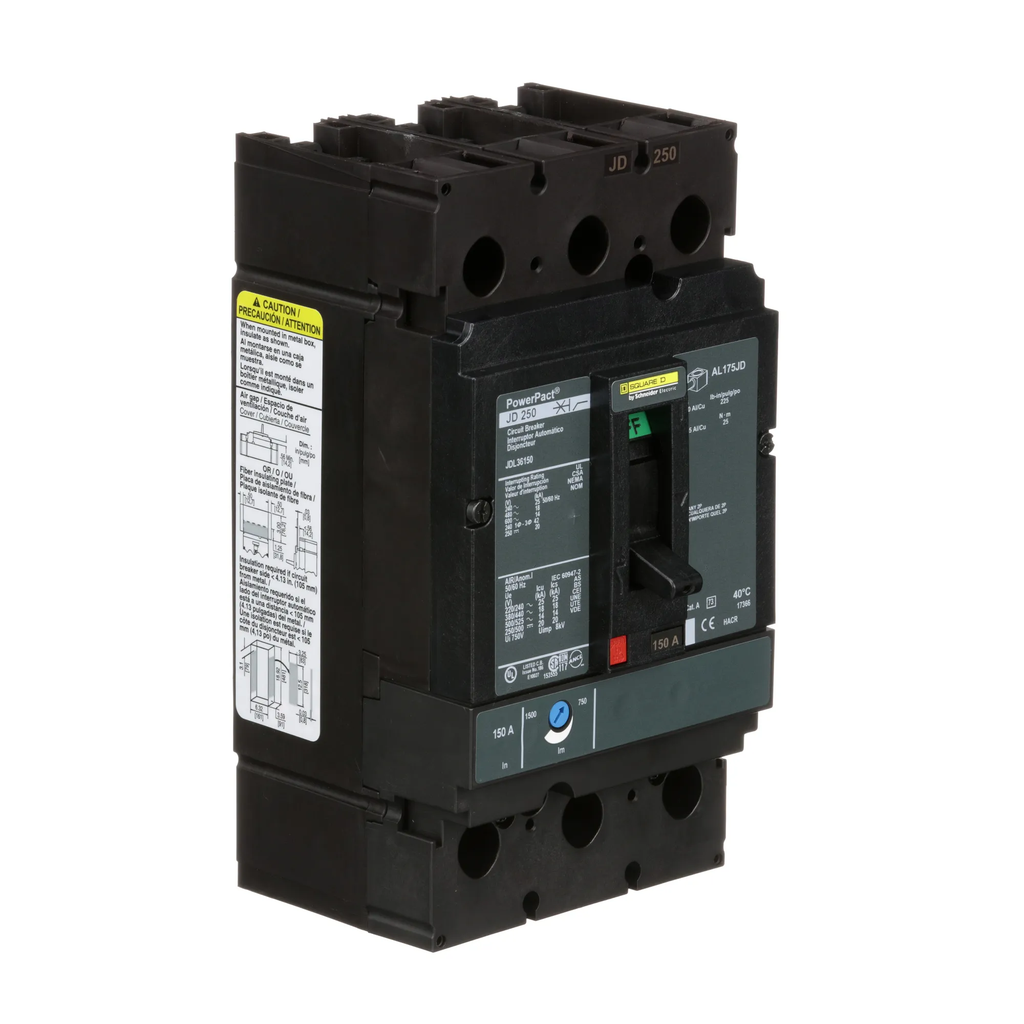

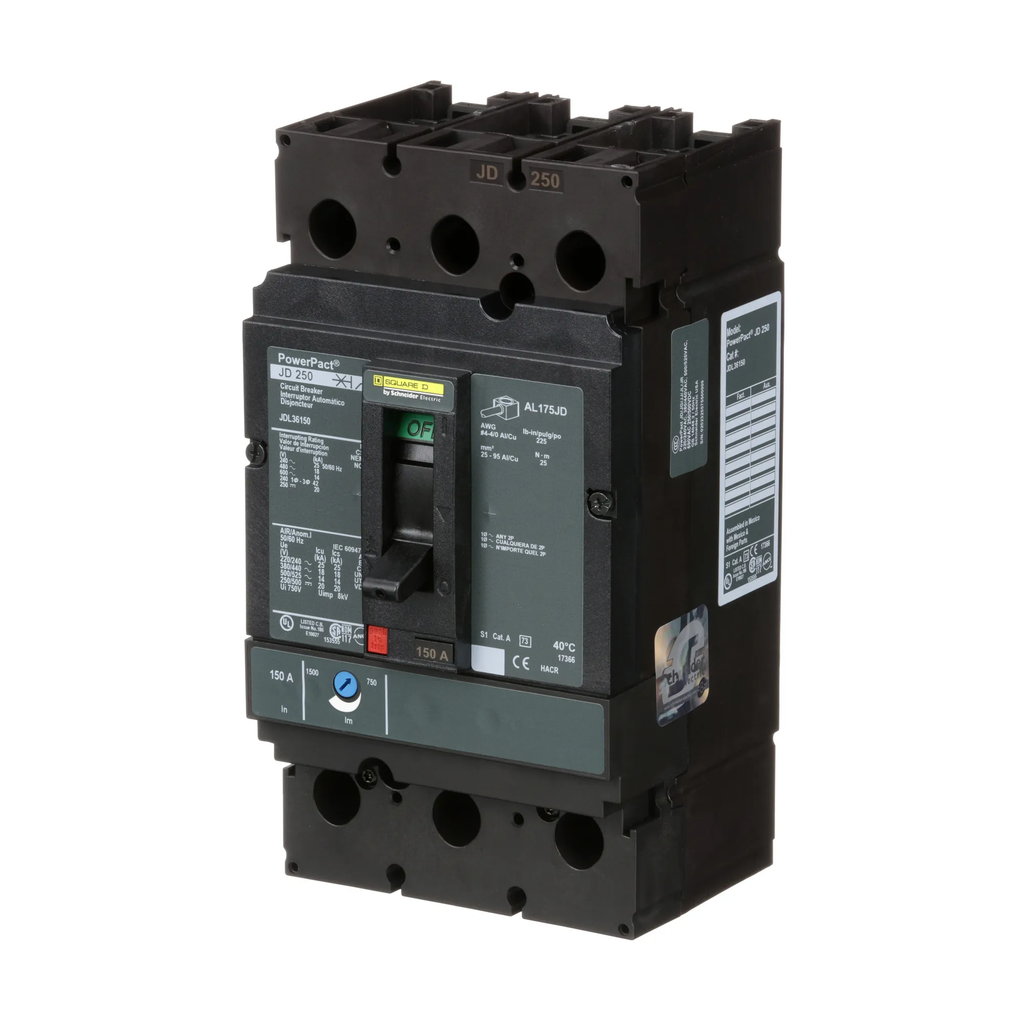

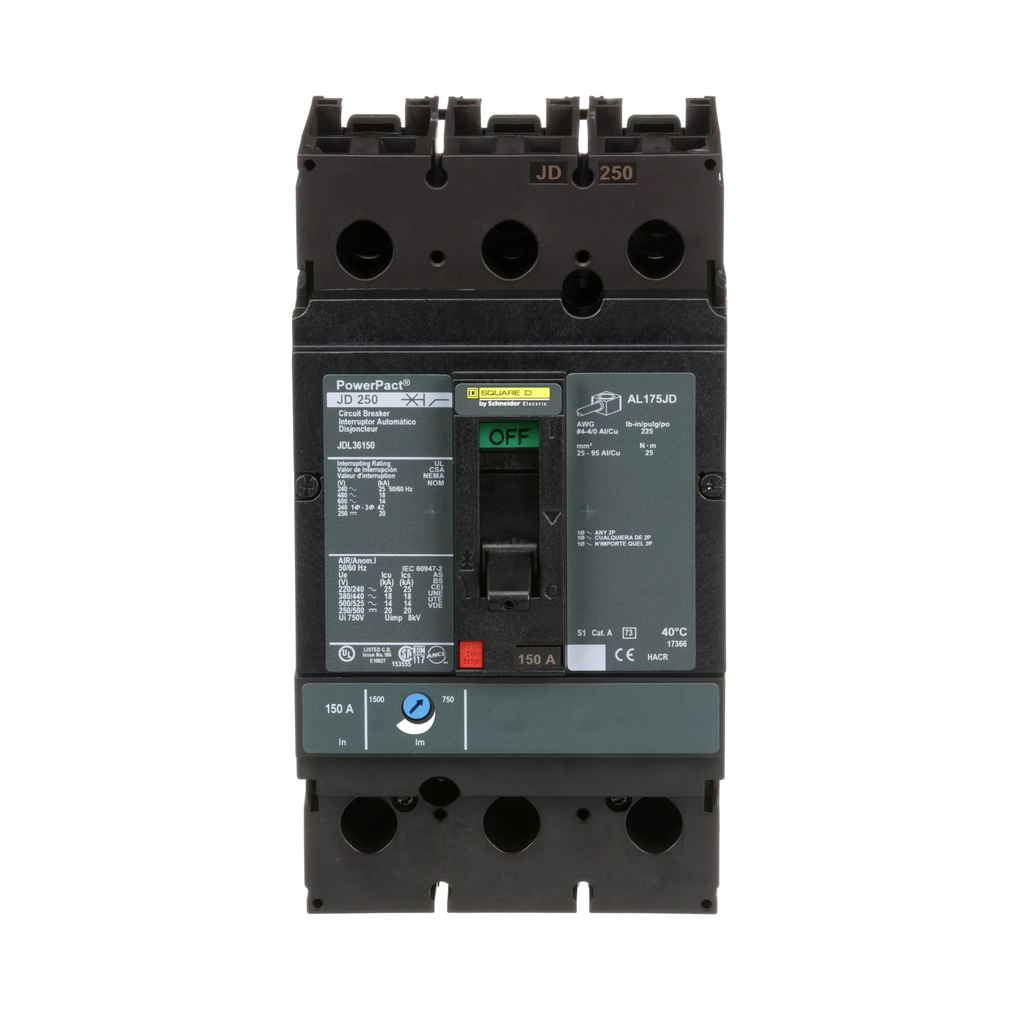

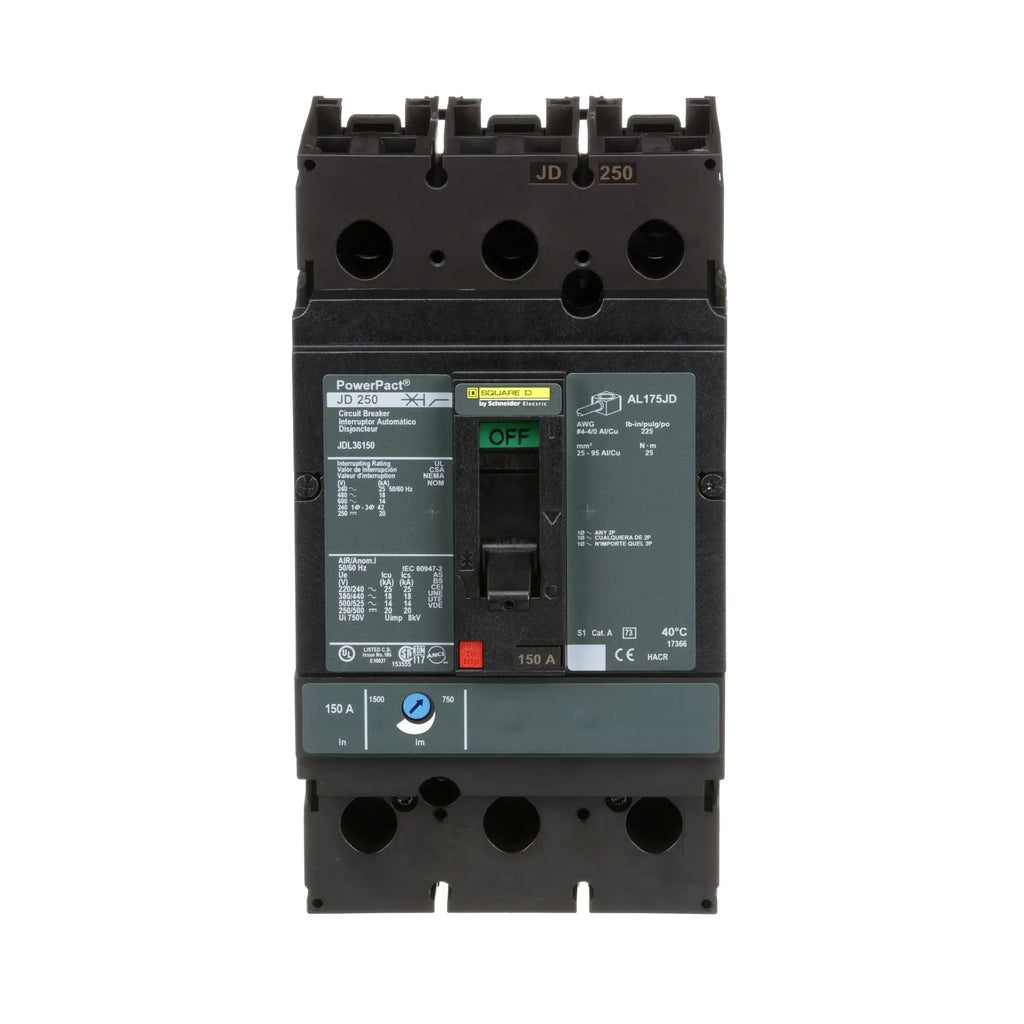

JDL36150 - Square D 150A 600V 3 Pole Powerpact J Molded Case Circuit Breaker Thermal Magnetic

JDL36150

JDL36150 is a Square D Powerpact J-frame molded case circuit breaker rated for 150 amps and 600 volts with thermal magnetic trip technology.This 3 pole circuit breaker features a 14kA interrupt rating at 600VAC, lug line/load connections, and 80% continuous current rating. It includes long-time and instantaneous (LI) trip functions, suitable for overload and short circuit protection. The breaker is UL, CSA, and CE certified and designed for unit mount lug installation.

• Amperage: 150A
• Voltage: 600VAC
• Poles: 3
• Frame Type: Powerpact J (JDL)
• Trip Unit: Thermal Magnetic with LI functions
• Interrupt Rating: 14kA @ 600VAC
• Mounting Type: Unit Mount Lug
• Connection: Lug line/load
• Continuous Current Rating: 80%
• Certifications: UL, CSA, CE

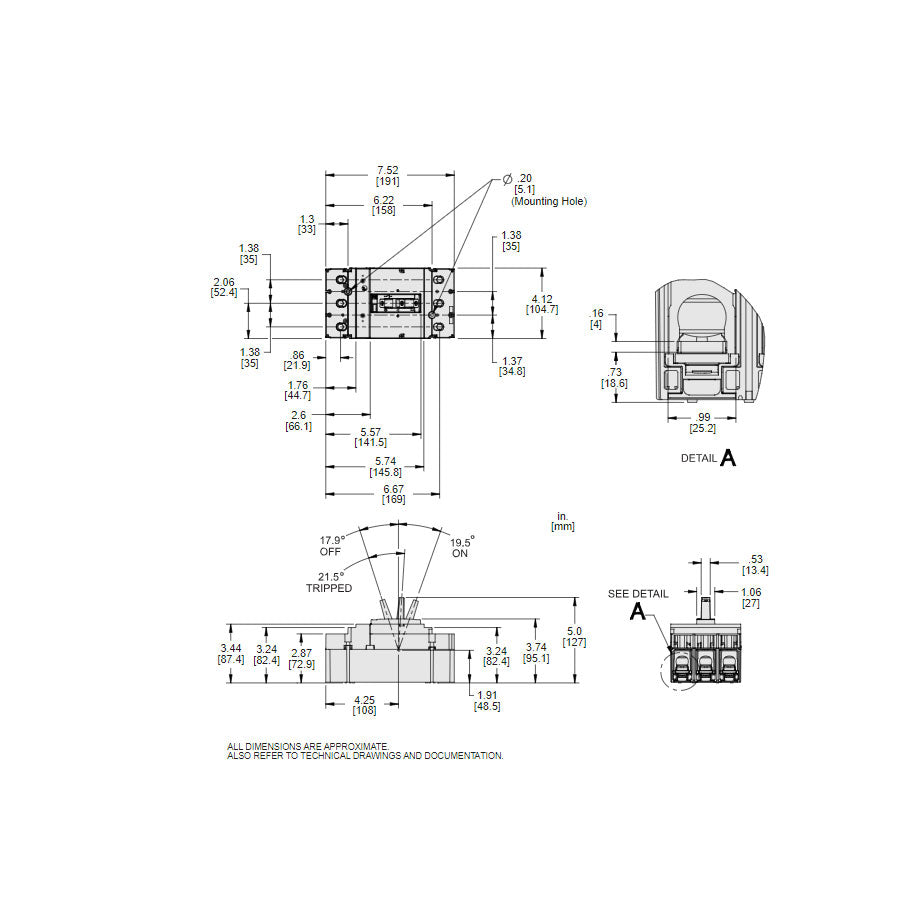

• Dimensions: 7.52" H x 4.12" W x 5" D
• Weight: Approx. 5.3 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDL36150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDL
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/JD
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3 AWG Max. Wire Size 350 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901955832
• GTIN : 00785901955832
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.85 lb
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
