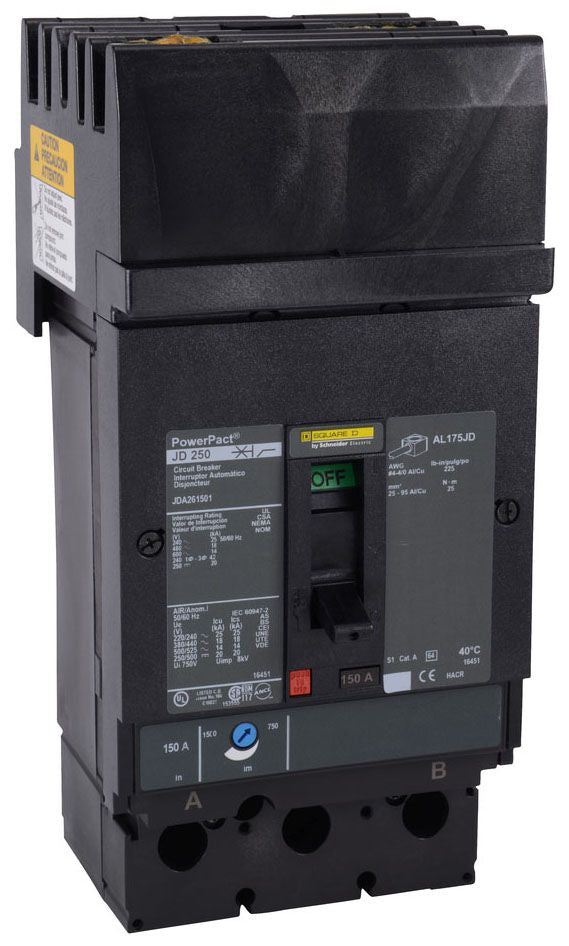

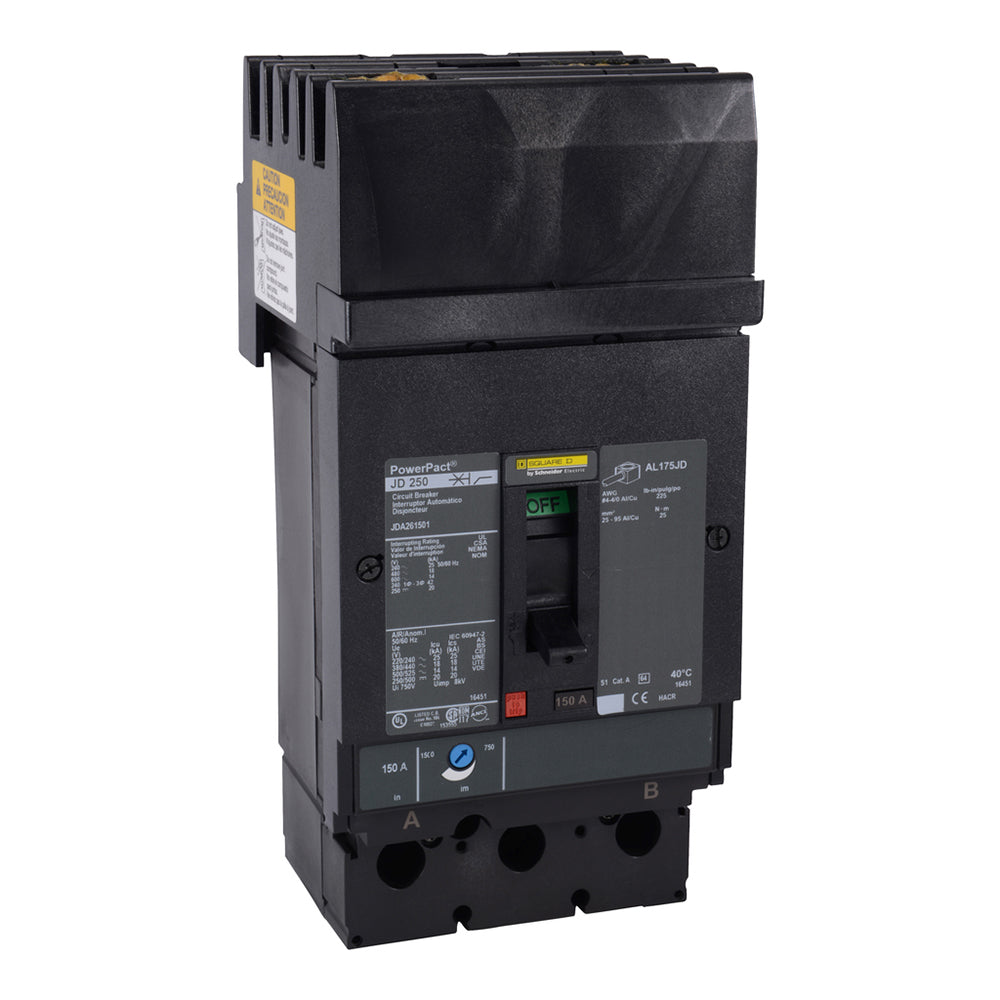

JDA262504 - Square D PowerPact J-Frame 250A 600V 2P Thermal Magnetic Circuit Breaker I-Line Plug-In 18kA@480V

JDA262504

JDA262504 is a Square D PowerPact J-Frame 250A 2-pole circuit breaker designed for I-Line plug-in panelboards, providing reliable thermal magnetic protection for industrial and commercial power distribution applications.Engineered for durability and safety, the JDA262504 breaker features a 600V AC rating, 250A continuous current, and an interrupt rating of 18kA at 480V. It is compatible with I-Line style plug-in mounting and is suitable for use in 600V systems with thermal magnetic trip technology. This breaker is UL Listed, CSA, CE, and CCC certified for broad compliance.

• Part Number: JDA262504
• Manufacturer: Square D
• Series/Frame: PowerPact J-Frame
• Amperage: 250A
• Voltage: 600V AC
• Poles: 2P
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 18kA @ 480V
• Series/Frame: PowerPact J-Frame
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, CSA, CE, CCC
• Application: Industrial, Commercial Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDA262504
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDA
• Voltage : 600
• Amperage : 250
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901558392
• GTIN : 00785901558392
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
