JDA261751 - Square D PowerPact J-Frame 175A 2-Pole 600VAC 14kAIC Molded Case Circuit Breaker

JDA261751

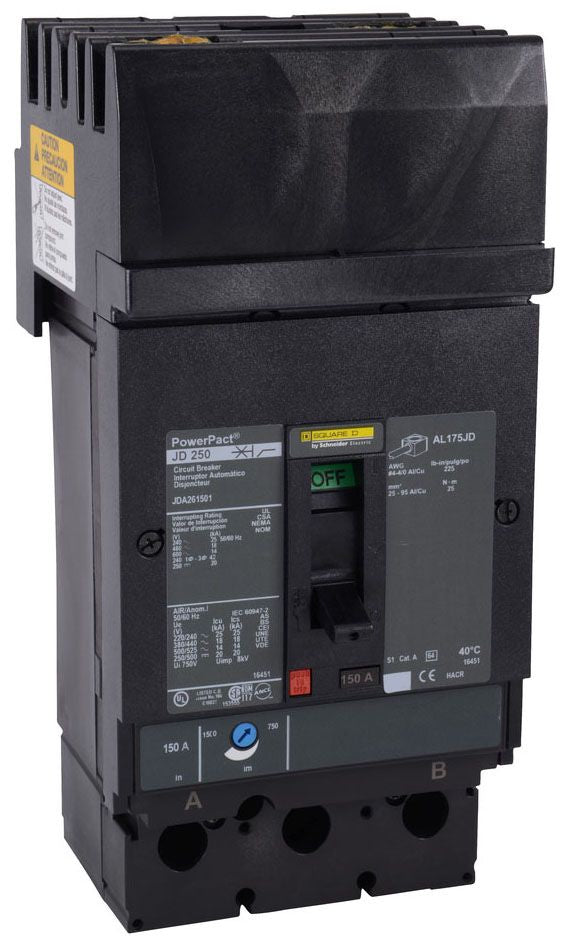

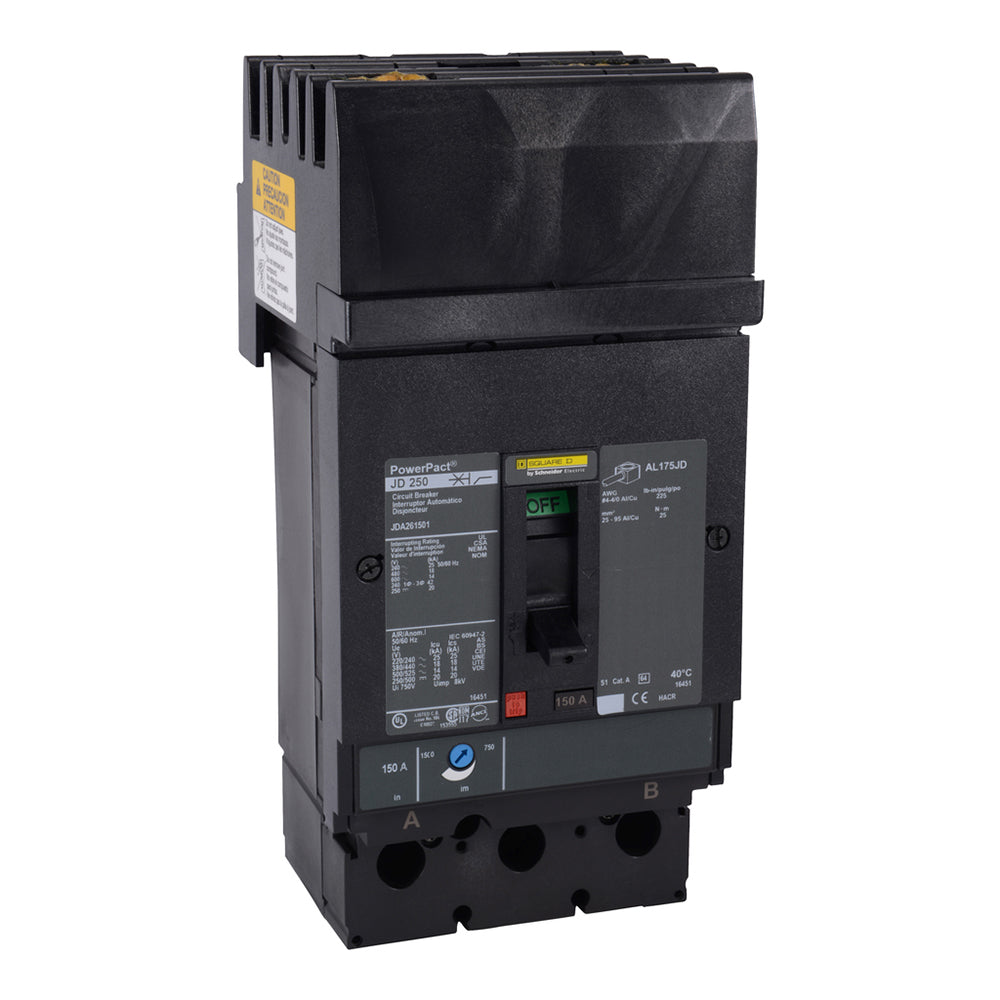

JDA261751 is a Square D PowerPact J-Frame molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This 2-pole breaker features a 175A rated current and a 600VAC voltage rating, making it suitable for a wide range of applications. It is an I-Line breaker with a fixed thermal and magnetic trip unit, providing effective overload and short-circuit protection. The breaker has a 14kA interrupting rating at 600VAC, ensuring safety in demanding environments. This Square D PowerPact JDA261751 circuit breaker is engineered for durability and ease of installation in standard power distribution panels. Its robust construction and precise trip characteristics make it a trusted choice for critical electrical protection needs.

• Part Number: JDA261751
• Manufacturer: Square D
• Series/Frame: PowerPact J-Frame
• Amperage: 175A
• Voltage: 600VAC
• Poles: 2
• Interrupt Rating: 14kAIC at 600VAC
• Mounting Type: I-Line
• Breaker Type: Molded Case
• Series: PowerPact JDA
• Trip Unit: Fixed Thermal and Magnetic
• Application: Industrial and Commercial Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDA261751
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDA
• Voltage : 600
• Amperage : 175
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901912170
• GTIN : 00785901912170
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.3
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
