JDA262254 - Square D PowerPact J 225A 2-Pole 600VAC 14kA I-Line Thermal-Magnetic

JDA262254

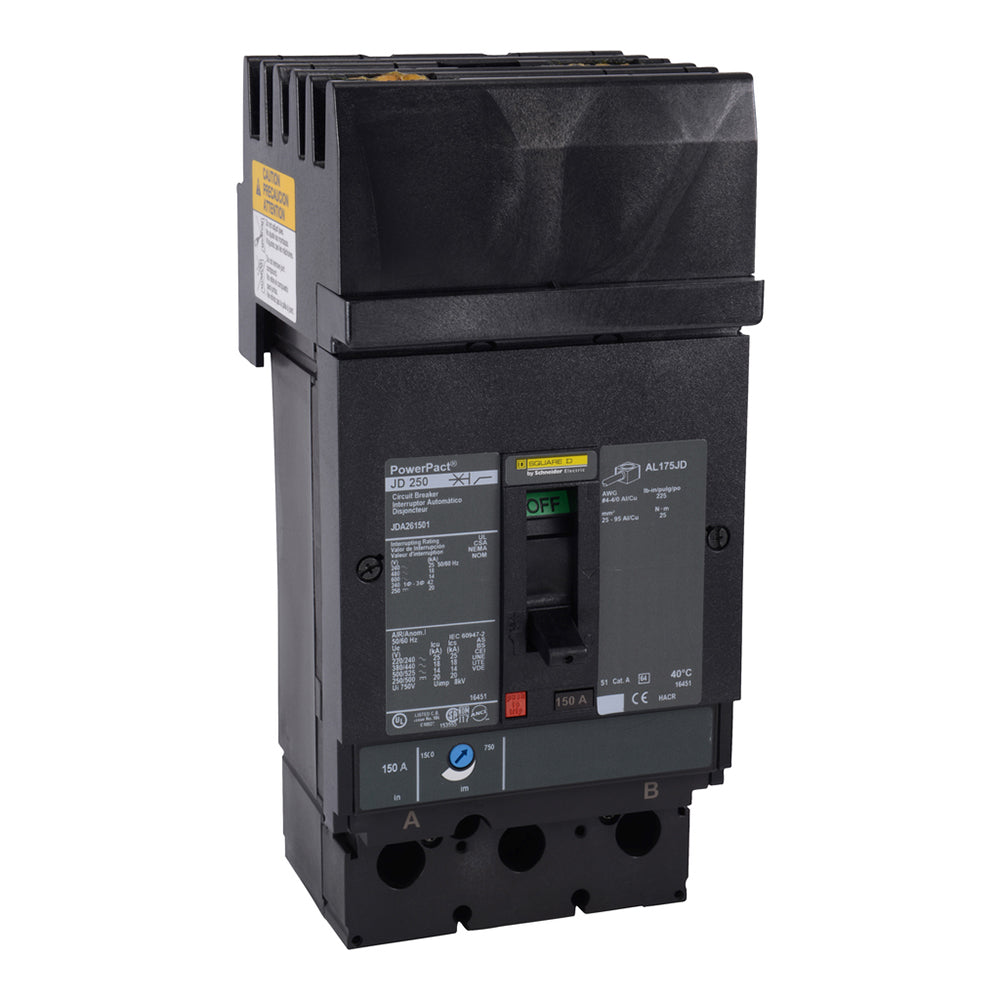

JDA262254 is a Square D PowerPact J-Frame molded case circuit breaker designed for I-Line panelboards and switchboards with thermal-magnetic trip protection.JDA262254 is a Square D PowerPact J-Frame molded case circuit breaker designed for I-Line panelboards and switchboards with thermal-magnetic trip protection. This current-limiting breaker delivers reliable overcurrent and short-circuit protection in industrial and commercial power distribution applications. The thermal-magnetic tripping mechanism provides fast response to fault conditions while the I-Line mounting configuration ensures compatibility with Class 611/612 panelboards and switchboards.

• Amperage: 225 A
• Voltage: 600 VAC
• Number of Poles: 2
• Interrupt Rating: 14 kA at 600 VAC
• Trip Unit: Thermal-Magnetic
• Mounting Type: I-Line
• Frame Size: J-Frame
• Current Limiting: Yes
• Certifications: UL, CSA, CE
• Wire Size: 3/0 AWG

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDA262254
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDA
• Voltage : 600
• Amperage : 225
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901754374
• GTIN : 00785901754374
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.3
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
