JDA262004 - Square D PowerPact J 200A 2-Pole 600VAC 14kA I-Line Circuit Breaker

JDA262004

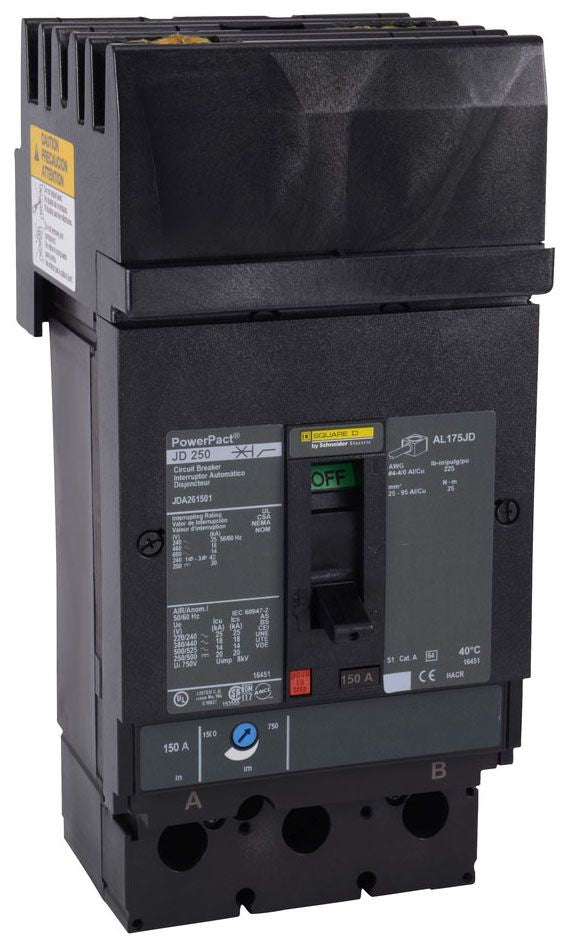

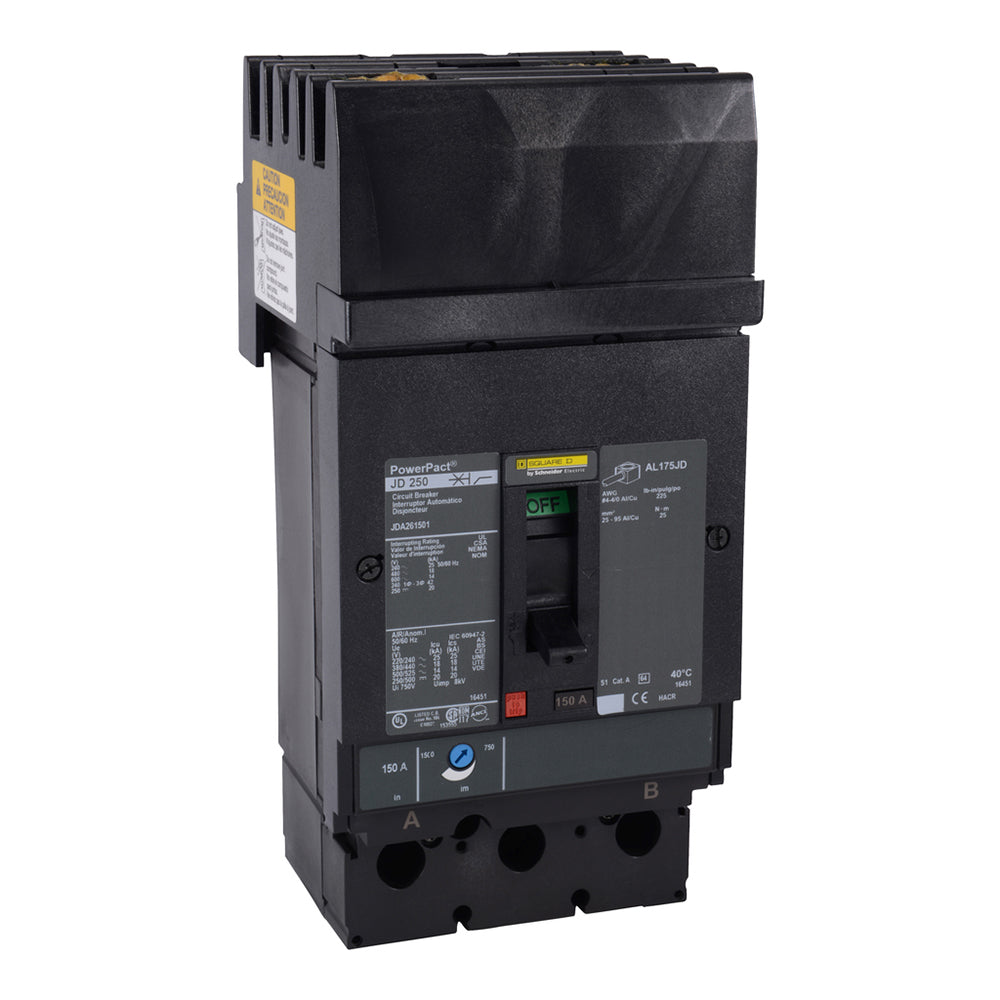

JDA262004 is a Square D PowerPact J molded case circuit breaker designed for overcurrent protection and switching on AC systems. This thermal-magnetic, current-limiting breaker delivers reliable performance in industrial and commercial applications with I-Line panelboard and switchboard compatibility.Key Specifications

• Manufacturer: Square D
• Part Number: JDA262004
• Frame: PowerPact J
• Amperage: 200A
• Poles: 2
• Voltage: 600VAC
• Interrupt Rating: 14kA at 600VAC
• Trip Unit: Thermal-Magnetic
• Mounting: I-Line
• Continuous Current: 80% BC
• Wire Size: 3/0 AWG
• Certifications: UL, CSA, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDA262004
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDA
• Voltage : 600
• Amperage : 200
• Phase : 1
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : D
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : BC

Product Data

• UPC : 785901912408
• GTIN : 00785901912408
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 6.36
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
