Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description

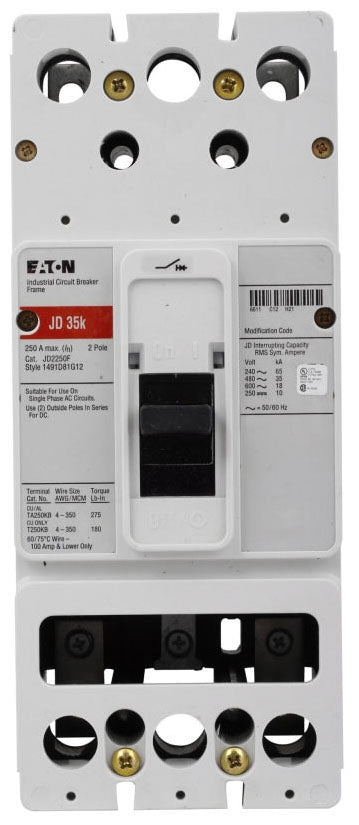

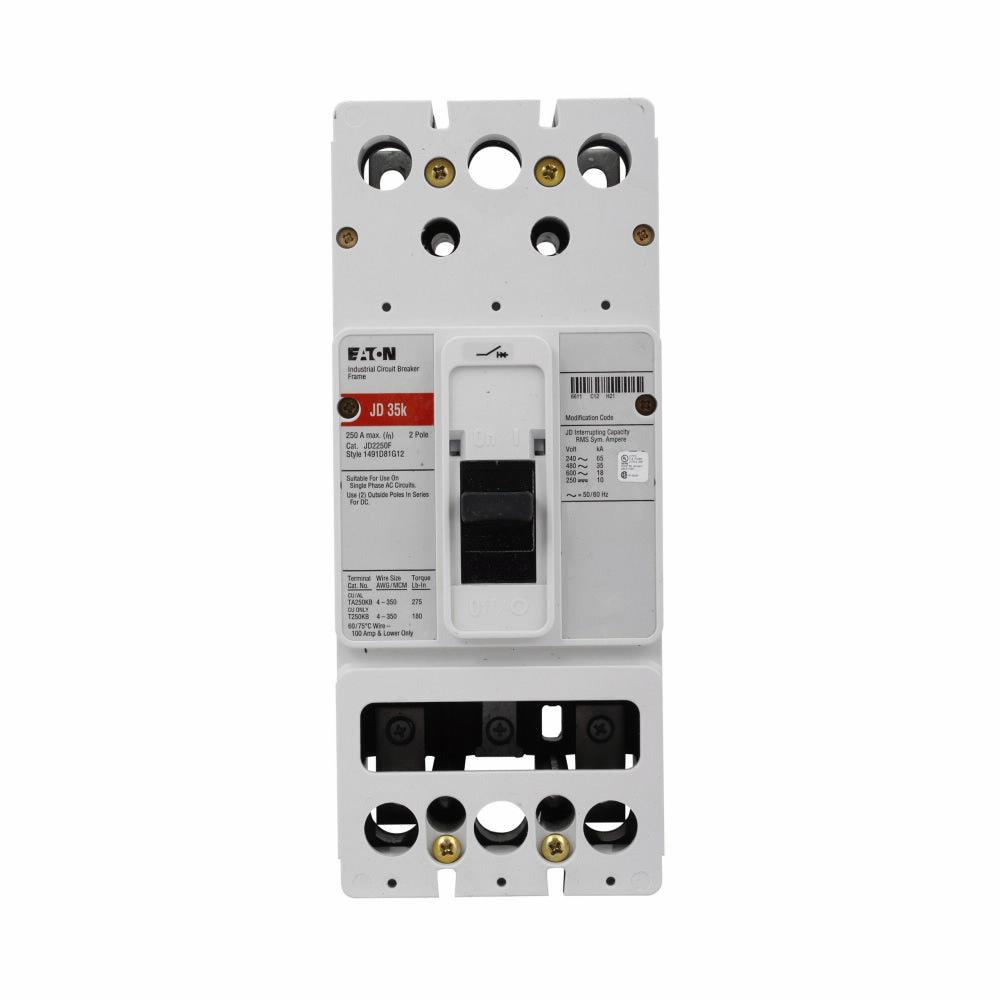

JD2250
JD2250 is an Eaton Series C complete molded case circuit breaker designed for panelboard, switchboard, motor control center, and busway applications. This J-frame breaker provides dependable branch circuit protection with fixed thermal and fixed magnetic trip units, delivering proven performance across industrial and commercial systems. JD2250 features bolt-on connection, two poles, and a 250-ampere rating at 600 Vac or 250 Vdc, with interrupt ratings of 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, and 18 kAIC at 600 Vac. The aluminum construction and 50/60 Hz frequency rating ensure compatibility with North American power distribution standards.
- Amperage: 250A
- Voltage: 600 VAC / 250 VDC
- Poles: 2
- Frame Type: JD (J-frame)
- Trip Unit: Fixed Thermal / Fixed Magnetic
- Connection Type: Bolt-on
- Interrupt Rating: 65 kAIC @ 240 VAC, 35 kAIC @ 480 VAC, 18 kAIC @ 600 VAC
- Frequency: 50/60 Hz
- Material: Aluminum
- UL Approved
Specifications
- Part Number: JD2250
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : JD
- Voltage : 600
- Amperage : 250
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : J Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679346082
- GTIN : 00786679346082
- Country of Origin : Dominican Republic
- Dimensions : 4.06 in x 10 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 0.01
- Certification : UL Listed
