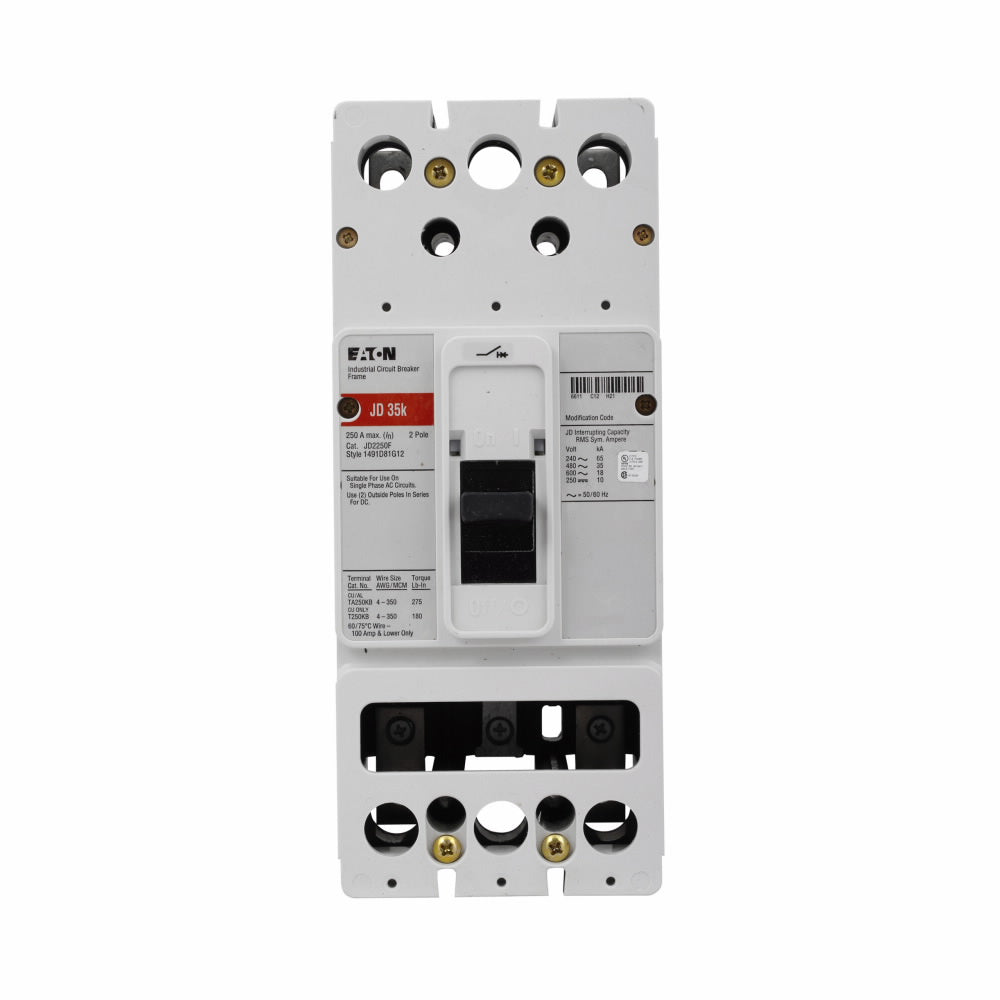

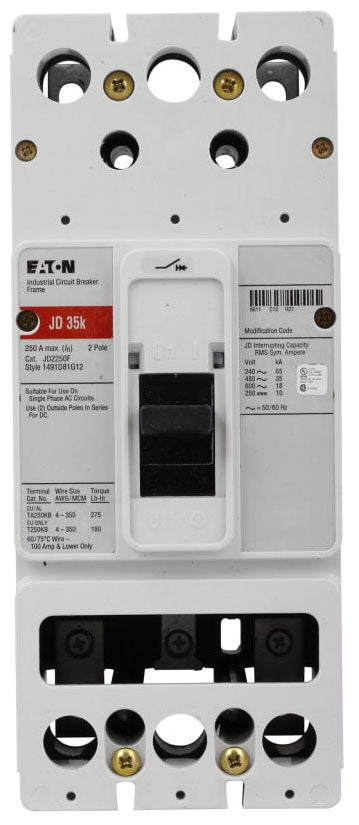

JD2200 - Eaton 200A 2-Pole 600V Series C Molded Case Circuit Breaker

JD2200

JD2200 is a 200 amp, 2-pole molded case circuit breaker from Eaton's Series C line designed for reliable circuit protection.This Eaton JD2200 breaker features a fixed thermal and magnetic trip unit, suitable for use at 600 Vac and 250 Vdc. It offers high interrupting ratings of 65 kA at 240 Vac, 35 kA at 480 Vac, and 18 kA at 600 Vac, ensuring robust protection in demanding electrical environments. The breaker is designed for fixed mounting and complies with industry standards for safety and performance.

• Amperage: 200A
• Voltage: 600 Vac, 250 Vdc
• Poles: 2
• Series/Frame: Series C (J-frame)
• Trip Unit: Fixed thermal and magnetic
• Interrupt Rating: 65 kA at 240 Vac
• Interrupt Rating: 35 kA at 480 Vac
• Interrupt Rating: 18 kA at 600 Vac
• Mounting Type: Fixed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JD2200
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : JD
• Voltage : 600
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : J Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679346068
• GTIN : 00786679346068
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 0.01
• Certification : UL Listed
