Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
JD2250F

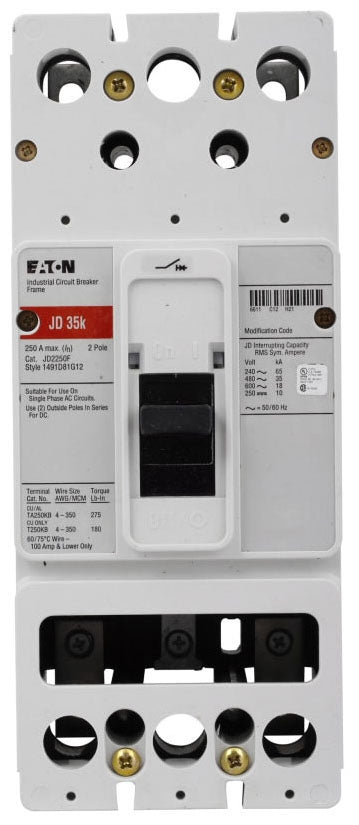

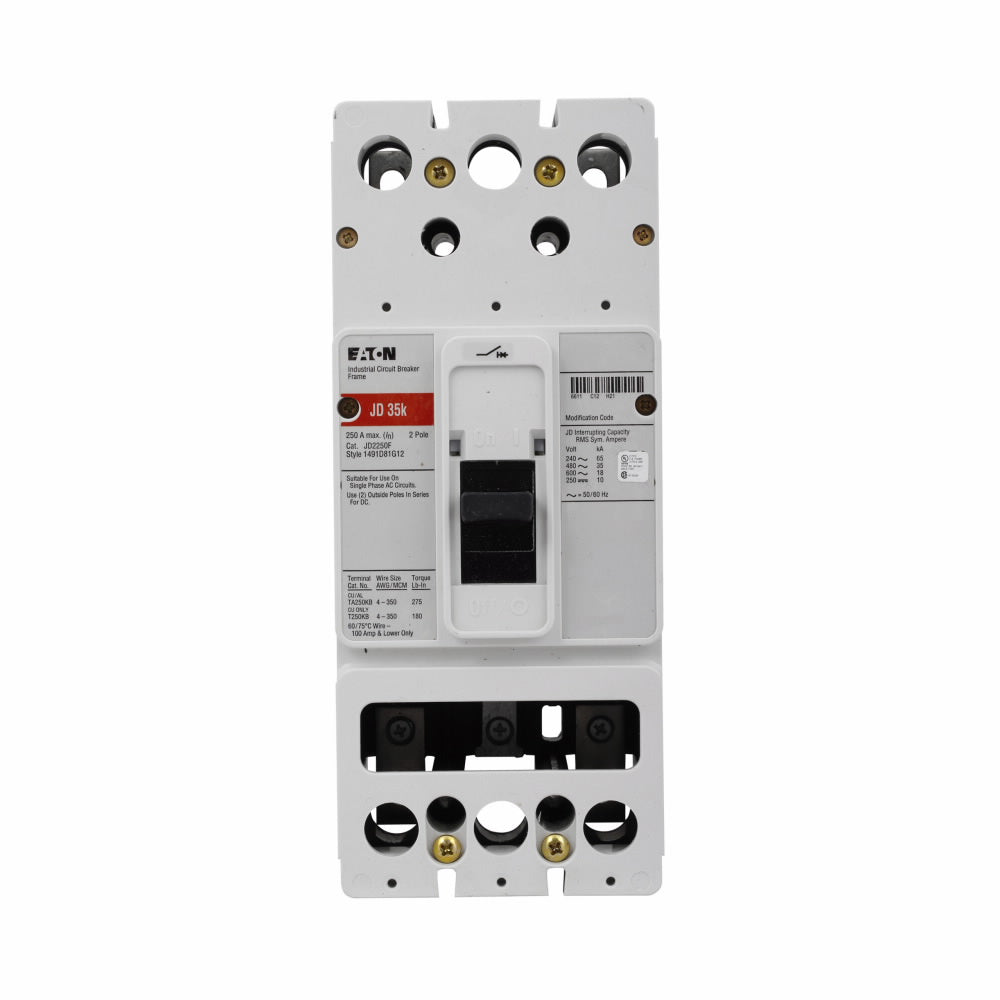

JD2250F is a 250 amp, 600 volt, 2 pole molded case circuit breaker from Eaton designed for bolt-on mounting.JD2250F features a fixed thermal and fixed magnetic trip unit with a 35kA interrupt rating at 480V AC, suitable for industrial and commercial power distribution applications. It is part of Eaton's JD series, frame C, providing reliable circuit protection with compliance to industry standards.
- Key Specifications
- Amperage: 250A
- Voltage Rating: 600 VAC, 250 VDC
- Number of Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 35kA at 480V AC
- Trip Unit: Fixed Thermal / Fixed Magnetic
- Series/Frame: JD Series, Frame C
- Certifications: Industry standard compliant
Additional Information
This item is Frame only as definded by the part number. That means it is only the circuit breaker frame, and no lugs or trip unit is included with the frame.
Specifications
- Part Number: JD2250F
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : JD
- Voltage : 600
- Amperage : 250
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : J Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679516362
- GTIN : 00786679516362
- Country of Origin : Dominican Republic
- Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 7.55
- Certification : UL Listed
