Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Auxiliary
Description
AAL2LPK

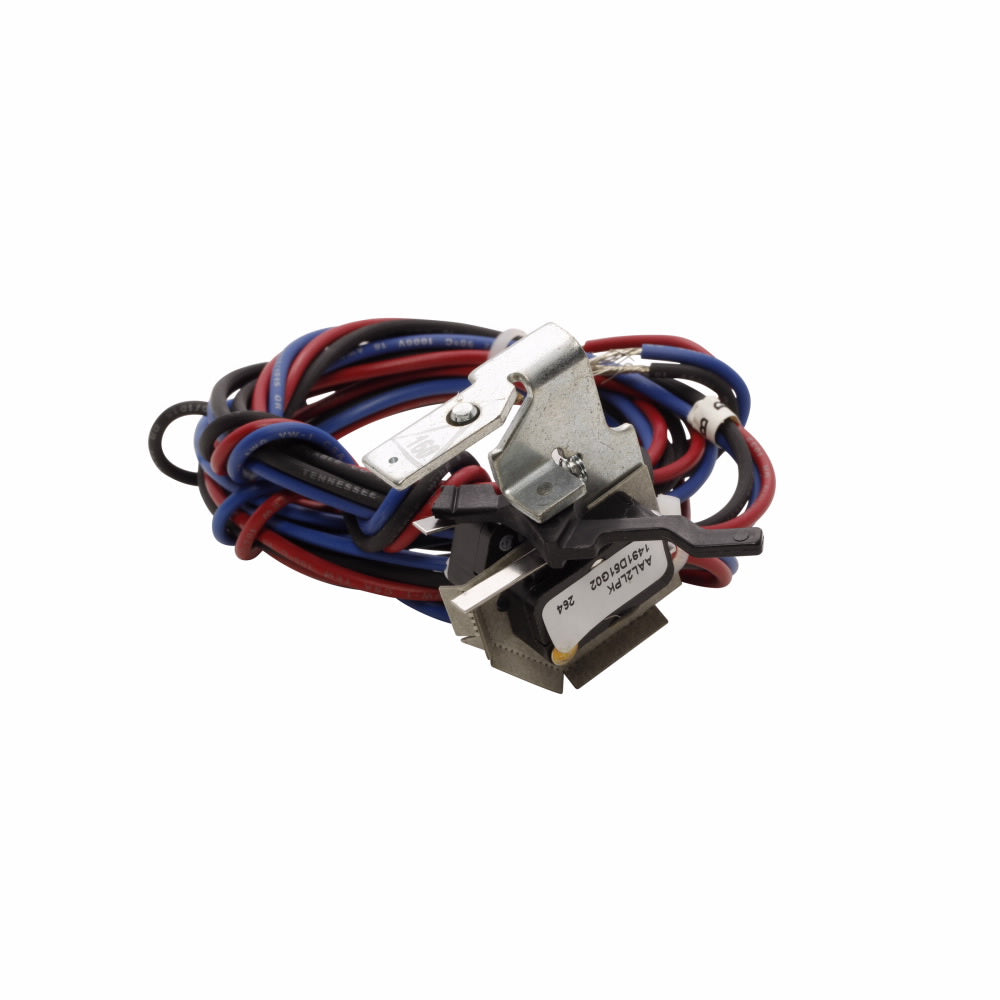

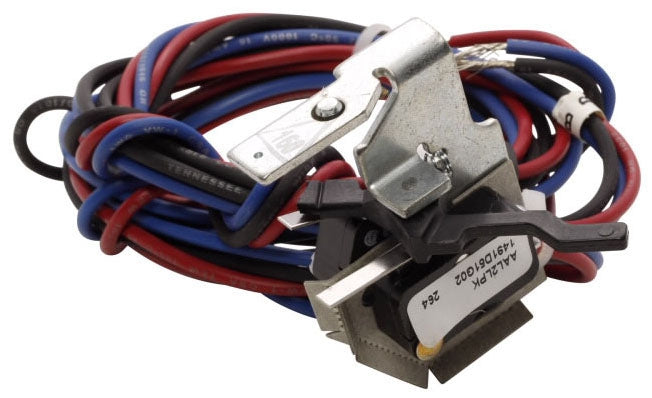

AAL2LPK is a Cutler Hammer auxiliary and alarm switch designed for J-frame molded case circuit breakers, providing reliable signaling and lockout functions.AAL2LPK combines an auxiliary switch and alarm switch in one unit, rated for 250 Amps and 600VAC, with pigtail lead connections. It is compatible with C Series J-frame and HMCP molded case circuit breakers, offering 1A-1B contact configuration for effective circuit status monitoring and alarm signaling.
- Manufacturer: Cutler Hammer (Eaton)
- Part Number: AAL2LPK
- Amperage Rating: 250 Amps
- Voltage Rating: 600VAC
- Contact Configuration: 1A-1B (Make-Break)
- Mounting Type: Field mounted
- Compatible with: C Series J-frame and HMCP molded case circuit breakers
- Connection Type: Pigtail leads
- Function: Auxiliary switch and alarm switch combination
- Interrupt Rating: Matches circuit breaker frame rating
- Certifications: UL 1066, UL 489, ANSI C37 compliant
Specifications
- Part Number: AAL2LPK
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Auxiliary
- Family : Series C
- Type : C
- Voltage : 600VAC
- Amperage : 250
- Connection : Pigtail Leads
- Configuration : 1A/1B
- Compatible Frames : JDB, JD, HJD, JDC
Product Data
- UPC : 786679554388
- GTIN : 00786679554388
- Country of Origin : Dominican Republic
- Dimensions : 5.5 in x 3 in x 3.3 in (Length/Depth x Height x Width)
- Weight : 0.35
- Certification : UL
