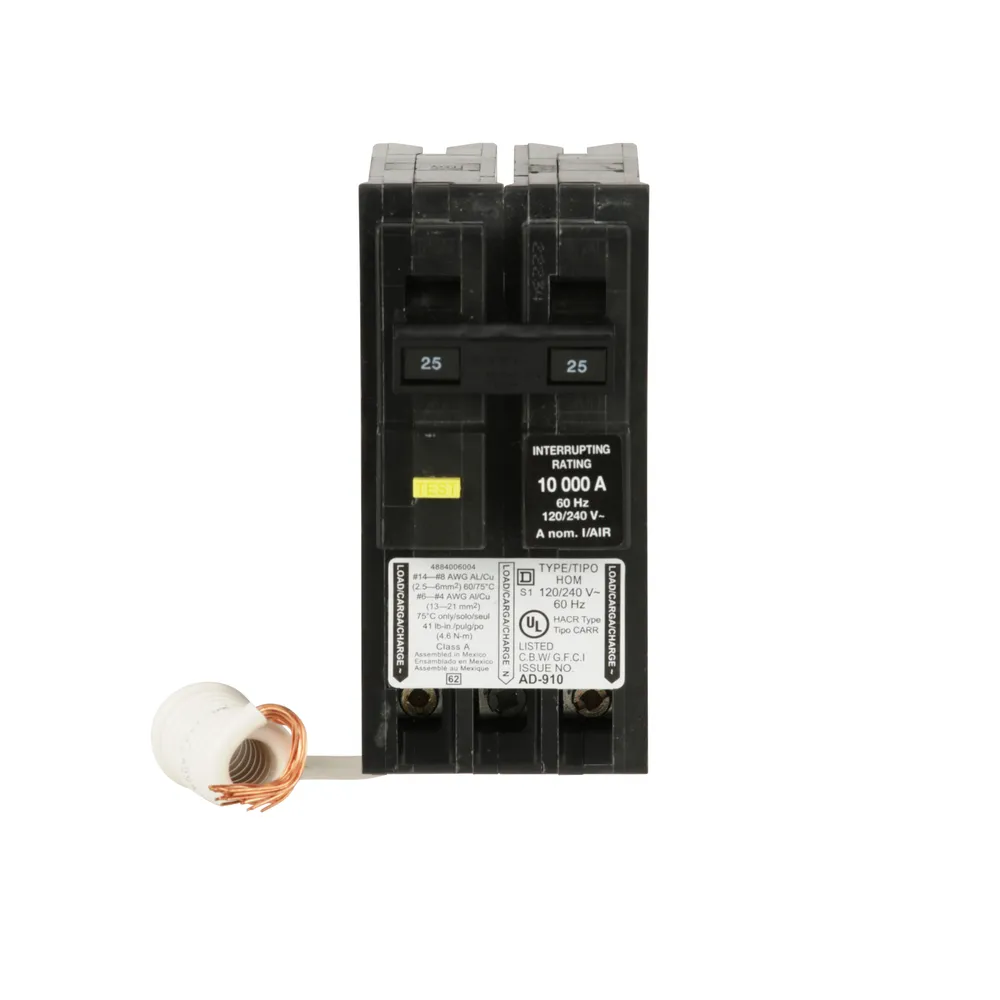

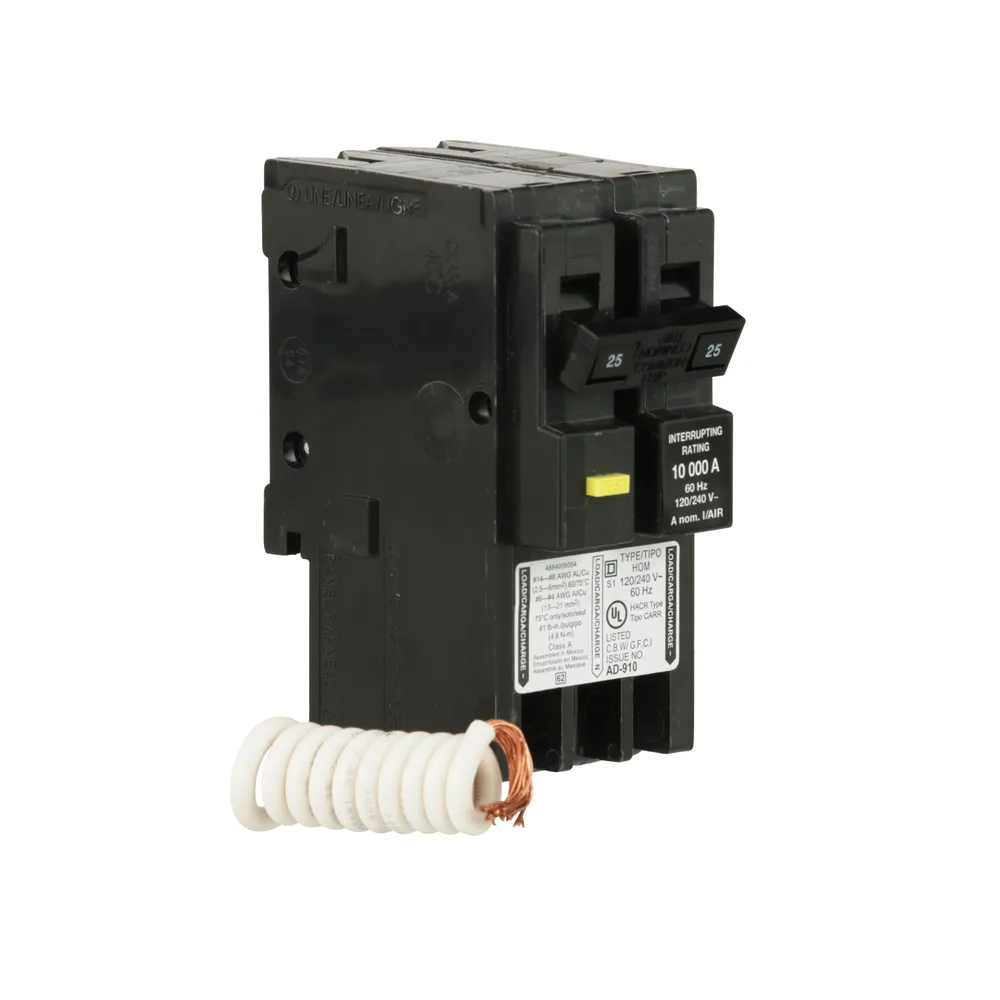

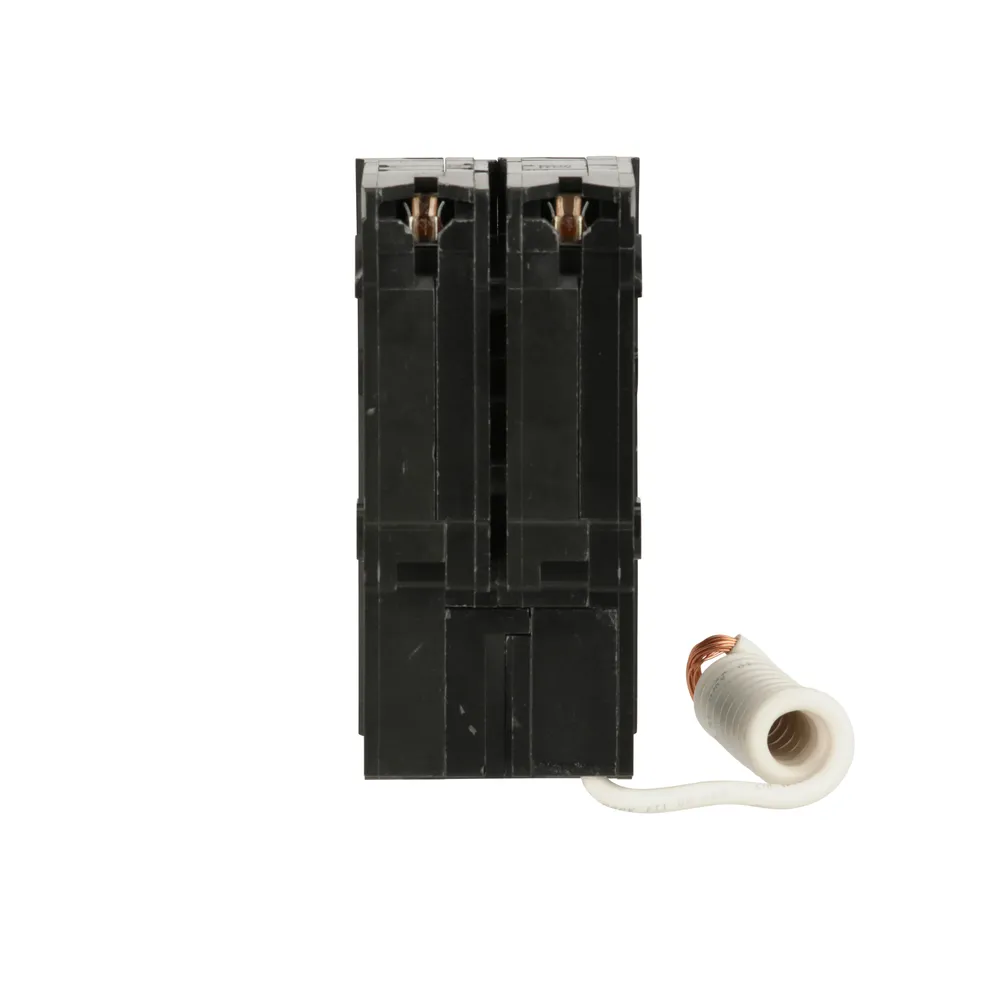

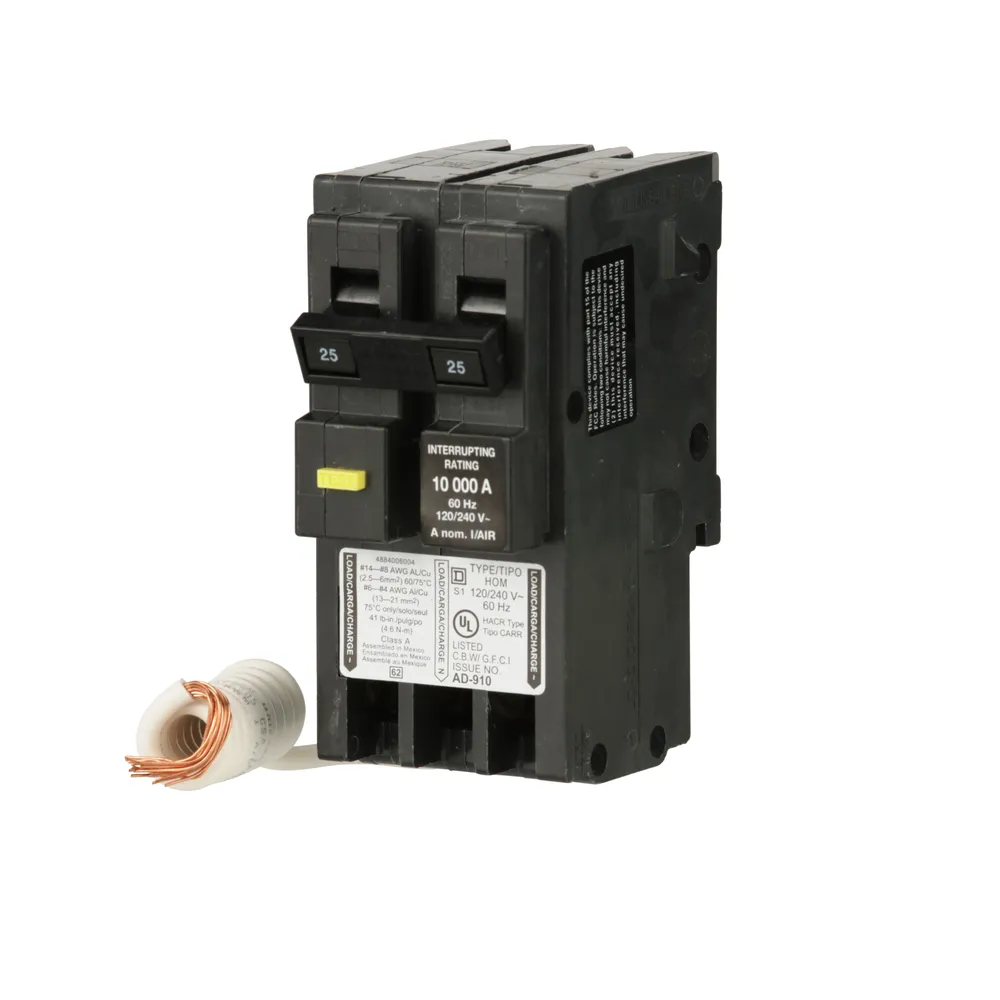

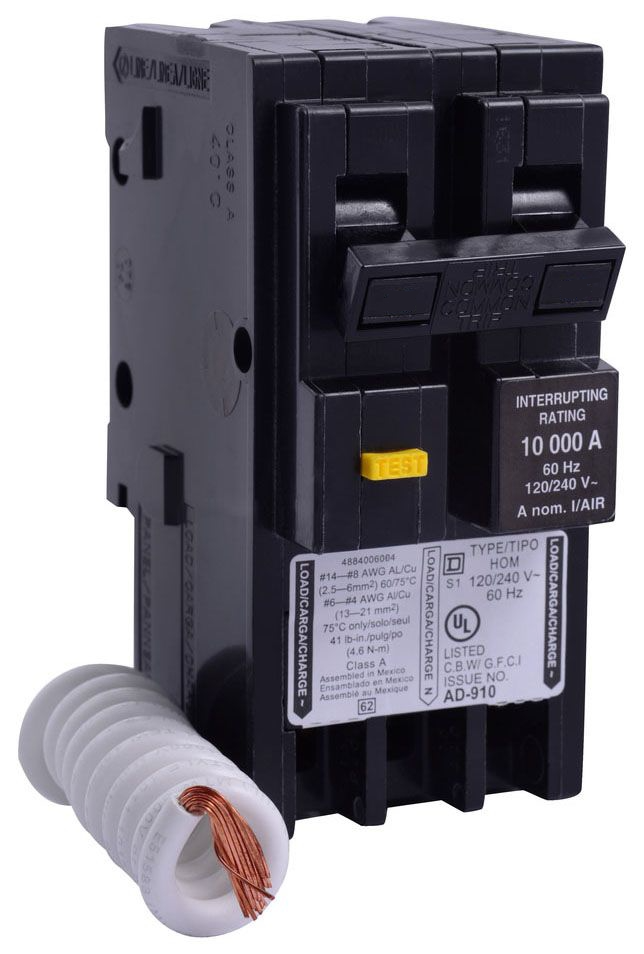

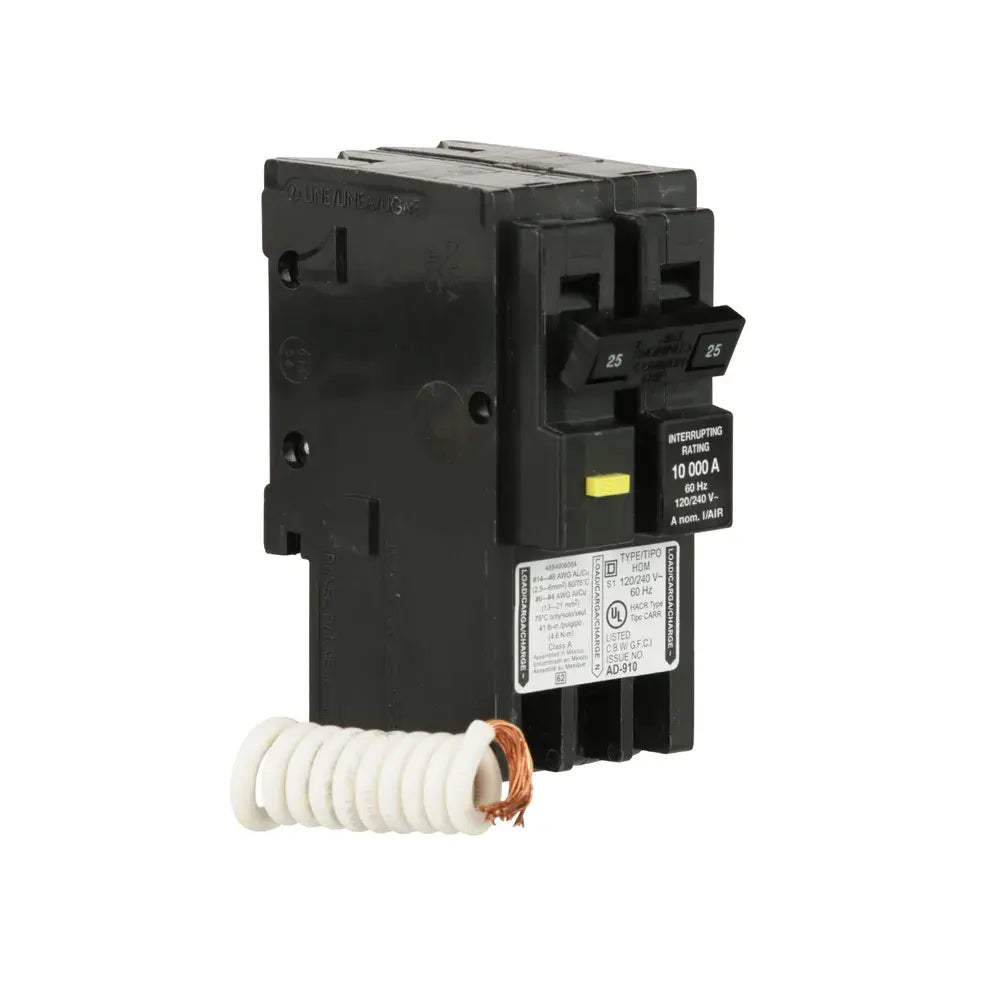

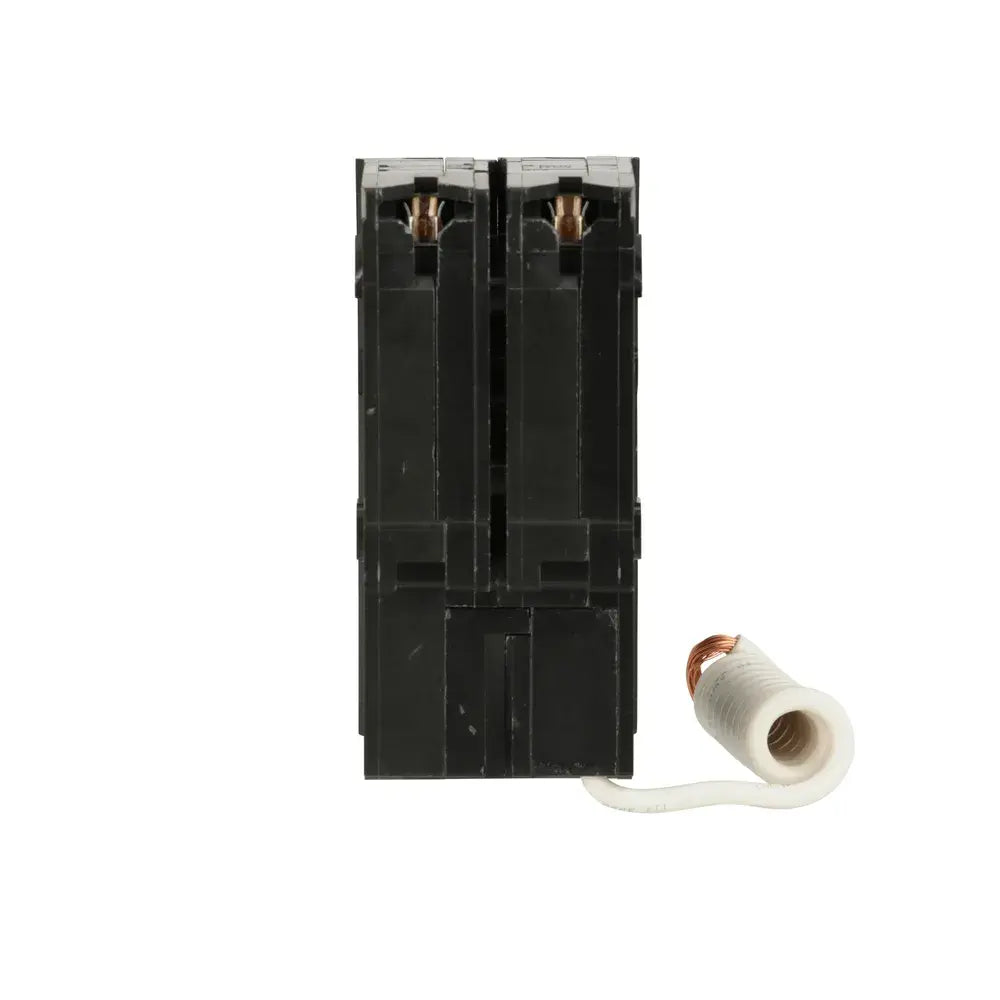

HOM225GFI - Square D 25 Amp 2 Pole 120/240 VAC 10 kA Plug-On Ground Fault Circuit Breaker

HOM225GFI

HOM225GFI is a Square D 25 Amp, 2 Pole, 120/240 VAC plug-on ground fault circuit breaker with a 10 kA interrupt rating.This thermal magnetic circuit breaker features common trip ground fault protection and is designed for use in Homeline load centers. It supports wire sizes 12 to 4 AWG for aluminum and 14 to 6 AWG for copper conductors. The breaker is UL listed, CSA certified, and HACR rated, suitable for residential, commercial, and industrial applications.

• Amperage: 25 Amp
• Voltage Rating: 120/240 VAC
• Poles: 2
• Interrupt Rating: 10 kA
• Mounting Type: Plug-On
• Wire Size: 12-4 AWG Aluminum, 14-6 AWG Copper
• Trip Unit: Thermal Magnetic with Ground Fault Protection
• Series/Frame: Homeline (HOM)
• Certifications: UL Listed, CSA Certified, HACR Rated
• Dimensions: 3.13" H x 2" W x 2.98" D
• Weight: 1.15 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM225GFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Type : HOM
• Voltage : 120/240
• Amperage : 25
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Screw Clamp
• Frame Size : 100A/HOM
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
• Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
• Protection : Thermal Magnetic
• Trip Type : Ground Fault

Product Data

• UPC : 785901303220
• GTIN : 00785901303220
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 1.16 lb
• Panel Type : Homeline Load Center
• Standards : CSA Certified, HACR, UL Listed
• Certification : CSA Certified, HACR, UL Listed
• Wire Size : AWG 12 to AWG 4 Aluminum, AWG 14 to AWG 6 Copper
