Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
HOM220EPD

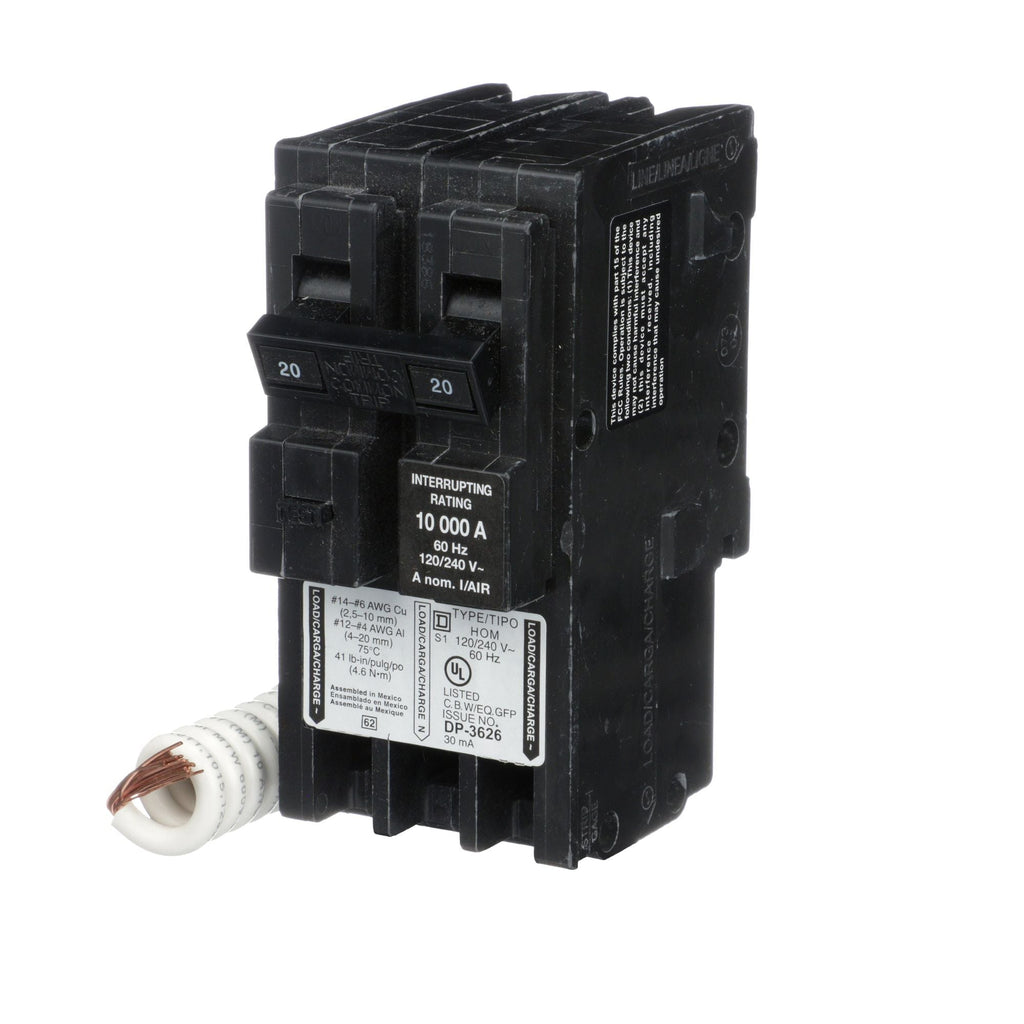

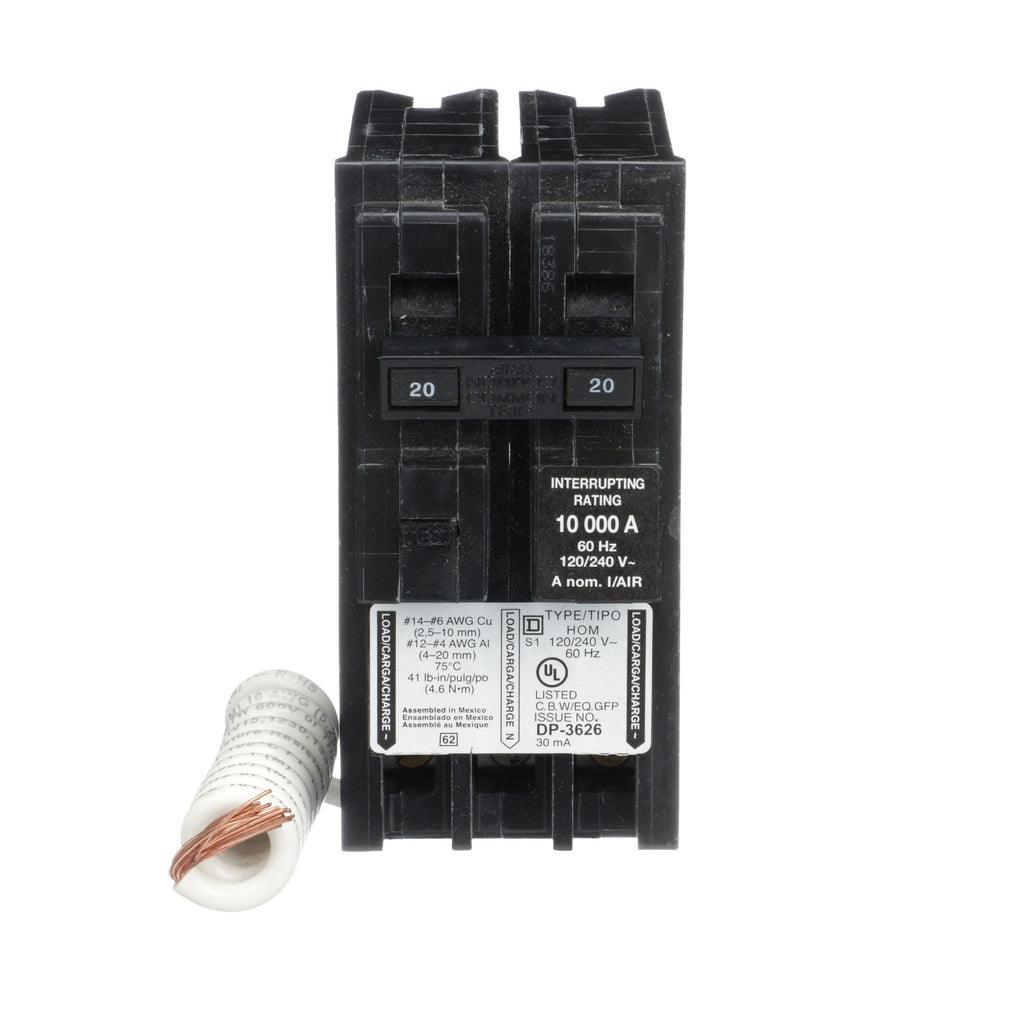

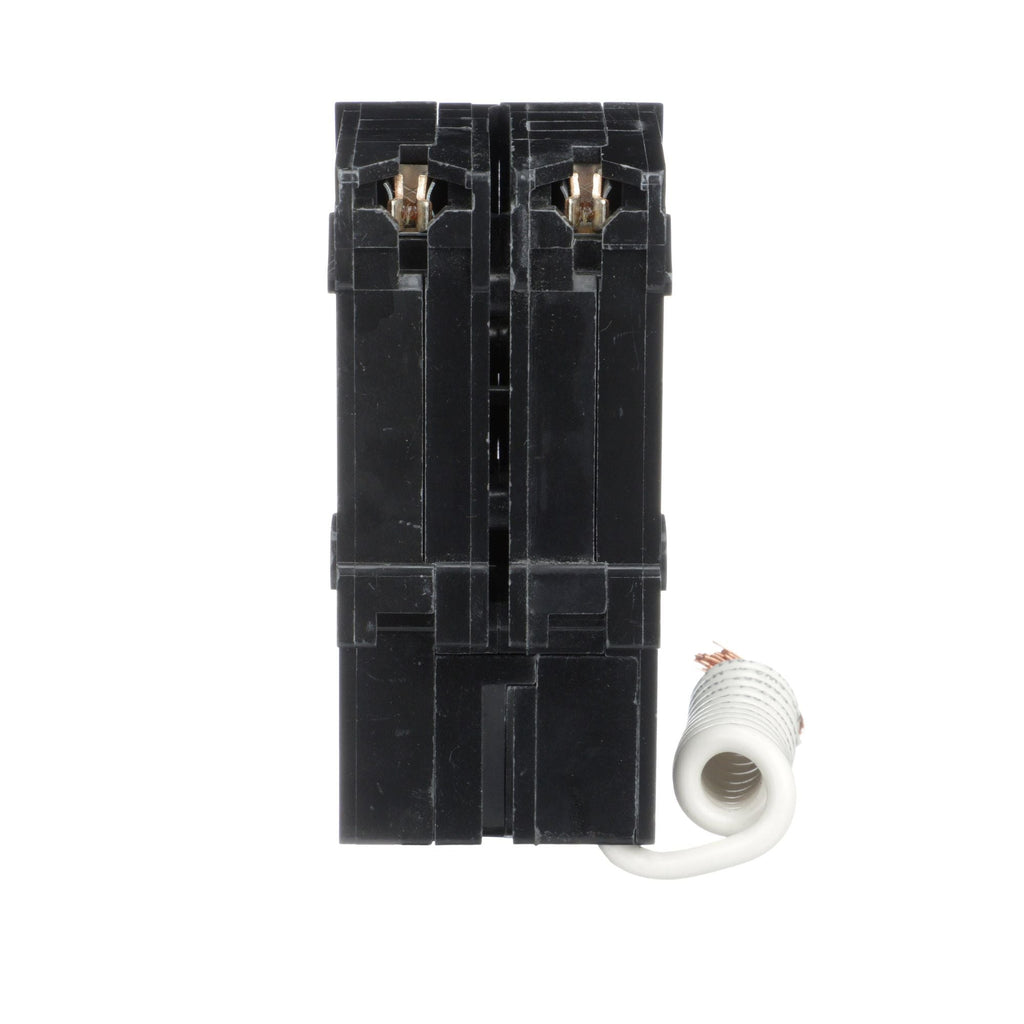

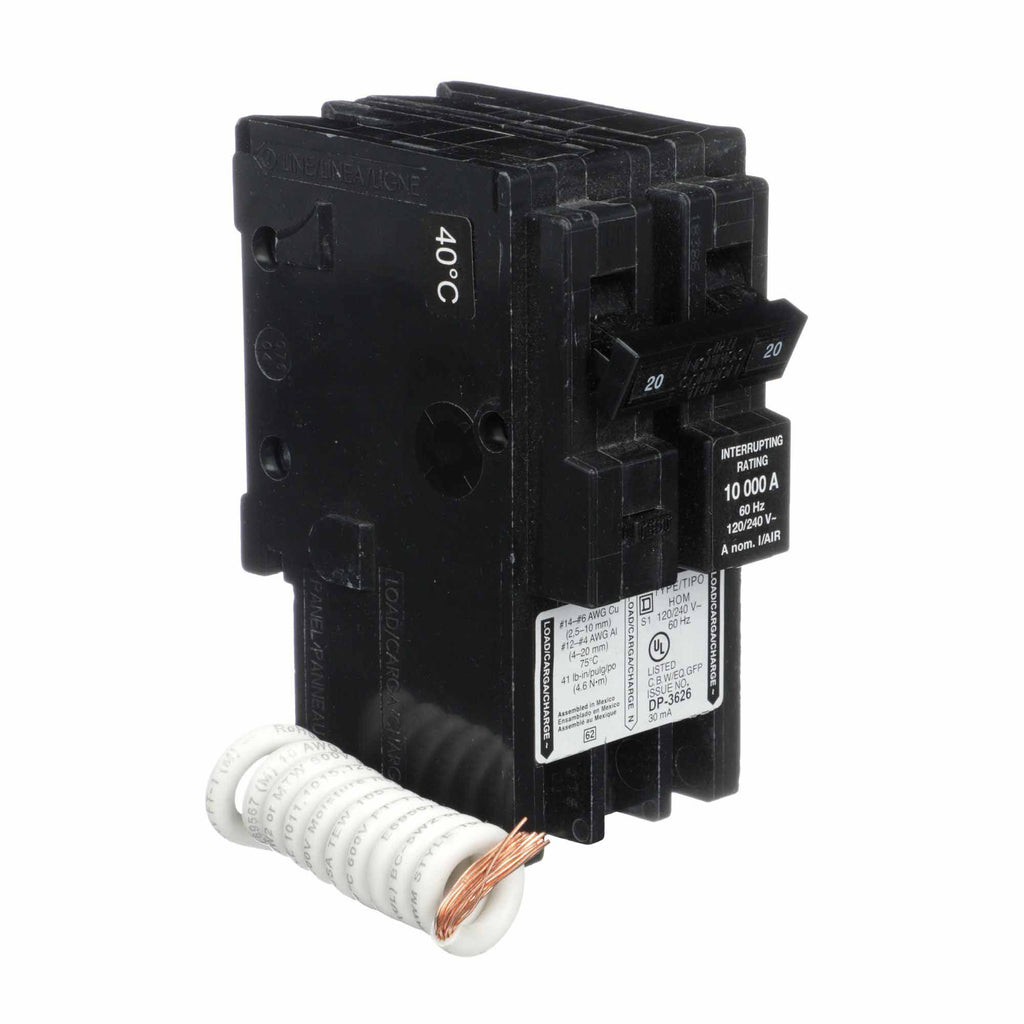

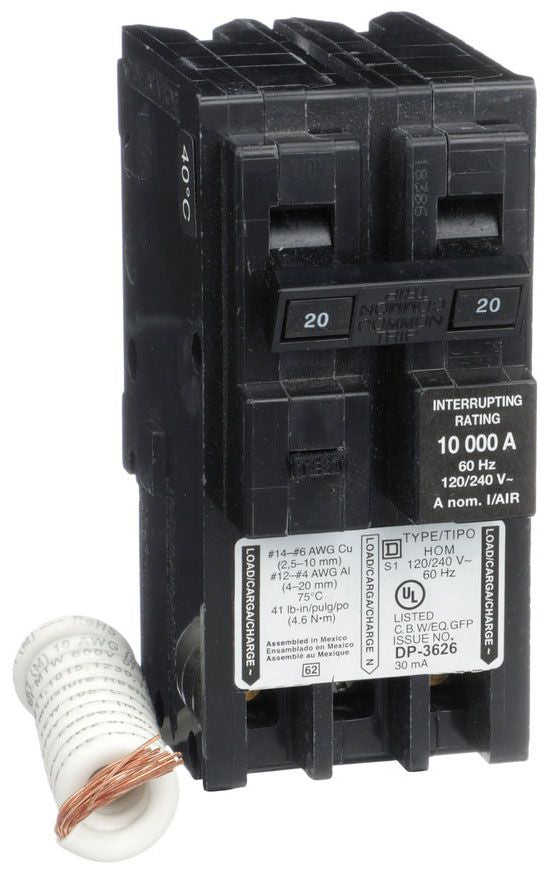

HOM220EPD is a 2-pole thermal magnetic circuit breaker by Square D designed for 20 Amp, 120/240 Volt AC applications.This Square D HOM220EPD circuit breaker features a plug-in mounting type with a common trip unit, suitable for use in load centers. It has a 10kA interrupt rating at 120/240VAC and supports wire sizes from 14 to 8 AWG aluminum or copper. The breaker is UL listed and HACR rated, providing reliable equipment protection.
- Key Specifications
- Amperage: 20 Amps
- Voltage: 120/240 VAC
- Poles: 2
- Mounting Type: Plug-In
- Interrupt Rating: 10kA at 120/240 VAC
- Trip Unit: Thermal Magnetic, Common Trip
- Wire Size: 14 to 8 AWG Aluminum/Copper
- Certifications: UL Listed, HACR Rated
- Series/Frame: Homeline
Specifications
- Part Number: HOM220EPD
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : HOMELINE
- Type : HOM
- Voltage : 240
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous
- Terminal Connection : Screw Clamp Terminals
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 8 AWG (Cu/Al)
- Protection : Thermal Magnetic
Product Data
- UPC : 785901564300
- GTIN : 00785901564300
- Country of Origin : Mexico
- Dimensions : Depth 10.53 in (267.46 mm) Width 16 in (406.40 mm) Height 52.5 in (1333.50 mm)
- Weight : 1.14
- Standards : UL Listed
- Certification : UL Listed
- Wire Size : AWG 14, AWG 8 (Aluminium/Copper)1
