HOM220GFI - Square D 20A 2-Pole 120/240V GFCI Circuit Breaker Homeline Plug-In 10kA Interrupt

HOM220GFI

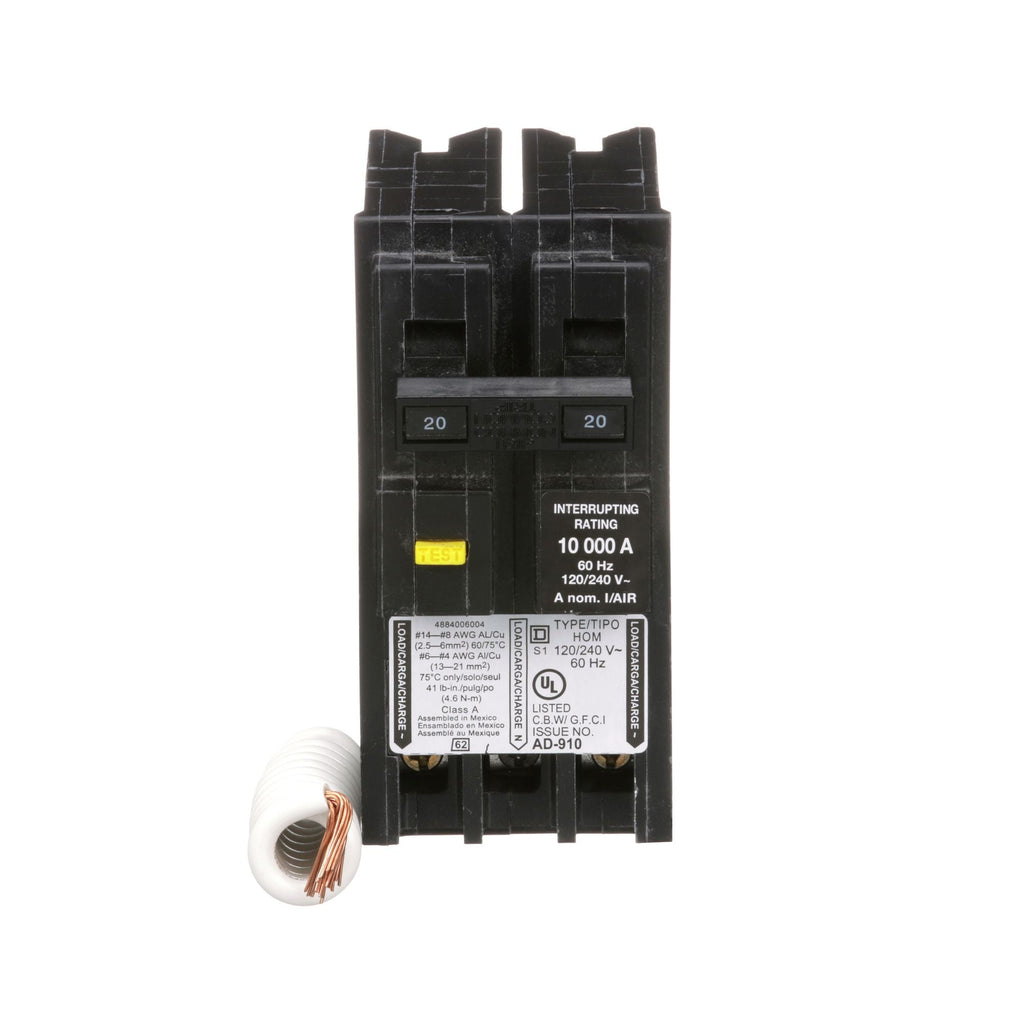

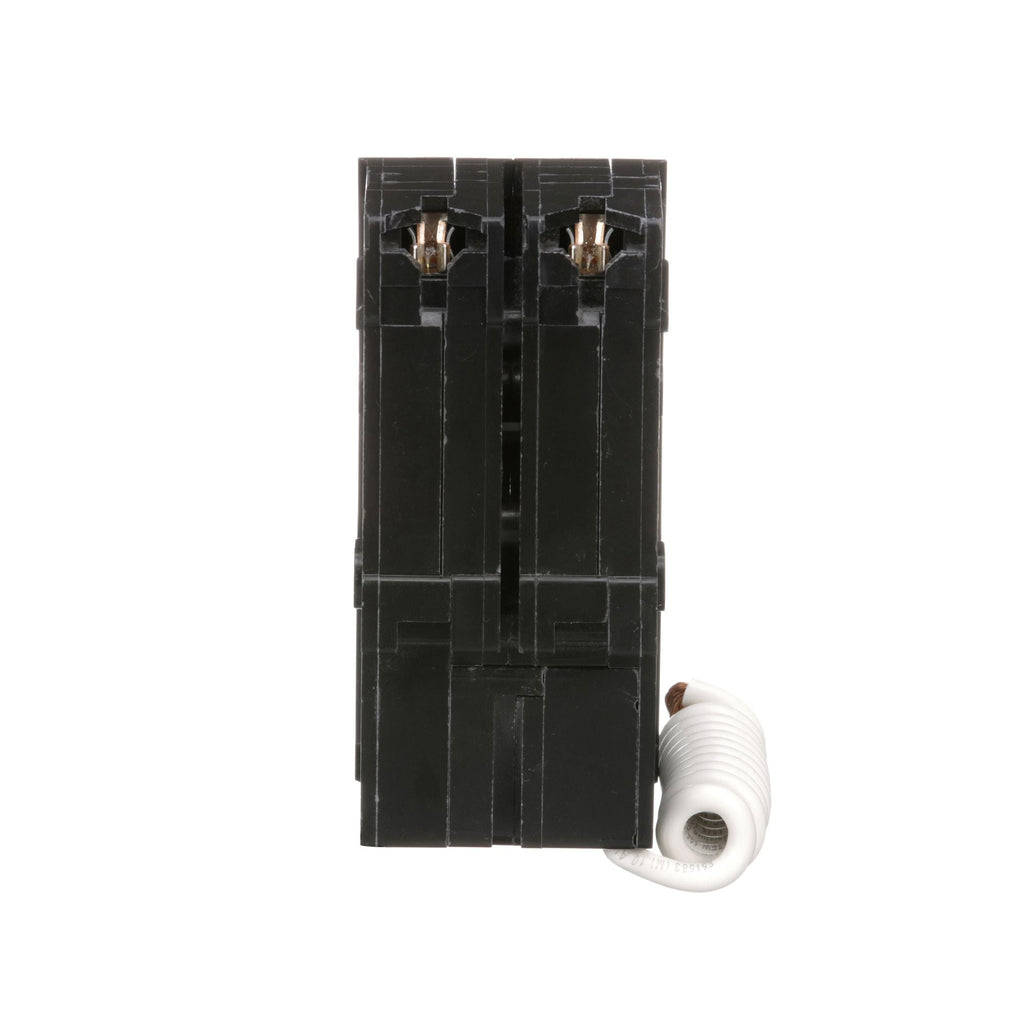

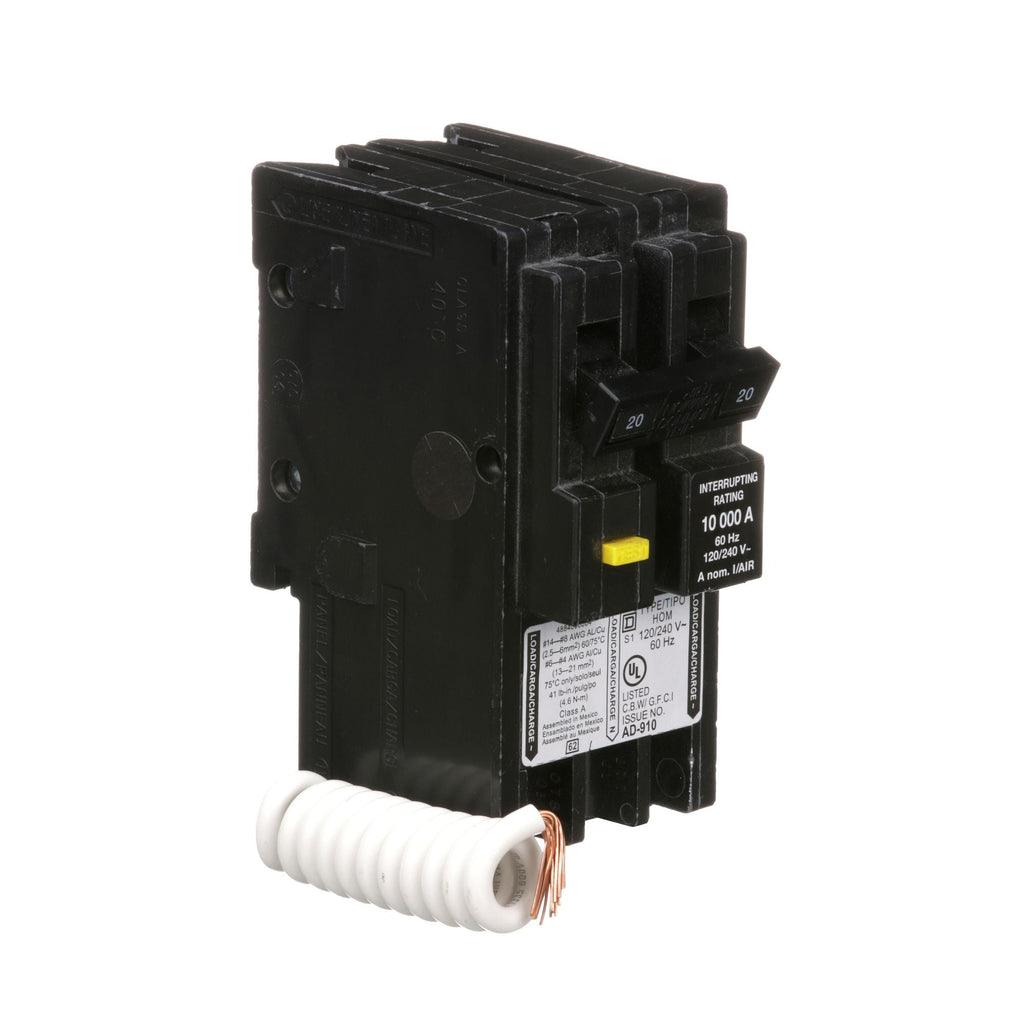

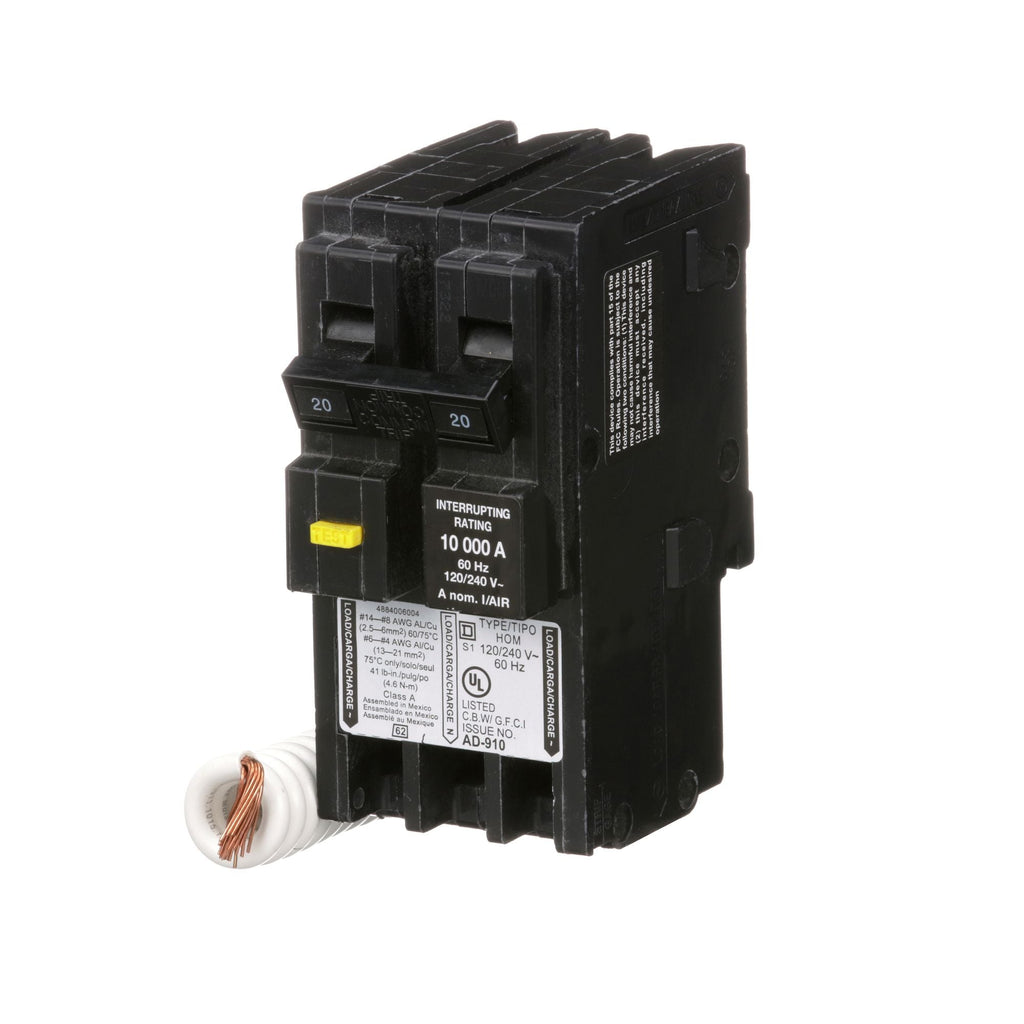

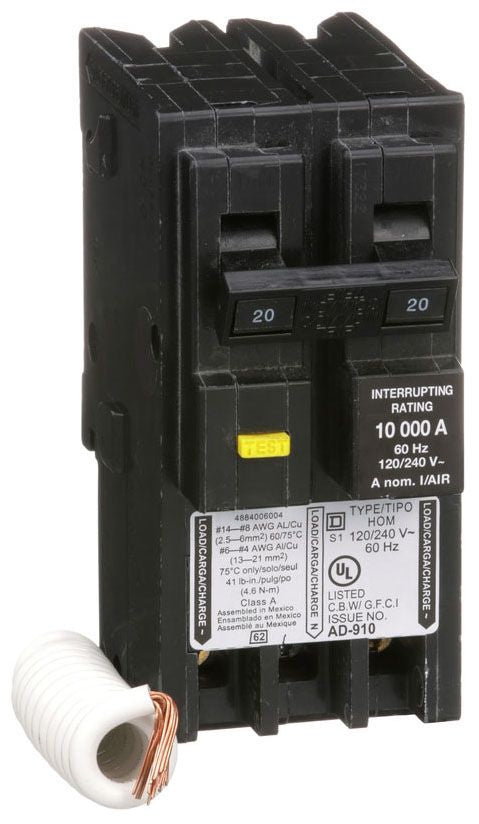

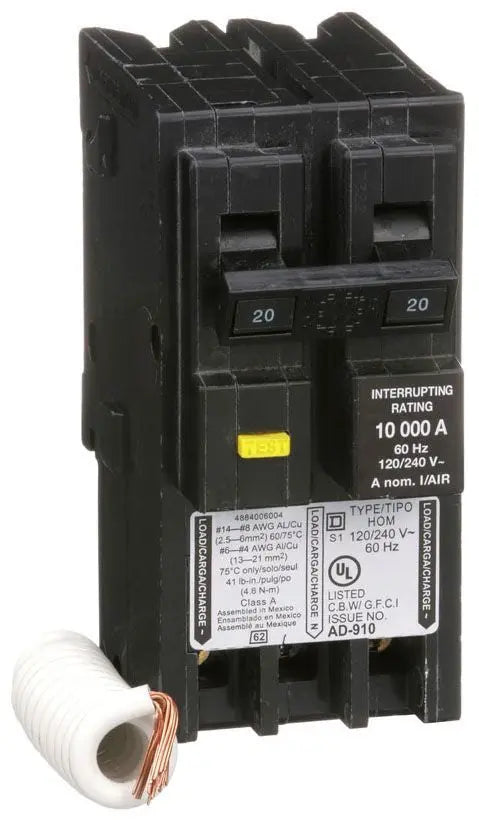

HOM220GFI is a Square D Homeline 20 Amp 2-Pole Ground Fault Circuit Interrupter (GFCI) circuit breaker designed for residential and light commercial electrical panels.

This circuit breaker features a 120/240 VAC voltage rating, 10,000 A interrupting rating (10kAIC), and plug-in mounting type compatible with Homeline load centers. It provides protection against overloads, short circuits, and ground faults with thermal magnetic trip functions including long-time and instantaneous trips. The breaker is UL listed and HACR rated, with screw clamp terminal connections supporting copper and aluminum wire sizes.

Key Specifications
• Amperage: 20 Amps
• Voltage Rating: 120/240 VAC
• Number of Poles: 2
• Interrupting Rating: 10kA at 240V
• Mounting Type: Plug-In
• Series/Frame: Homeline (HOM)
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Certifications: UL Listed, HACR Rated
• Terminal Connection: Screw Clamp
• Wire Gauge: AWG 12-4 Aluminum, AWG 14-6 Copper

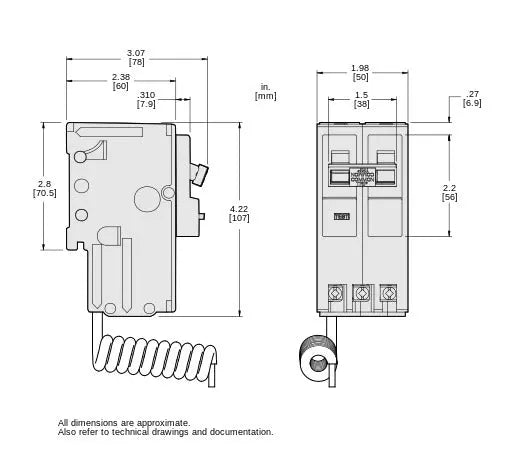

• Dimensions (LxWxH): 2.98 x 2 x 3.13 inches
• Circuit Breaker Type: GFCI (Ground Fault Circuit Interrupter)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM220GFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120/240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Screw Clamp
• Frame Size : 100A/HOM
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
• Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901303206
• GTIN : 00785901303206
• Country of Origin : Mexico

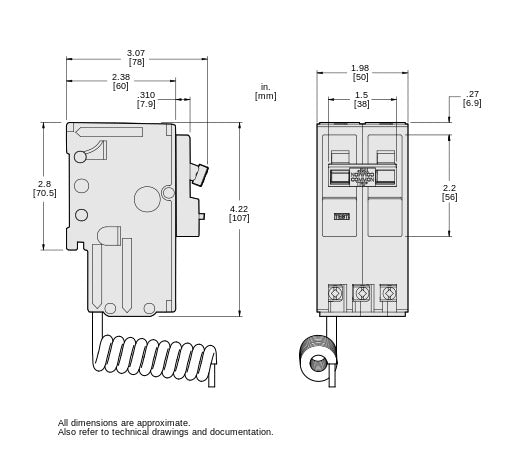

• Dimensions : 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 1.16
• Panel Type : Homeline Load Center
• Standards : CSA Certified, HACR, UL Listed
• Certification : CSA Certified, HACR, UL Listed
• Wire Size : 1x AWG 12 to AWG 4, Aluminum, 1x AWG 14 to AWG 6, Copper
