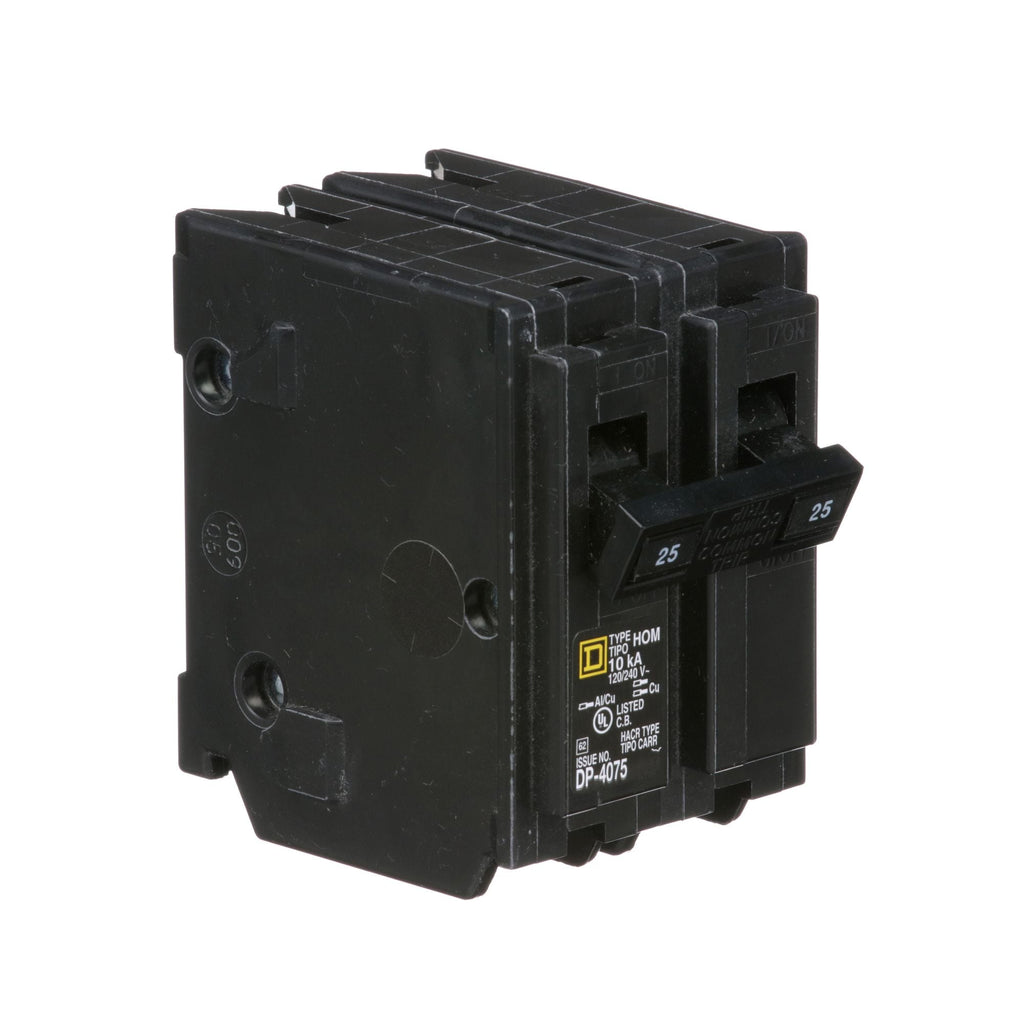

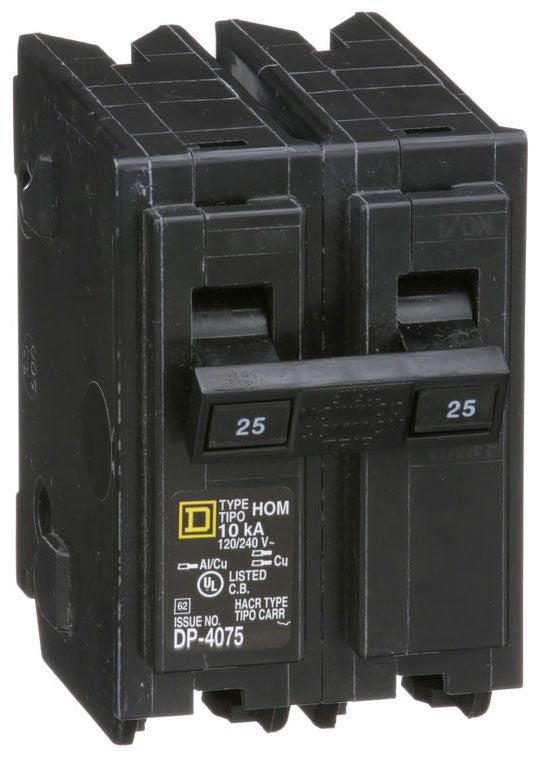

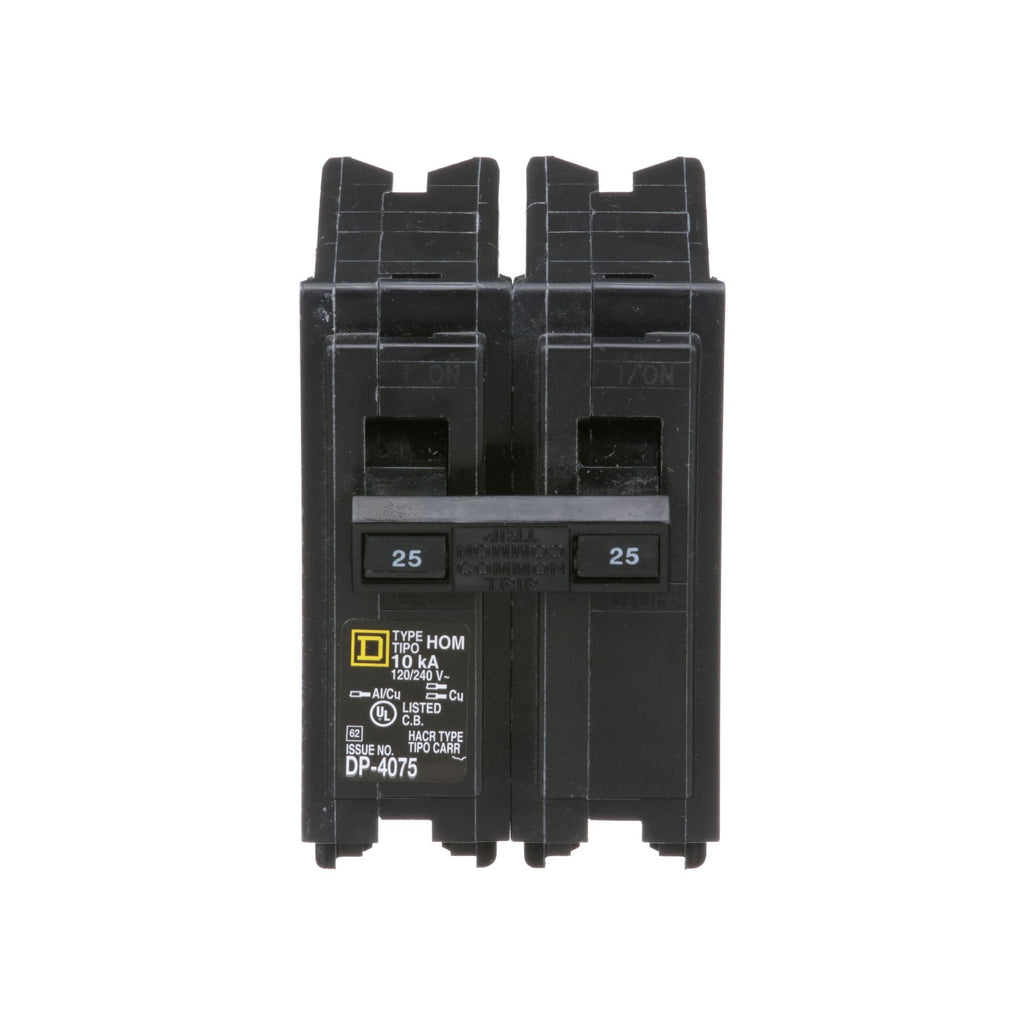

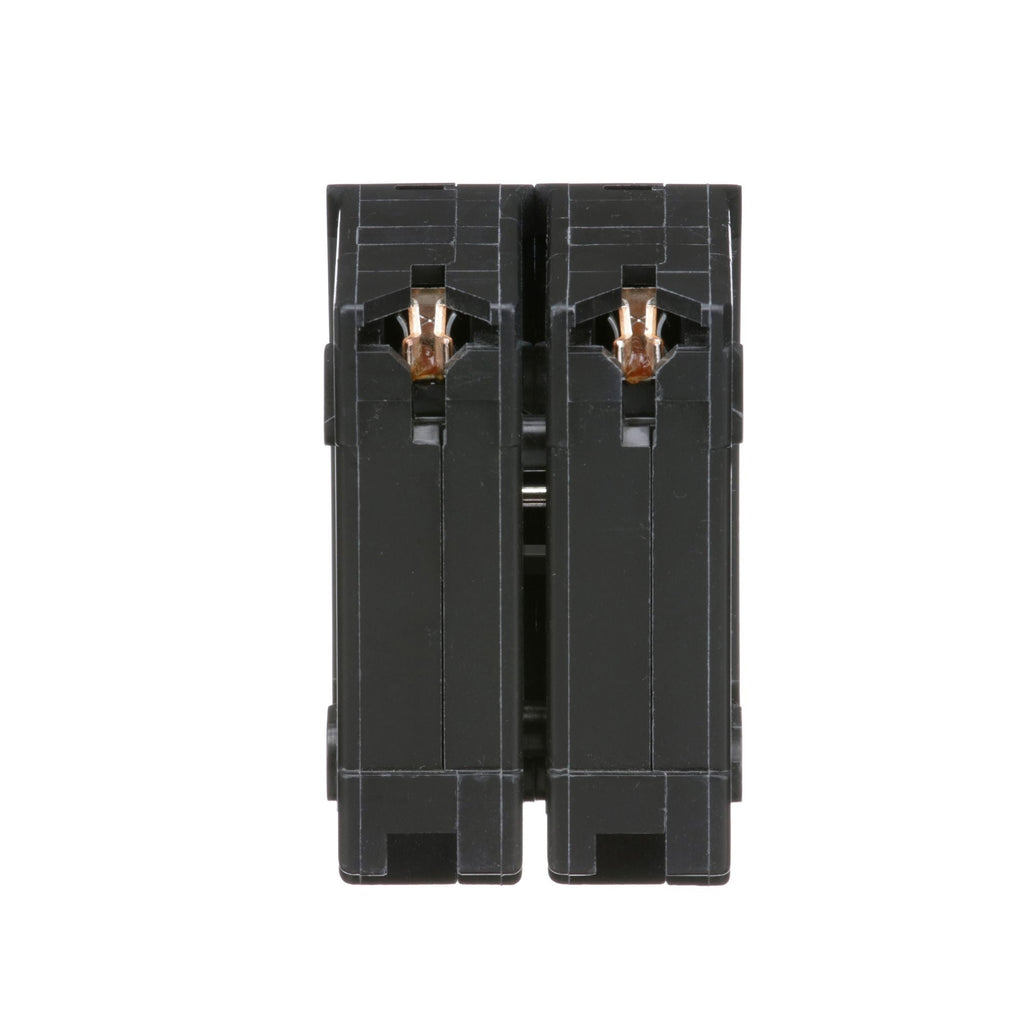

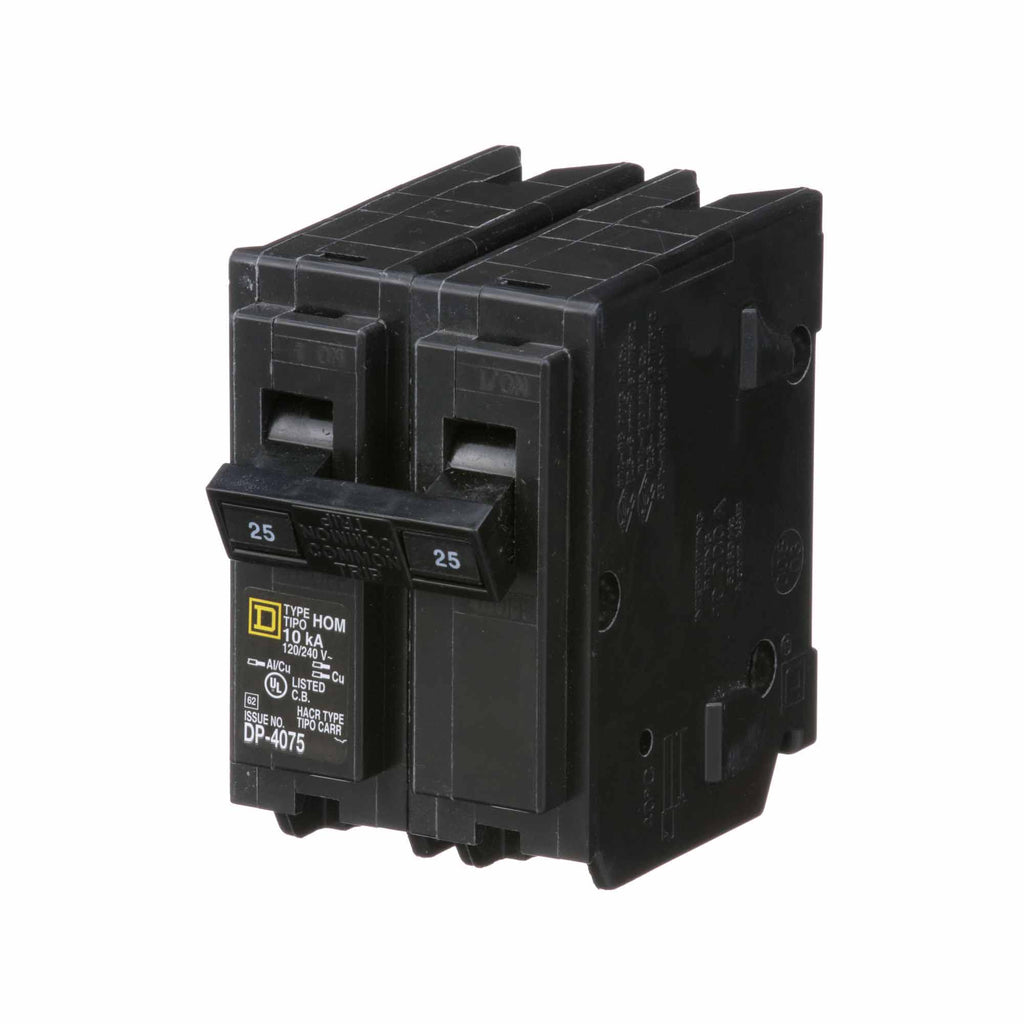

HOM225 - Square D 25 Amp 2 Pole 120/240V Plug-In Circuit Breaker Homeline Series

HOM225

HOM225 is a 25 Amp 2 Pole circuit breaker from Square D's Homeline series designed for residential and commercial circuit protection.This thermal magnetic molded case circuit breaker features a 120/240 VAC voltage rating, plug-in mounting type, and a 10,000 A interrupt rating. It is UL and CSA certified and compatible with Homeline load centers, providing reliable protection against overloads and short circuits.

• Manufacturer: Square D
• Part Number: HOM225
• Amperage: 25 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-in
• Interrupt Rating: 10,000 A (10 kA)
• Series/Frame: Homeline (HOM)
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, CSA Certified
• Application: Residential and Commercial

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM225
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120/240
• Amperage : 25
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Screw Clamp
• Frame Size : 100A/HOM
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901065487
• GTIN : 00785901065487
• Country of Origin : Mexico

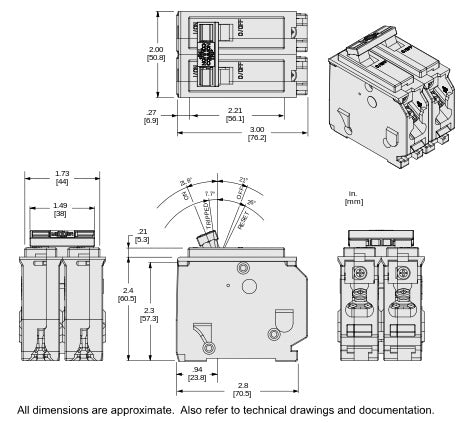

• Dimensions : 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.66
• Panel Type : Homeline Load Center
• Standards : CSA Certified, HACR, UL Listed
• Certification : CSA Certified, HACR, UL Listed
• Wire Size : 1x AWG 14 to AWG 8, Aluminum/Copper, 2x AWG 14 to AWG 10, Copper
