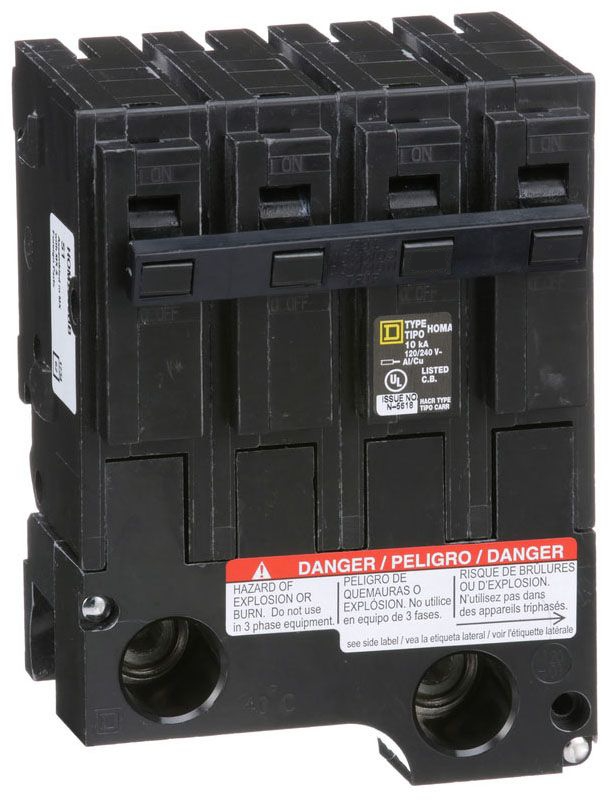

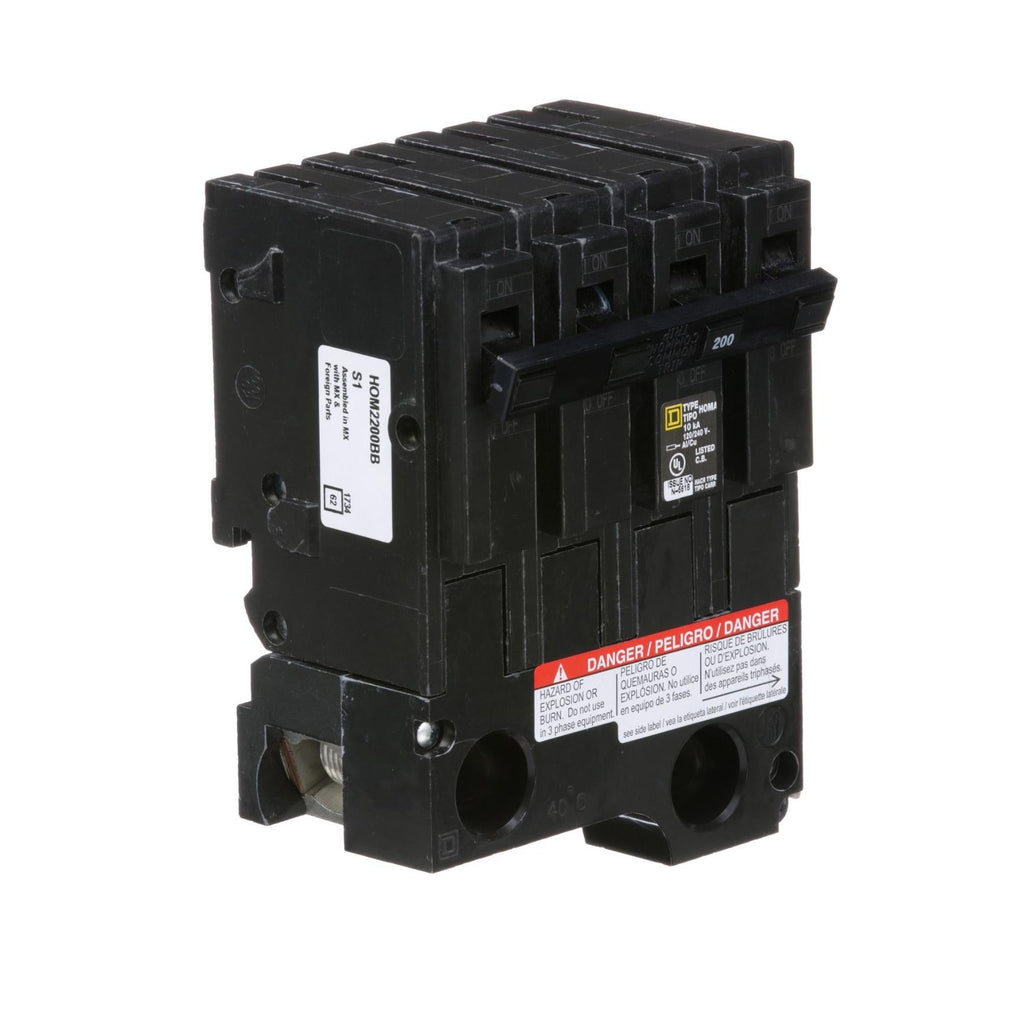

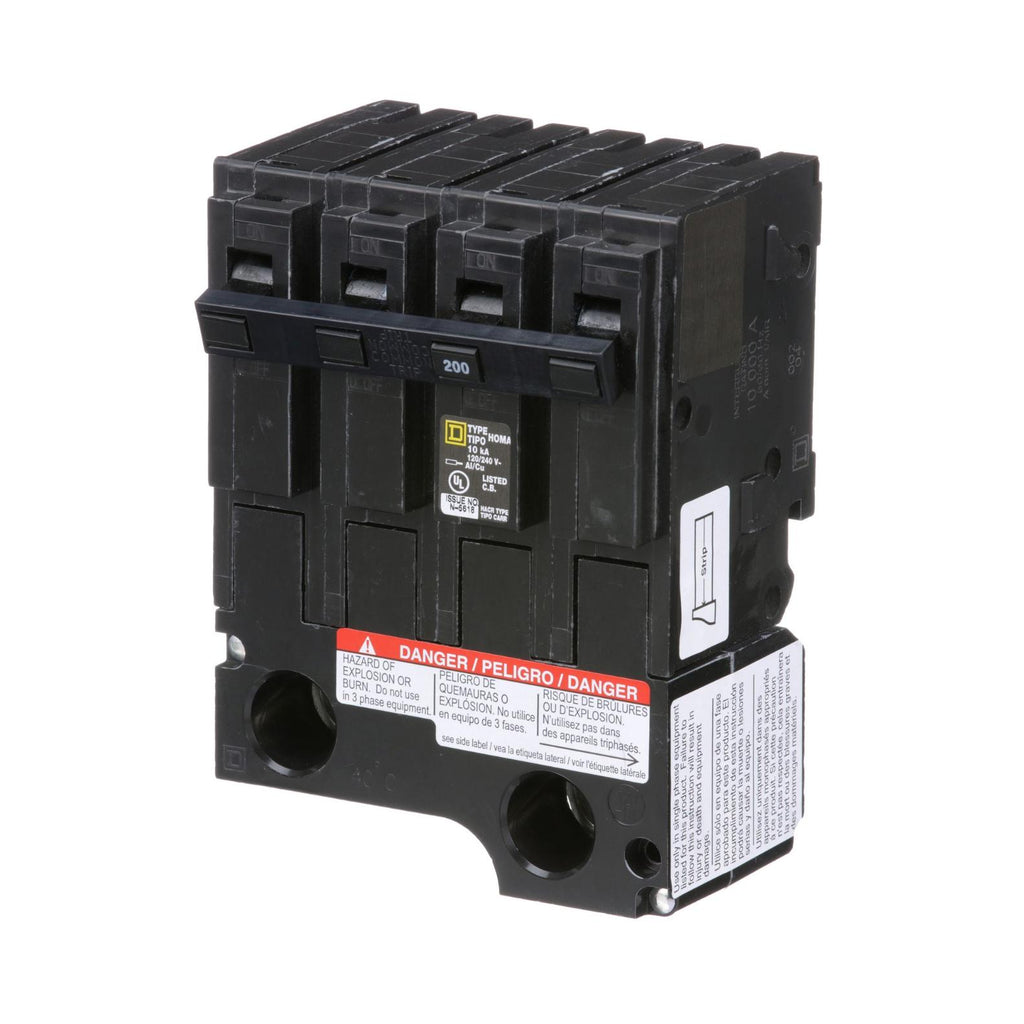

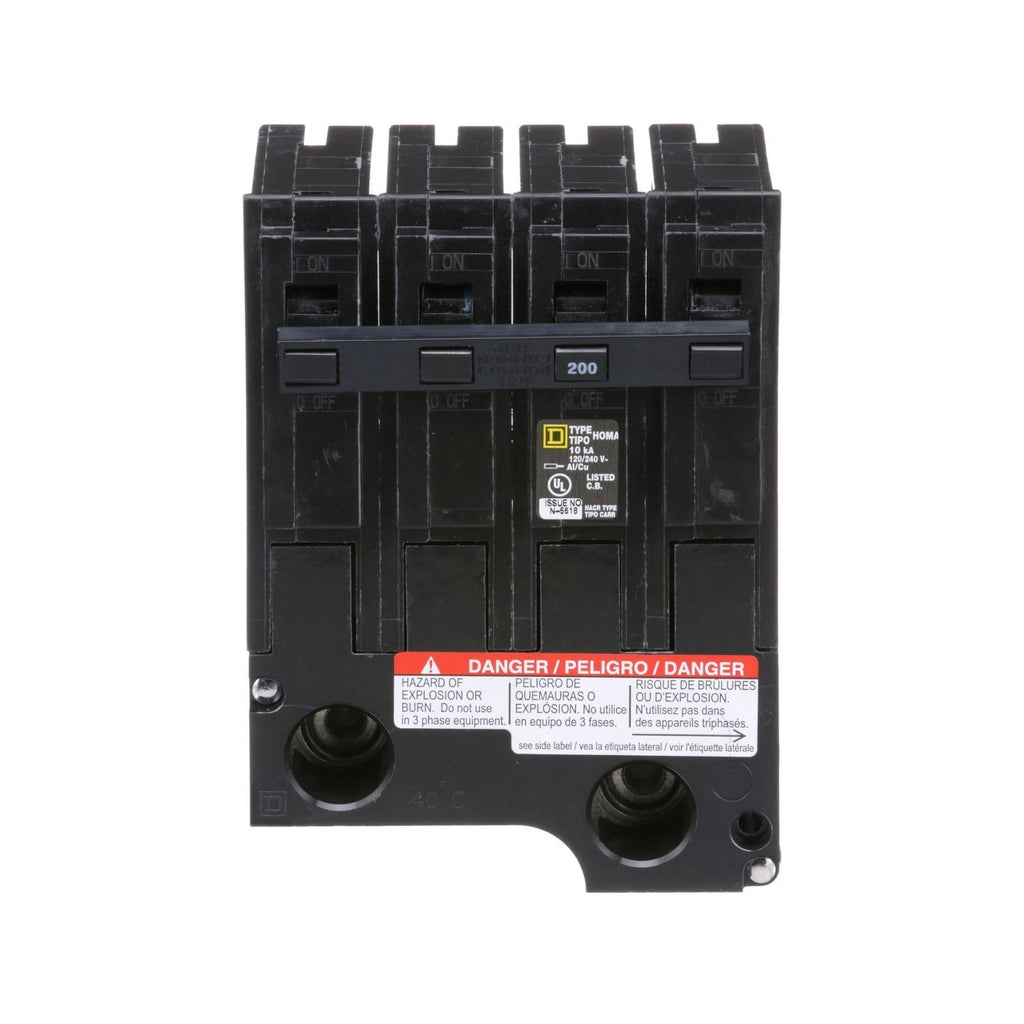

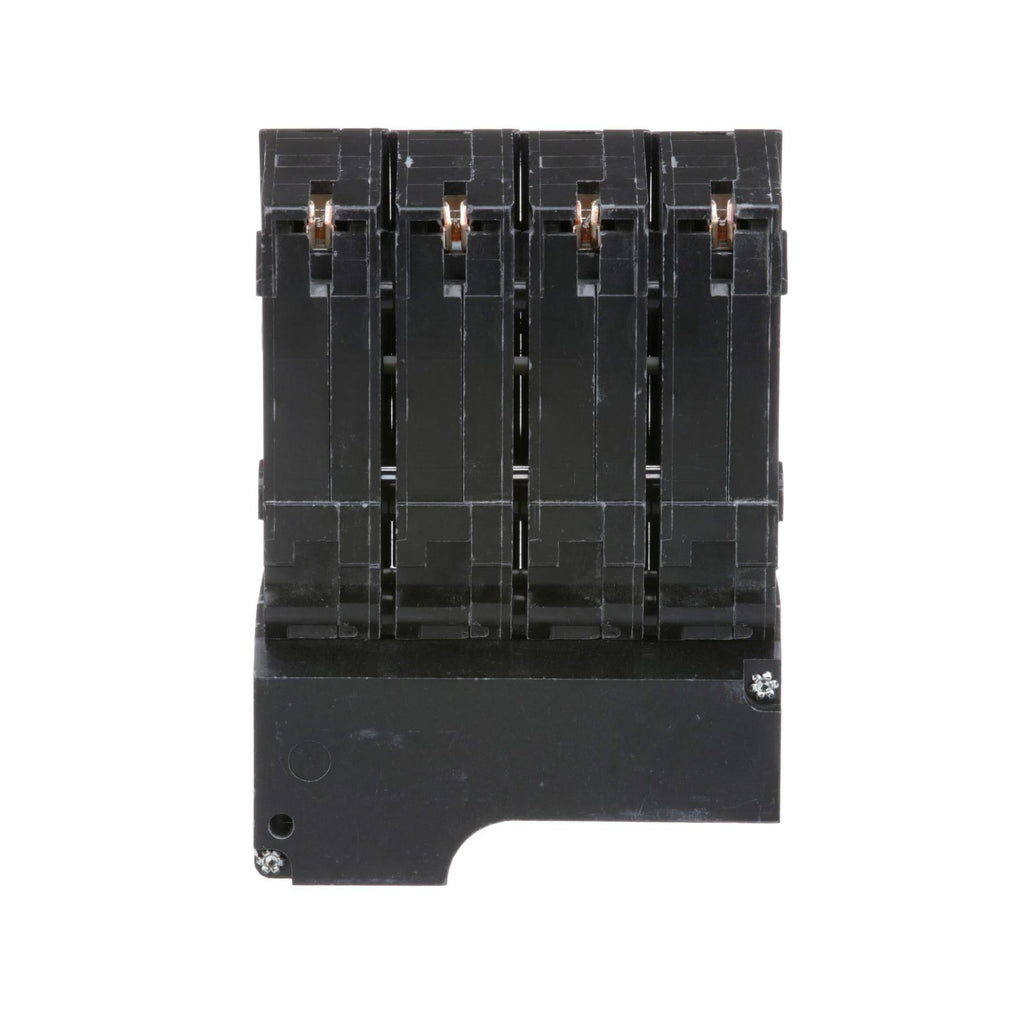

HOM2200BB - Square D 200A 2-Pole 120/240V Circuit Breaker Plug-In Homeline

HOM2200BB

HOM2200BB is a 200 Amp, 2-pole circuit breaker from Square D's Homeline series designed for 120/240V AC electrical systems.This plug-in type breaker features a 10kA interrupt rating at 240VAC, providing reliable protection against overloads and short circuits in residential and commercial applications. It requires four 1-pole panel spaces and is UL listed for safety and performance.

• Amperage: 200A
• Voltage Rating: 120/240 VAC
• Number of Poles: 2
• Interrupt Rating: 10kA at 240VAC
• Mounting Type: Plug-In
• Series/Frame: Homeline (HOM)
• Trip Unit: Thermal Magnetic
• UL Listed Certification
• Requires 4 panel spaces
• Dimensions: Approx. 7.5"L x 7.0"W x 6.0"D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM2200BB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Homeline
• Type : HOM
• Voltage : 240
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Protection : Thermal Magnetic

Product Data

• UPC : 785901876601
• GTIN : 00785901876601
• Country of Origin : Mexico
• Dimensions : Depth 10.53 in (267.46 mm) Width 16 in (406.40 mm) Height 52.5 in (1333.50 mm)
• Weight : 3.06 lb
• Panel Type : Homeline
• Certification : UL Listed
• Wire Size : 4 AWG to 300 KCMIL (Aluminum/Copper)
