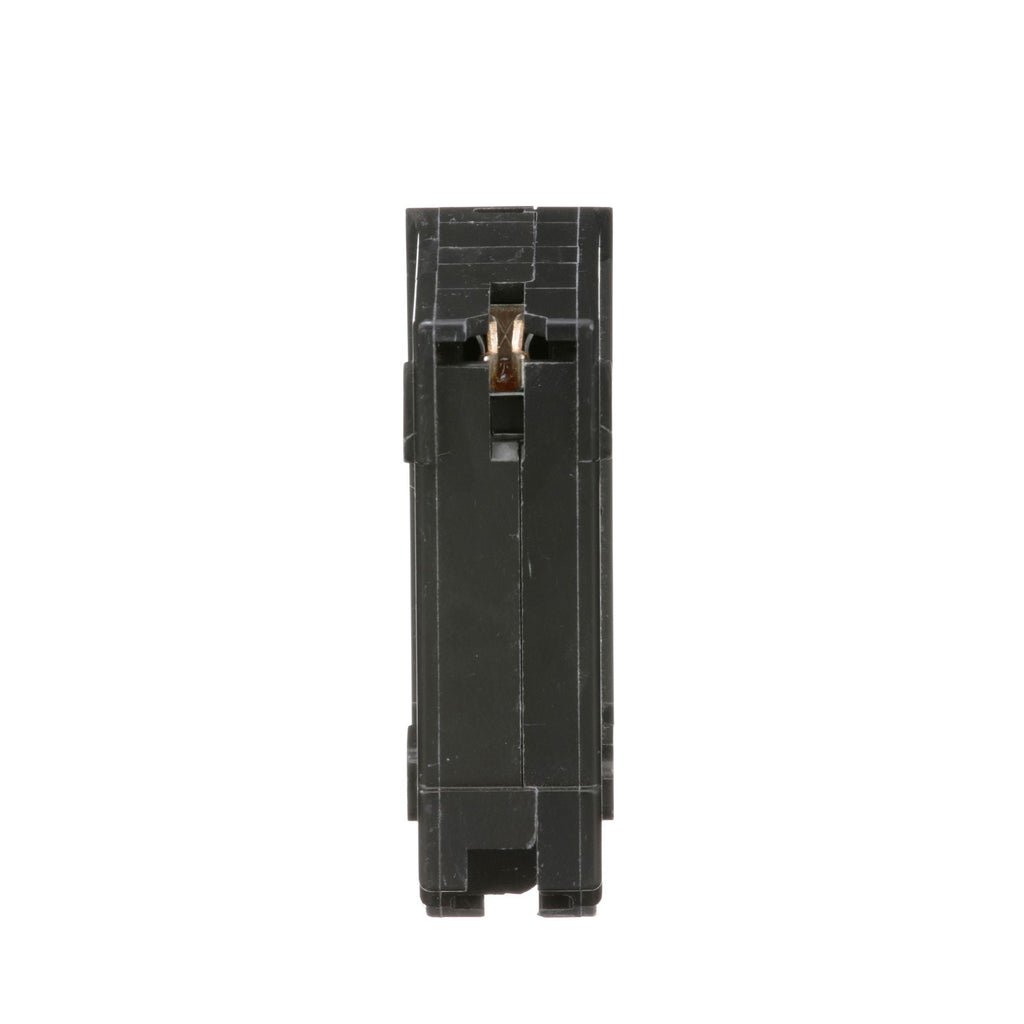

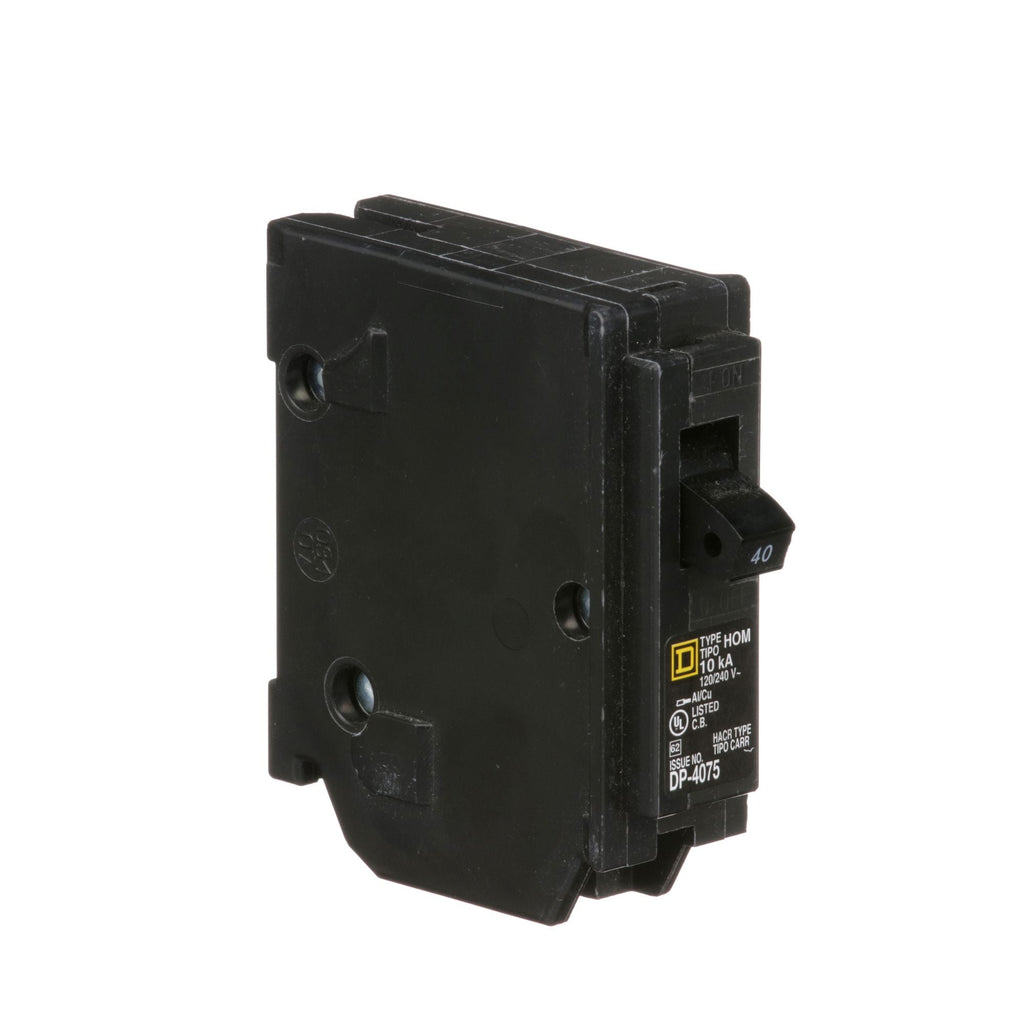

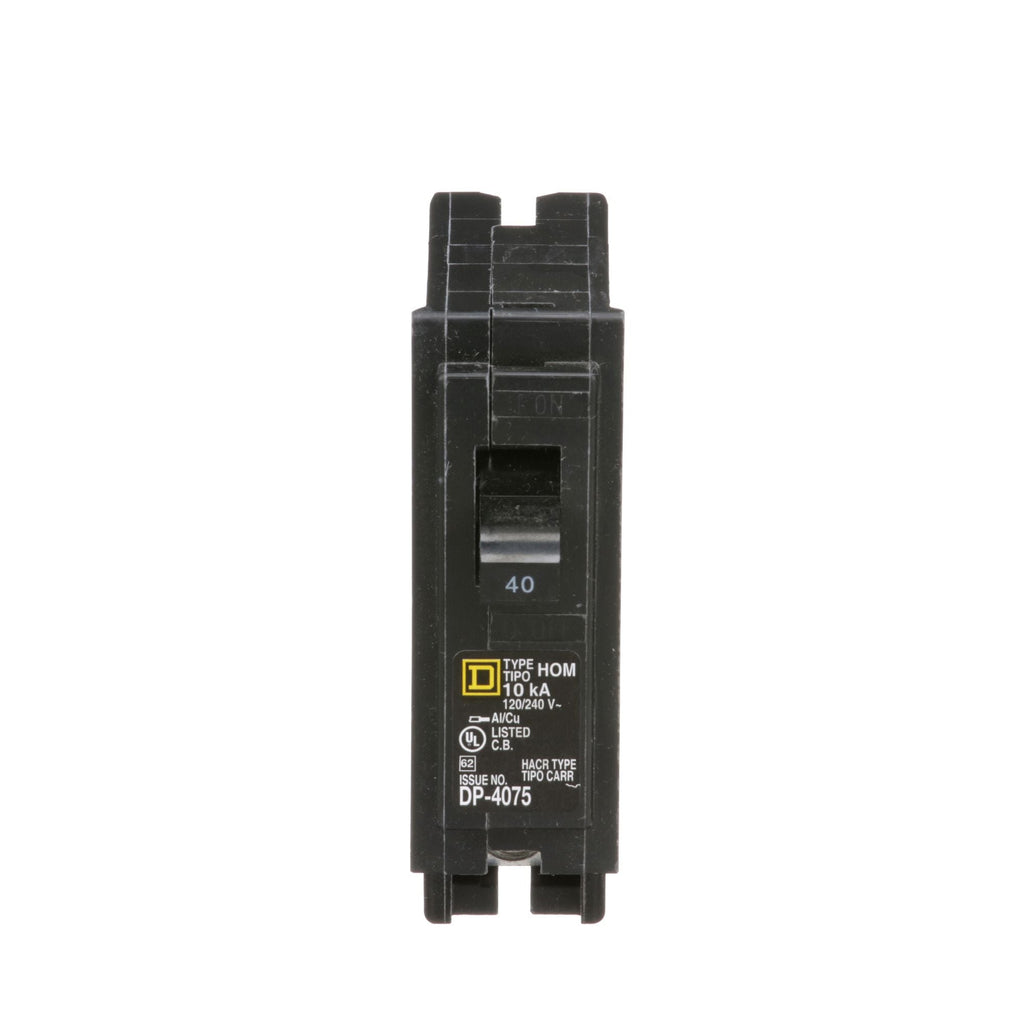

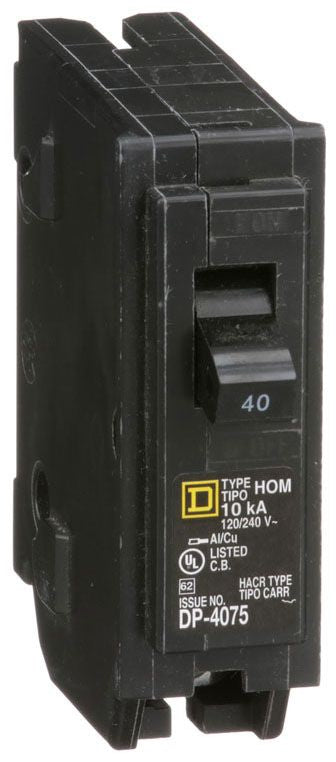

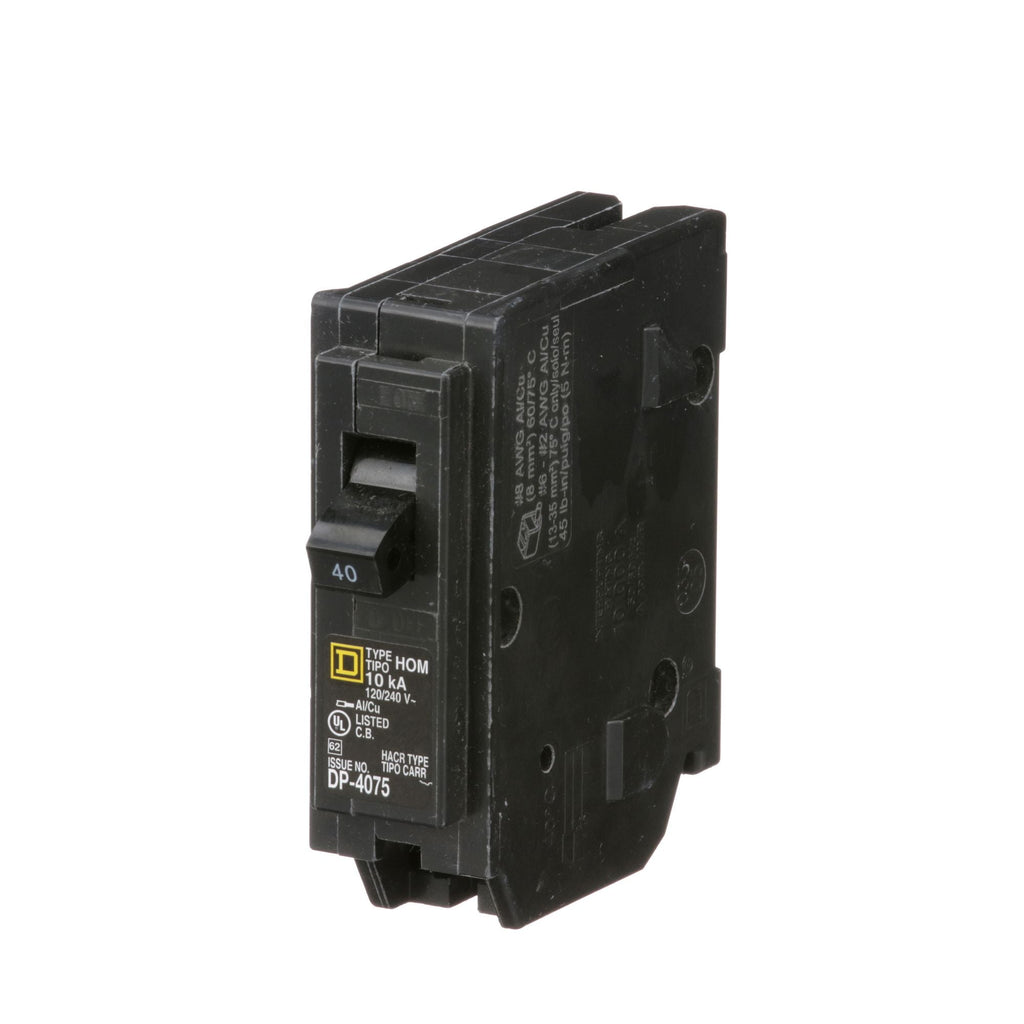

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Molded Case
- Series
- HOMELINE
- Frame
- HOM
- Rated current
- 40
- Voltage
- 120/240V
- Poles
- 1
- Phases
- 1
- Interrupting rating
- 10kA@120V
- Trip functions
- LI - Long-Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Plug-In
- Terminals
- Lug
- Panel / equipment
- Homeline Load Center
- Standards
- CSA Certified, HACR, UL Listed
- Country of origin
- Mexico
Show all specifications (10 more)
- Frame Size
- 100A/HOM
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- MCM Size
- Min. Wire Size 8 AWG Max. Wire Size 2 AWG
- Breaker Type
- Standard
- UPC
- 785901065241
- GTIN
- 00785901065241

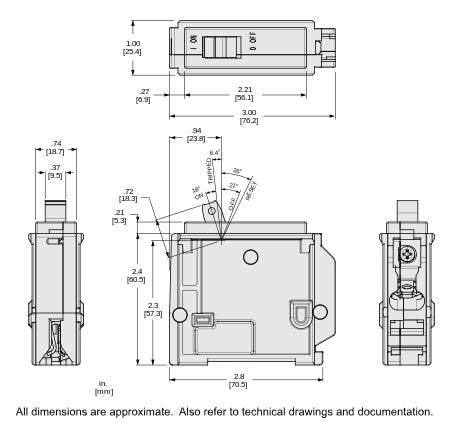

- Dimensions
- 3.13 in (79.50 mm) x 1 in (25.4 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
- Weight
- 0.34
- Certification
- CSA Certified, HACR, UL Listed
- Wire Size
- 1x AWG 8 to AWG 2, Al/Cu
Product description & additional details
HOM140
HOM140 is a Square D Homeline 1-pole miniature circuit breaker designed for reliable circuit protection in residential and light commercial applications.
This plug-in circuit breaker features a 40A amperage rating, 120/240VAC voltage, and a 10kA interrupt rating. It is part of the HOM series and is compatible with Homeline load centers. The standard thermal magnetic trip unit provides both overload and short-circuit protection. Electrical connections accept 8 to 2 AWG aluminum or copper wire. The compact design measures 1 inch wide by 2.98 inches deep by 3.13 inches high, making it easy to install in tight spaces.
Key Specifications
- Part Number: HOM140
- Manufacturer: Square D
- Series/Frame: Homeline (HOM)
- Amperage: 40A
- Voltage: 120/240VAC
- Poles: 1
- Mounting Type: Plug-In
- Interrupt Rating: 10kA
- Trip Unit: Standard Thermal Magnetic
- Wire Size: 8 to 2 AWG (Aluminum/Copper)
- Certifications: UL Listed, California Proposition 65
- Dimensions: 1" W x 2.98" D x 3.13" H
- Application: Residential and light commercial load centers
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HOM140
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : HOMELINE
- Type : HOM
- Voltage : 120/240
- Amperage : 40
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 100A/HOM
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 785901065241
- GTIN : 00785901065241
- Country of Origin : Mexico
- Dimensions : 3.13 in (79.50 mm) x 1 in (25.4 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
- Weight : 0.34
- Panel Type : Homeline Load Center
- Standards : CSA Certified, HACR, UL Listed
- Certification : CSA Certified, HACR, UL Listed
- Wire Size : 1x AWG 8 to AWG 2, Al/Cu
