HND312T33W - Cutler Hammer 1200A 600V 3 Pole Bolt-On Molded Case Circuit Breaker, Series C N-Frame, Digitrip 310, 65kAIC@480V, UL/CSA

HND312T33W

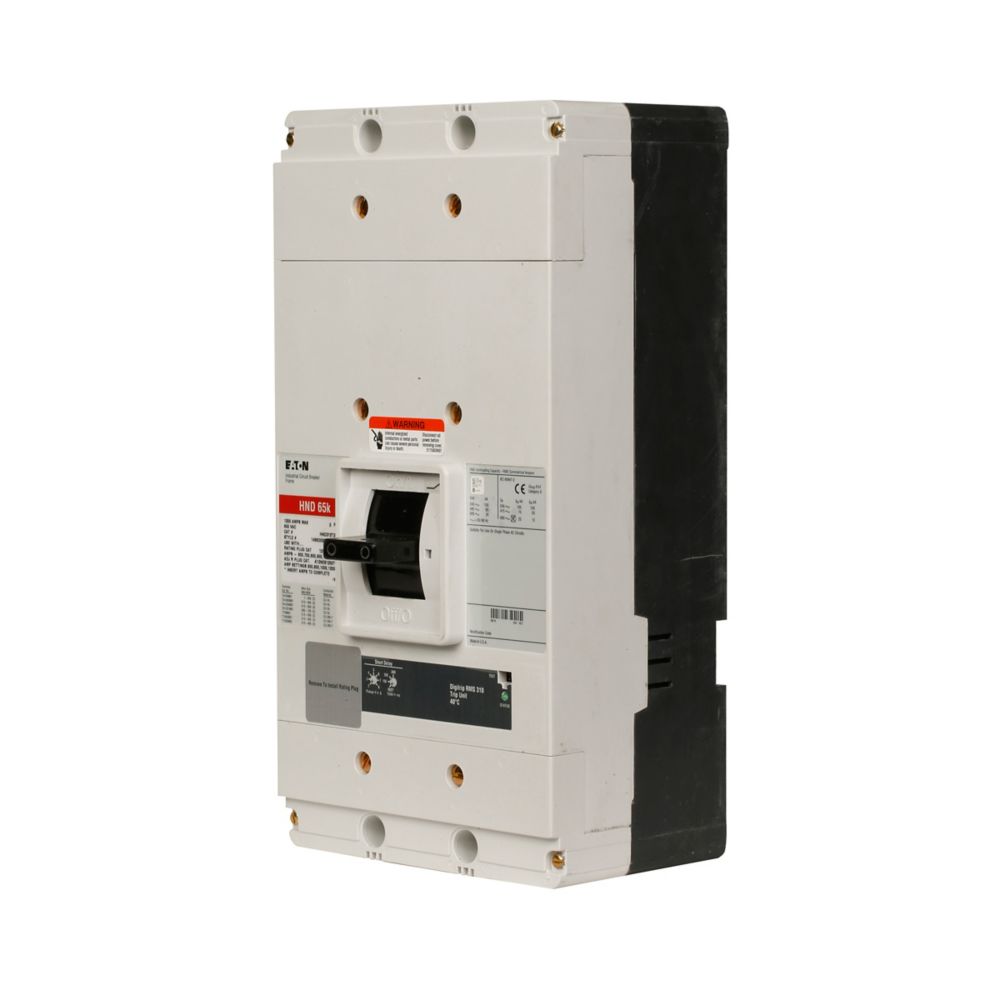

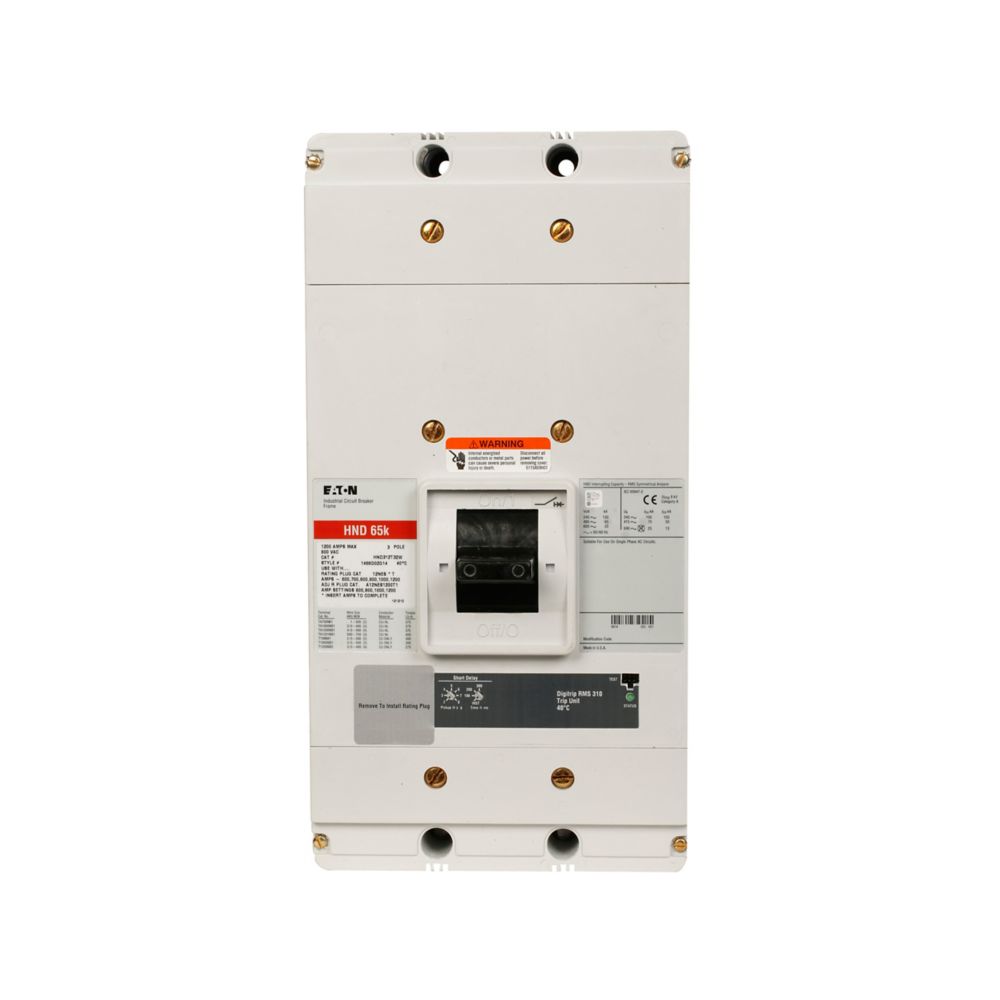

HND312T33W is a Cutler Hammer 3-pole molded case circuit breaker designed for robust electrical protection in commercial and industrial applications.

This Series C, N-Frame breaker features a solid-state Digitrip 310 trip unit with long-time and short-time protection, a bolt-on mounting style, and a high interrupting capacity. It is rated for 1200A at 600V AC, suitable for demanding three-phase systems, and is certified for safety and reliability.

Key Specifications
• Amperage: 1200A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 65kAIC at 480V, 100kAIC at 240V
• Series/Frame: Series C, N-Frame (HND)
• Trip Unit: Digitrip 310, Electronic LS (Long-Time/Short-Time)
• Certifications: UL Listed, CSA Certified, HACR Rated
• Frequency: 50/60 Hz
• Connection: Without terminals (lugs not included)
• Dimensions: 16" H x 8.25" W x 5.5" D
• Weight: 48.45 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HND312T33W
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HND
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LS - Long-Time and Short-Time
• Frame Size : N Frame
• Protection : Solid State

Product Data

• UPC : 786679252727
• GTIN : 00786679252727
• Country of Origin : United States
• Dimensions : 5.5 in x 16 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 48.45
• Certification : HACR Rated
