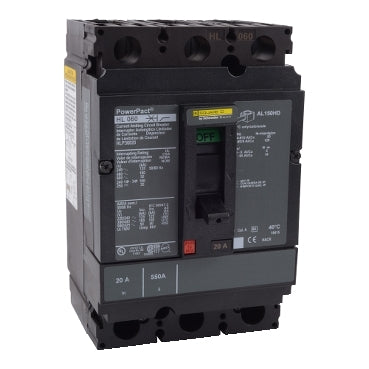

HLP36020 - Square D 3 Pole 20A 600V Bolt-On Thermal Magnetic Circuit Breaker

HLP36020

HLP36020 is a 3 pole, 20 amp, 600 volt bolt-on circuit breaker manufactured by Square D. This breaker is designed for reliable protection in commercial and industrial power distribution systems. The HLP36020 features a thermal magnetic trip unit for overload and short circuit protection. It is constructed for bolt-on mounting and is suitable for use in I-Line style panelboards. The breaker is rated for 100kA interrupting capacity at 480 volts, making it suitable for demanding electrical environments.

• Part Number: HLP36020
• Manufacturer: Square D
• Amperage: 20A
• Voltage: 600V
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 100kA@480V
• Series/Frame: H-Frame
• Frame Type: HLA
• Connection Style: I-Line
• Trip Unit: Thermal Magnetic
• Application: Commercial and Industrial Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLP36020
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLP
• Voltage : 600
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : H Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 060648705499
• GTIN : 03606487054993
• Dimensions : Height 6.42 in (163 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 4
• Certification : UL, CSA, NEMA, NOM, IEC
• Wire Size : AWG 14 to AWG 3/0, Aluminum/Copper
