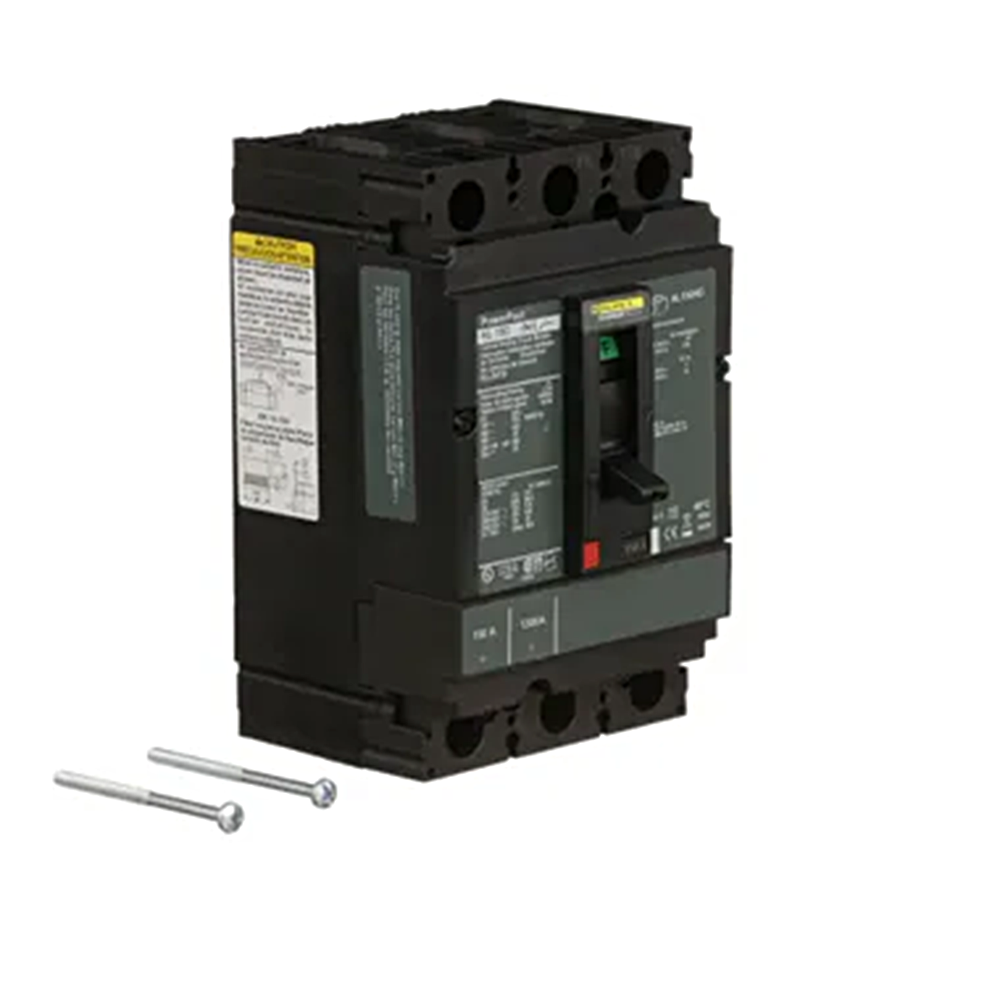

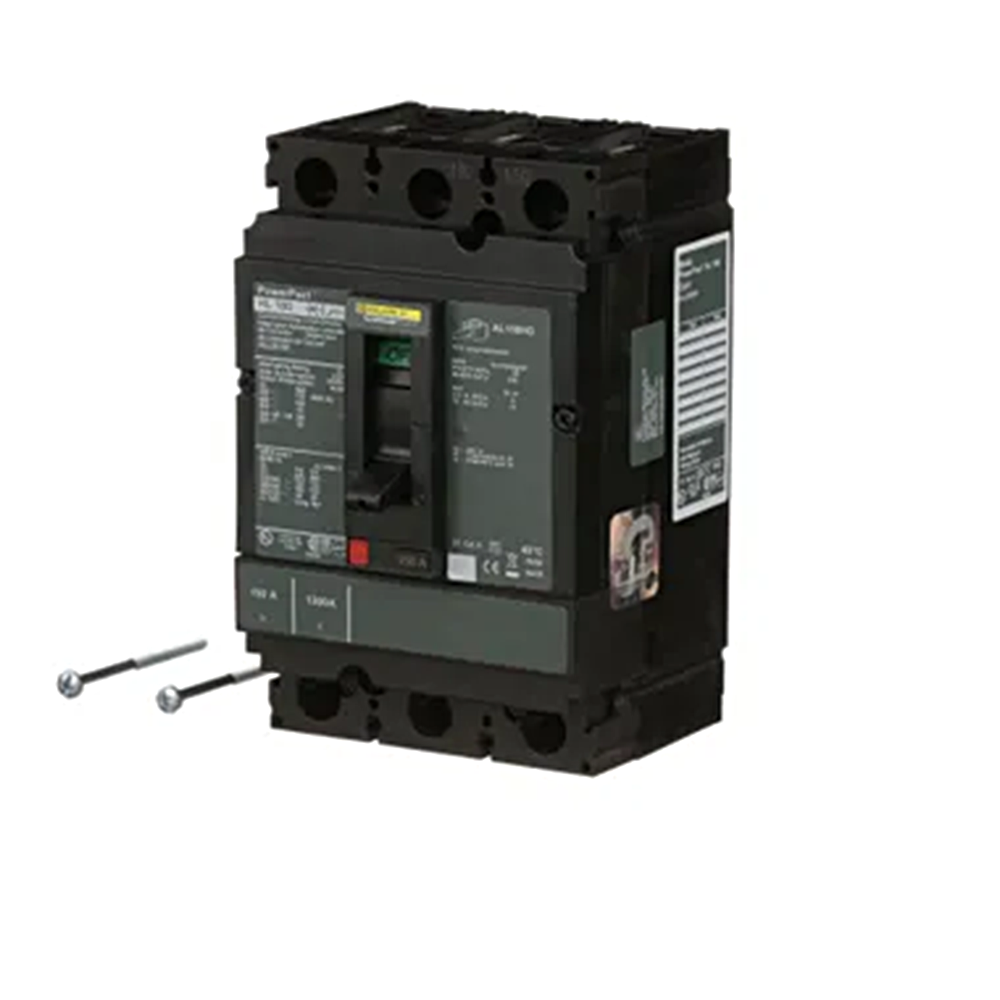

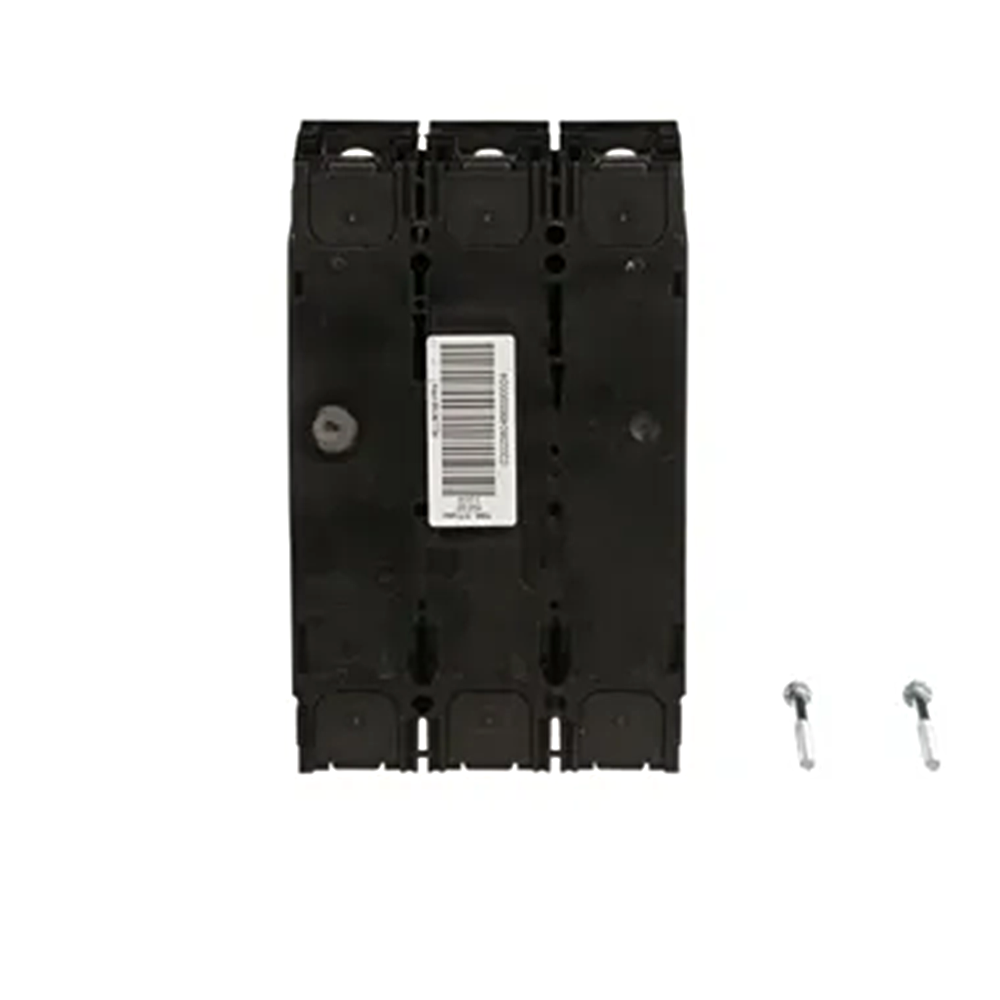

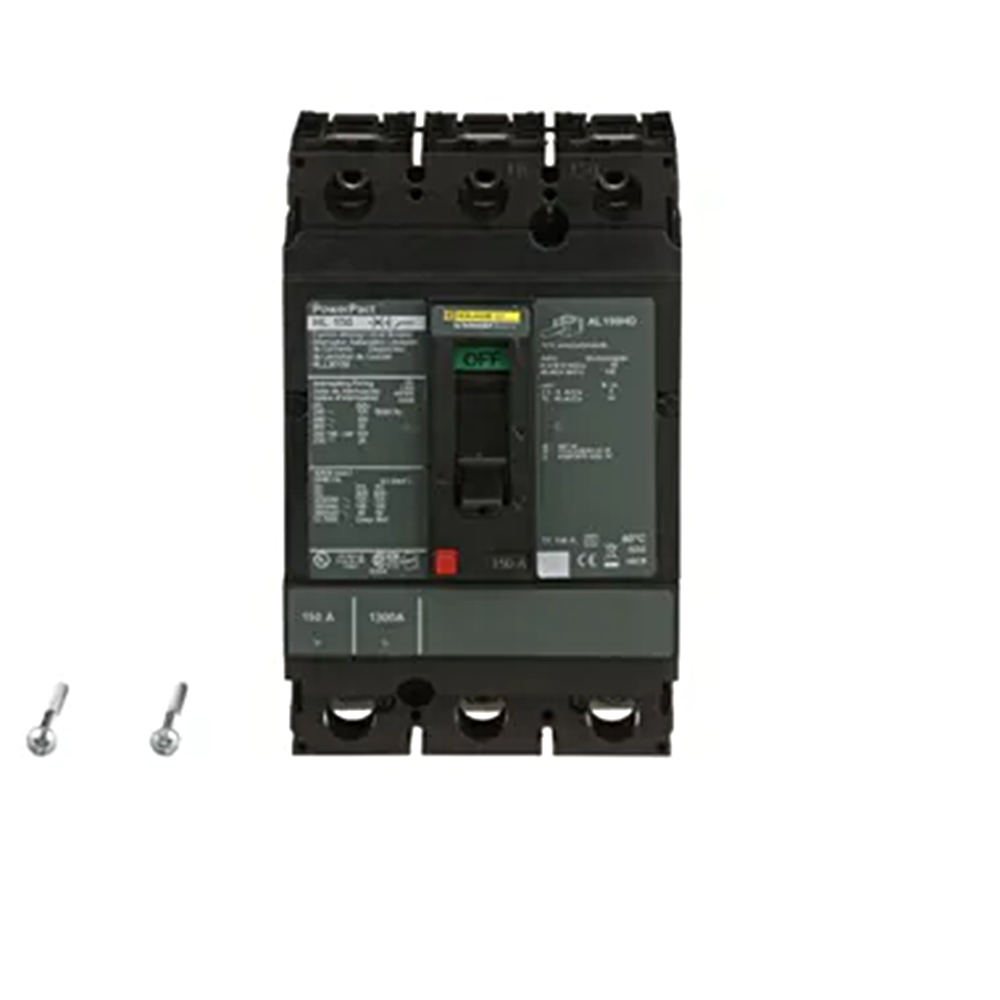

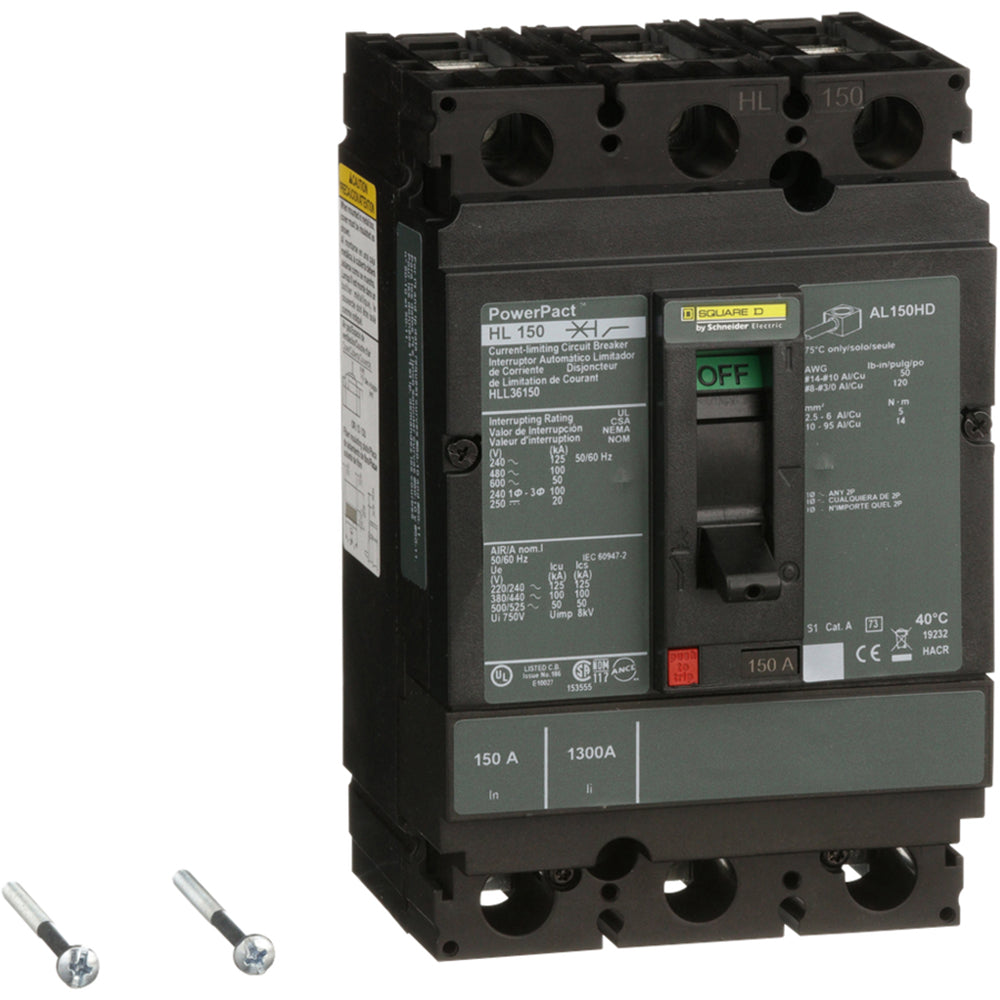

HLL36150 - Square D PowerPacT H Molded Case Circuit Breaker 150A 600VAC 3 Pole Thermal Magnetic

HLL36150

This circuit breaker features a 50kA interrupt rating at 600VAC, unit mount construction with line and load lugs, and an 80% rating. It is UL 489 listed and certified by CSA, NEMA, IEC, and other standards, ensuring reliable protection and compliance. The breaker is designed for industrial and commercial power distribution applications requiring robust current limiting and thermal magnetic protection.

Key Specifications
• Manufacturer: Square D
• Part Number: HLL36150
• Type: PowerPacT H Molded Case Circuit Breaker
• Amperage: 150A
• Voltage: 600VAC
• Poles: 3
• Interrupt Rating: 50kA at 600VAC
• Trip Unit: Thermal Magnetic
• Mounting Type: Unit Mount
• Frame/Series: HLL
• Certifications: UL 489, CSA, NEMA, IEC, CE
• Configuration: Line and Load Lugs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HLL36150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLL
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901683230
• GTIN : 00785901683230
• Country of Origin : United States

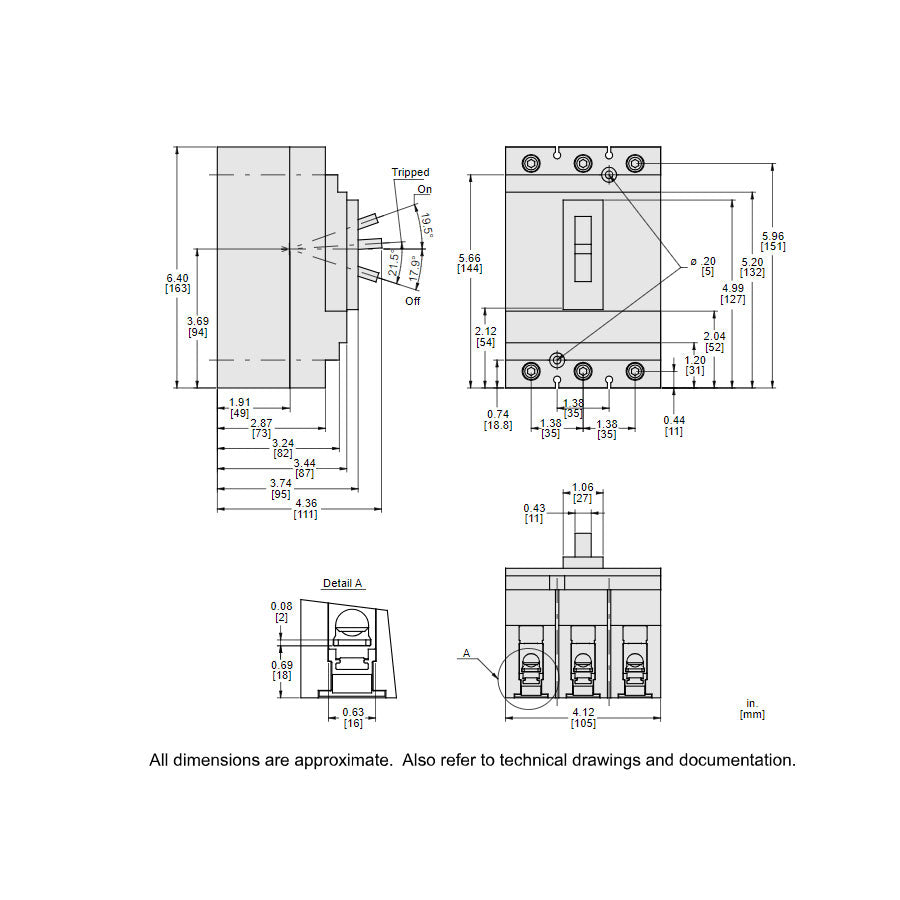

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.101
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
