HLL36125SA - Square D 125 Amp 600 Volt 3 Pole Molded Case Circuit Breaker PowerPact H Frame

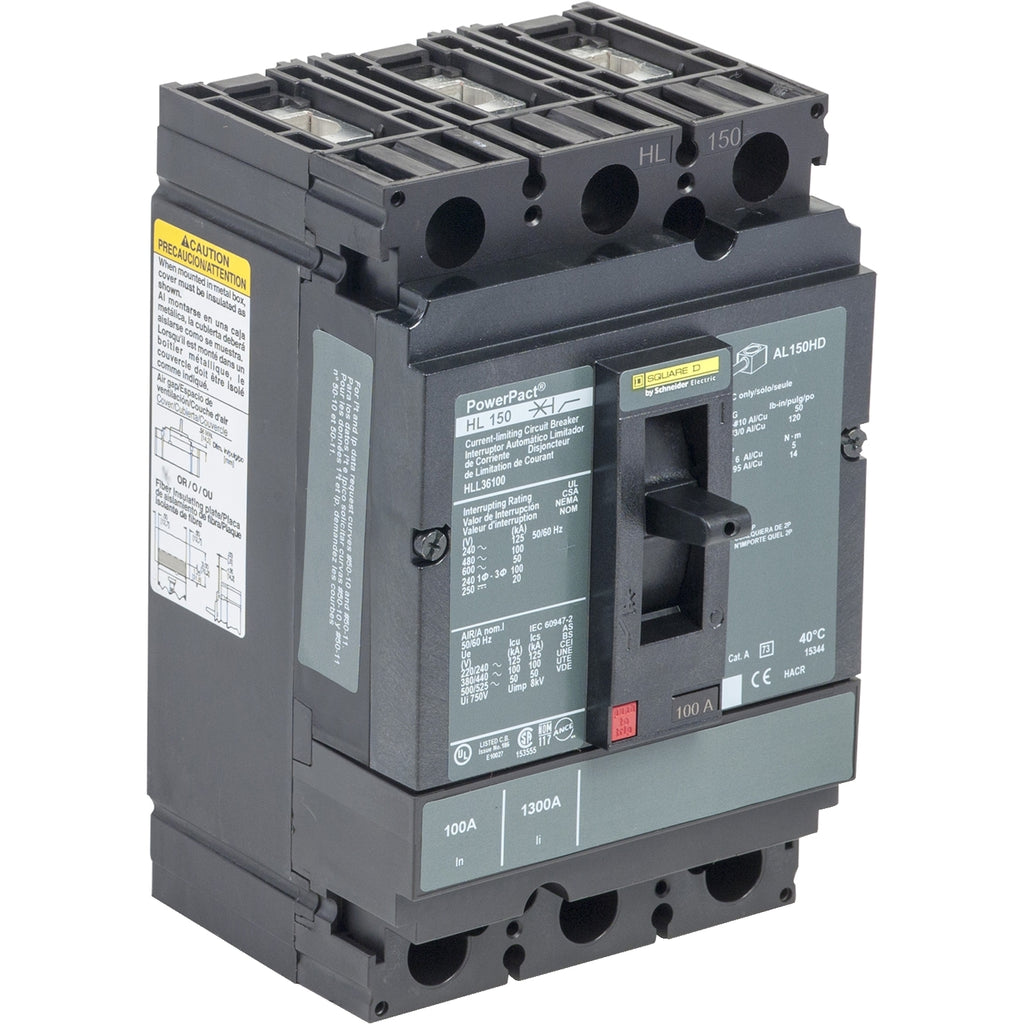

HLL36125SA

HLL36125SA is a Square D molded case circuit breaker designed for reliable power distribution protection.This 3 pole circuit breaker features a 125 amp rating and supports up to 600 volts AC with a thermal magnetic trip unit. It is part of the PowerPact H frame series and offers high interrupting capacity with 125 kA at 240 VAC, 100 kA at 480 VAC, and 50 kA at 600 VAC. The breaker includes line and load lug terminals for unit mounting and is UL 489 and CSA certified for industrial applications. It also supports 250 VDC with a 20 kA interrupt rating and includes a 110/130 VAC shunt trip option.

• Amperage: 125 Amp
• Voltage Rating: 600 VAC max, 250 VDC max
• Poles: 3 Pole
• Interrupt Rating: 125 kA at 240 VAC, 100 kA at 480 VAC, 50 kA at 600 VAC, 20 kA at 250 VDC
• Frame Type: PowerPact H Frame
• Trip Unit: Thermal Magnetic
• Mounting Type: Unit Mount
• Terminal Type: Lug (Line and Load)
• Wire Size Range: 14 to 3/0 AWG Aluminum/Copper
• Certifications: UL 489, CSA
• Shunt Trip: 110/130 VAC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 110/130Vac shunt trip

Specifications

• Part Number: HLL36125SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 78590182550
• GTIN : 00785901825500
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
