HLL36100M73 - Square D 100 Amp 3 Pole 600 Volt H Frame Molded Case Circuit Breaker

HLL36100M73

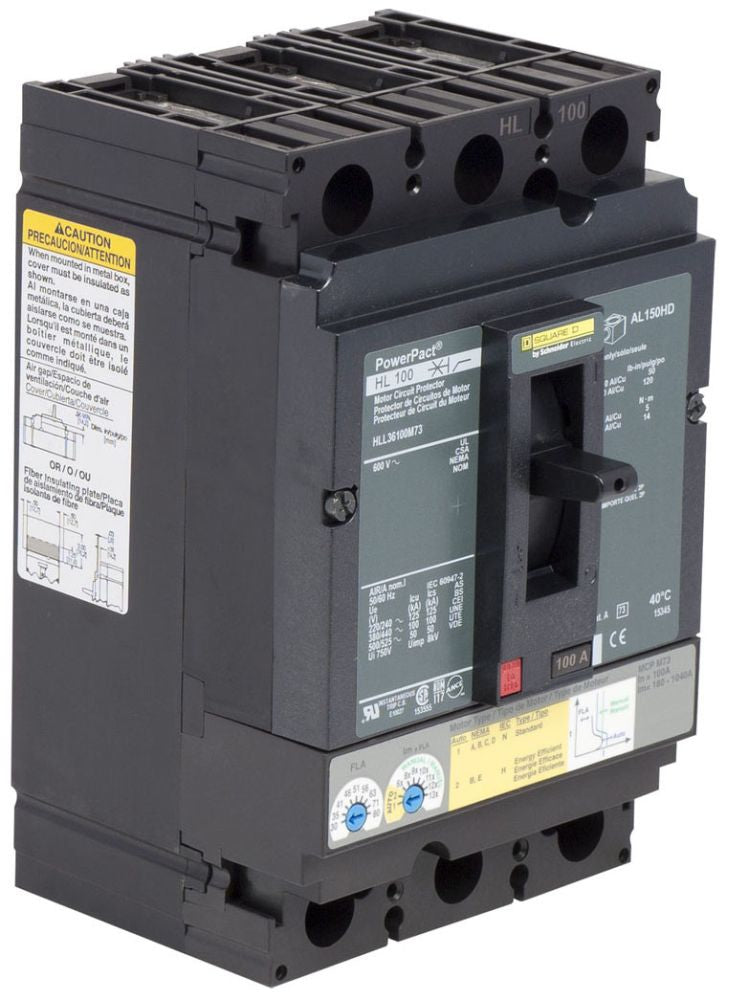

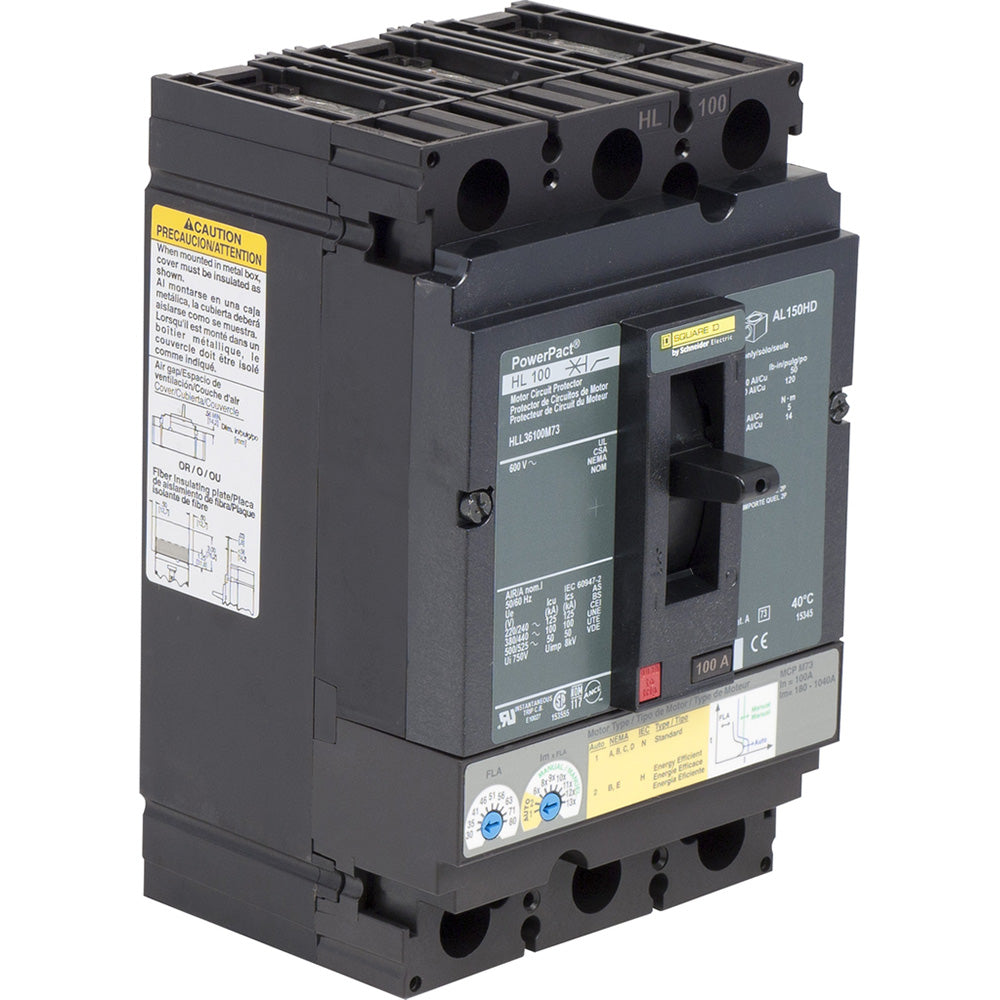

HLL36100M73 is a Square D molded case circuit breaker designed for motor protection with a 100 amp rating and 3 poles.This PowerPacT H Frame motor circuit protector offers a 50kA interrupt rating at 600 VAC, suitable for short circuit protection of motors. It features lugs on both line and load sides, a continuous current rating of 80%, and complies with UL, CSA, IEC standards, and is CE marked. The unit mount design accepts accessories compatible with PowerPacT H circuit breakers.

• Amperage: 100 Amp
• Voltage: 600 Volt AC
• Poles: 3
• Frame Type: H Frame (PowerPacT H)
• Interrupt Rating: 50kA at 600 VAC
• Mounting Type: Unit Mount
• Trip Unit: Instantaneous Trip
• Line and Load Side Lugs
• Continuous Current Rating: 80%
• Certifications: UL, CSA, IEC, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLL36100M73
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLL
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : I - Instantaneous
• Frame Size : H Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Magnetic Only

Product Data

• UPC : 785901914006
• GTIN : 00785901914006
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.376
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
