HLL36060 - Square D 60A 600V 3 Pole PowerPact H-Frame Circuit Breaker

HLL36060

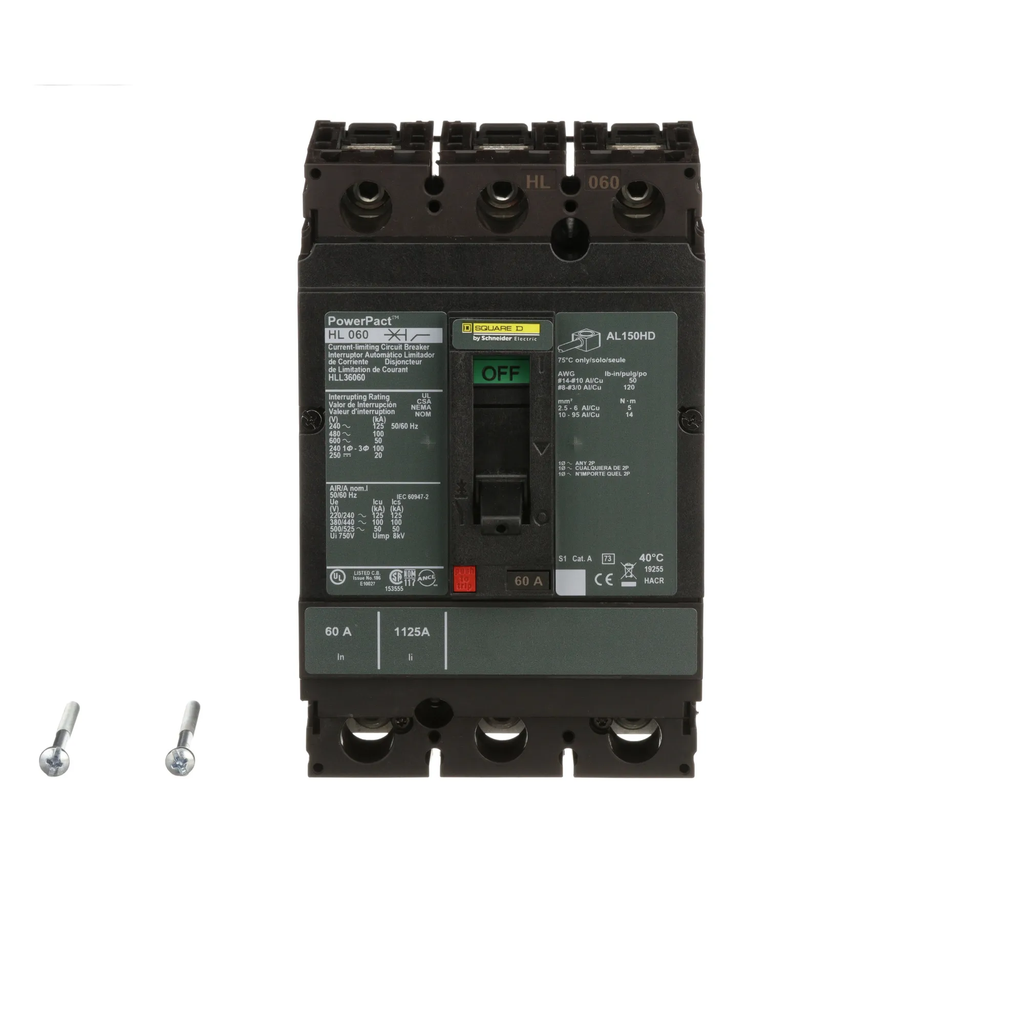

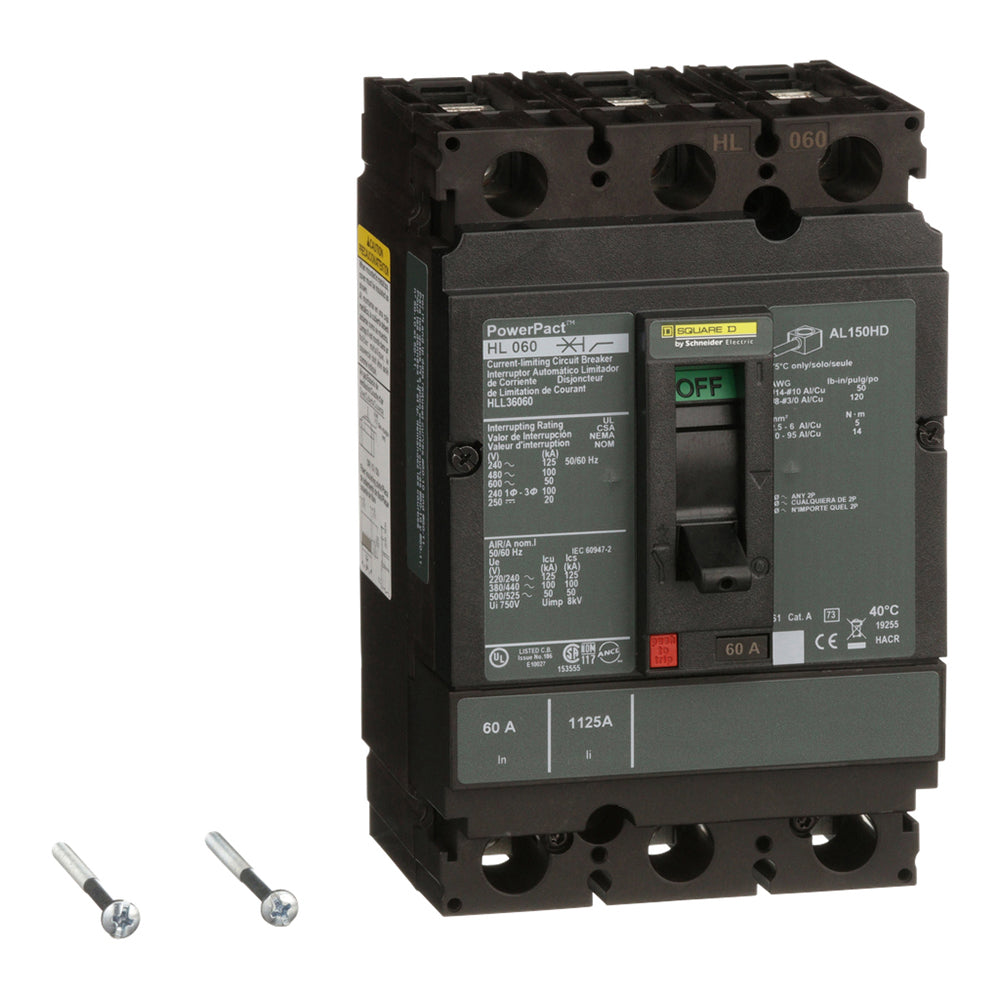

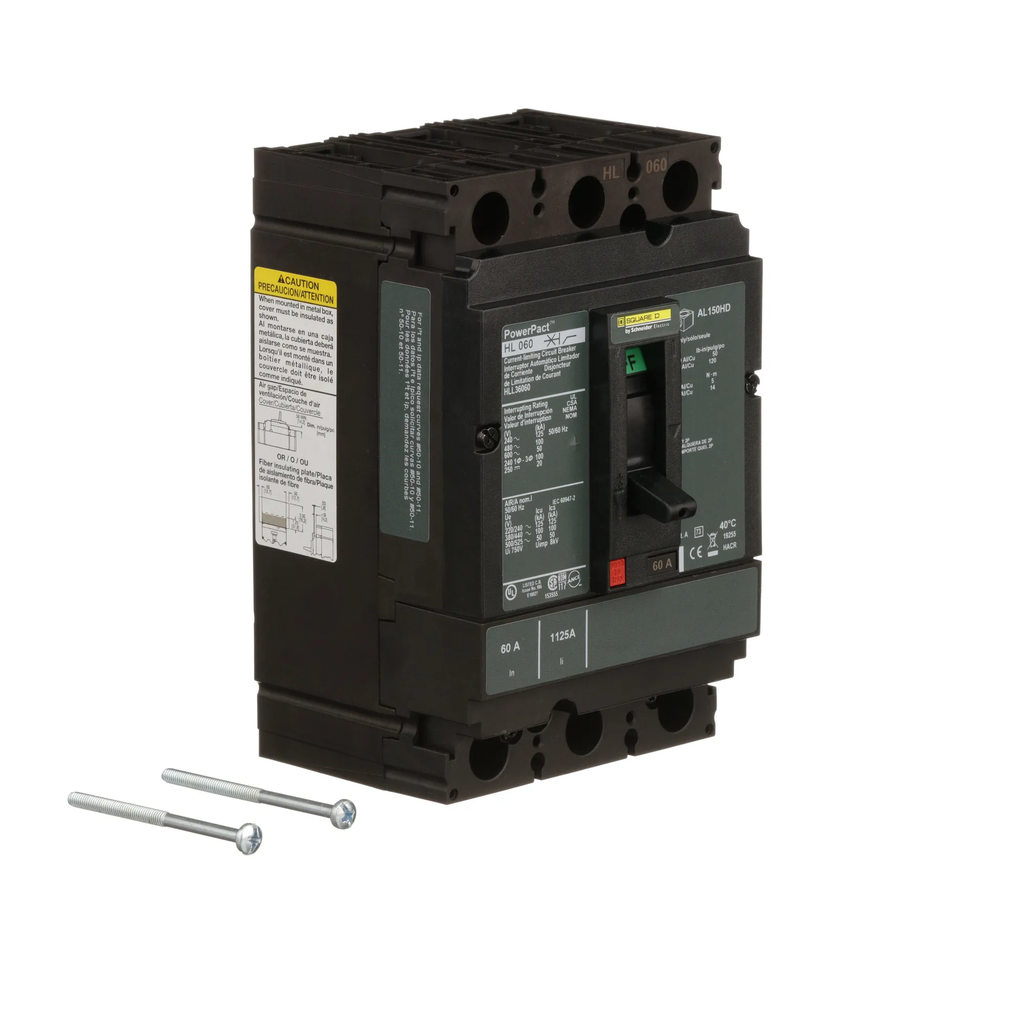

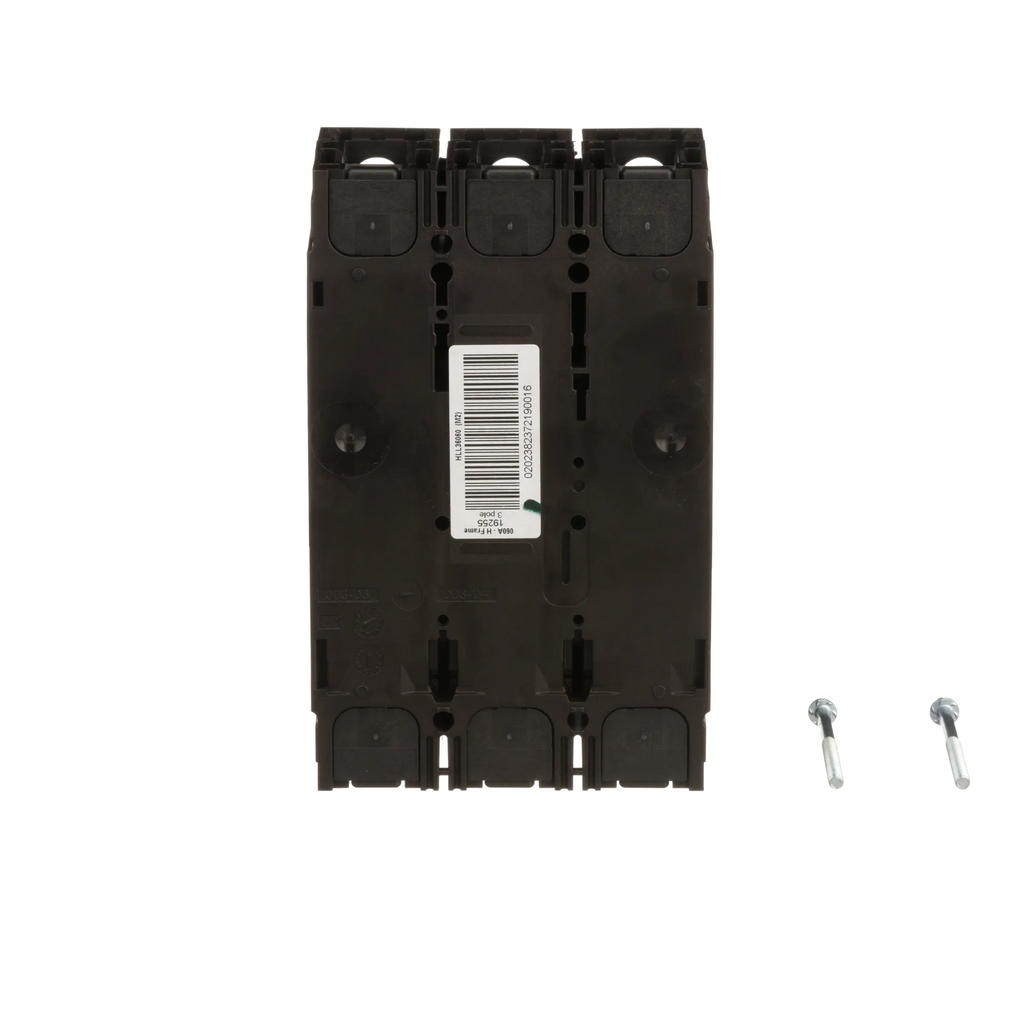

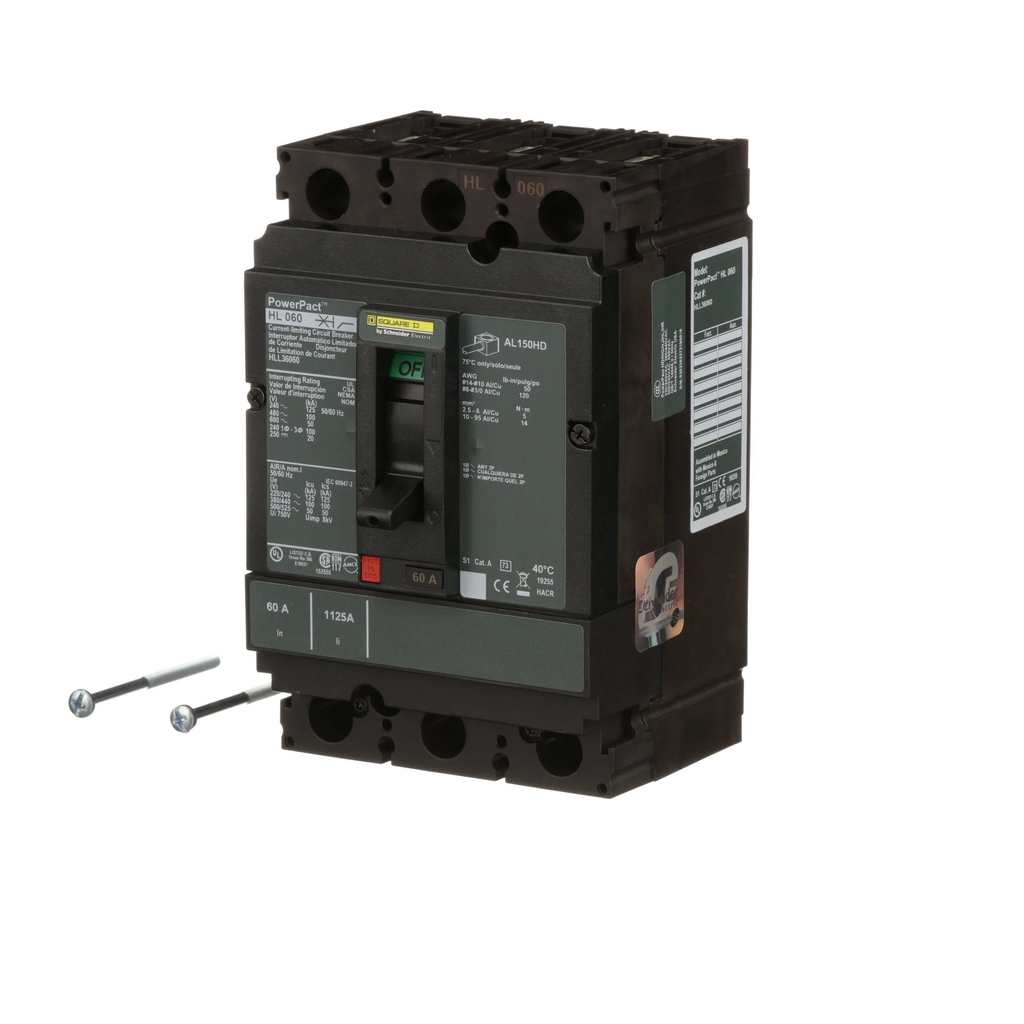

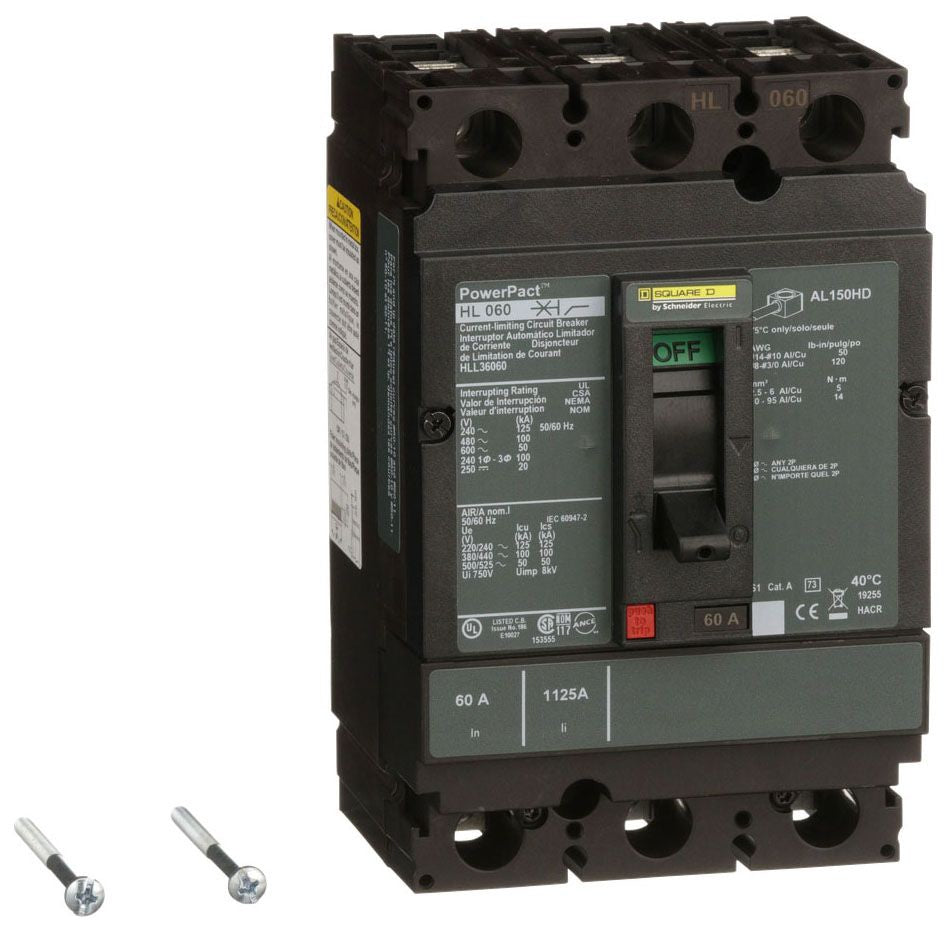

HLL36060 is a 3 pole, 60 amp, 600 volt molded case circuit breaker from Square D's PowerPact H-Frame series designed for reliable circuit protection.This thermal magnetic circuit breaker features a unit mount design with line and load side lug terminals and feed-thru connection. It has an interrupt rating up to 100kA at 480V AC and is suitable for both AC and DC applications. The breaker is UL, CSA, IEC, and CE certified, ensuring compliance with key safety standards.

Key Specifications
• Manufacturer: Square D
• Part Number: HLL36060
• Amperage Rating: 60 Amps
• Voltage Rating: 600 VAC / 500 VDC
• Number of Poles: 3
• Frame Size: H-Frame (PowerPact H Series)
• Interrupt Rating: 100kA @ 480V AC, 50kA @ 600V AC, 50kA @ 500V DC
• Trip Unit: Thermal Magnetic, Non-Interchangeable
• Mounting Type: Unit Mount
• Terminal Type: Lug Terminals (Line and Load)
• Connection: Feed-Thru
• Certifications: UL, CSA, IEC, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLL36060
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLL
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901883692
• GTIN : 00785901883692
• Country of Origin : Mexico

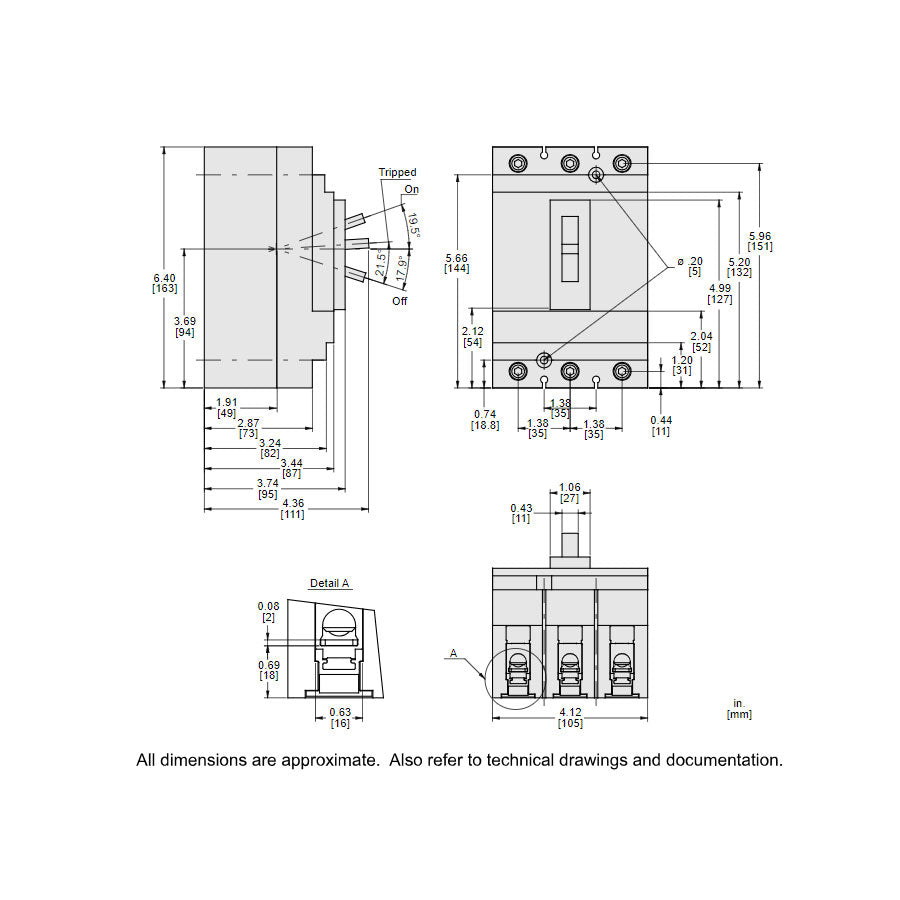

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.149
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
