HLL36020 - Square D 20 Amp 3 Pole 600VAC Molded Case Circuit Breaker PowerPact H Frame

HLL36020

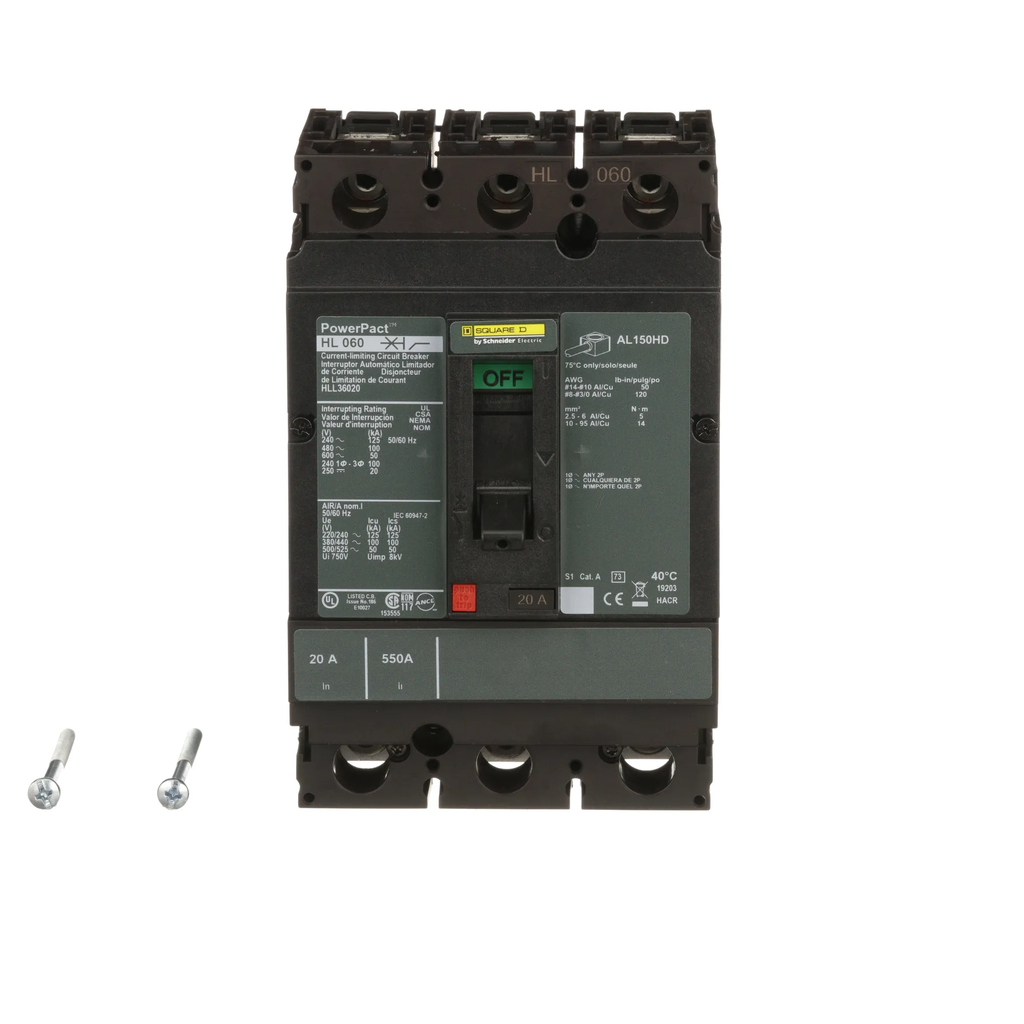

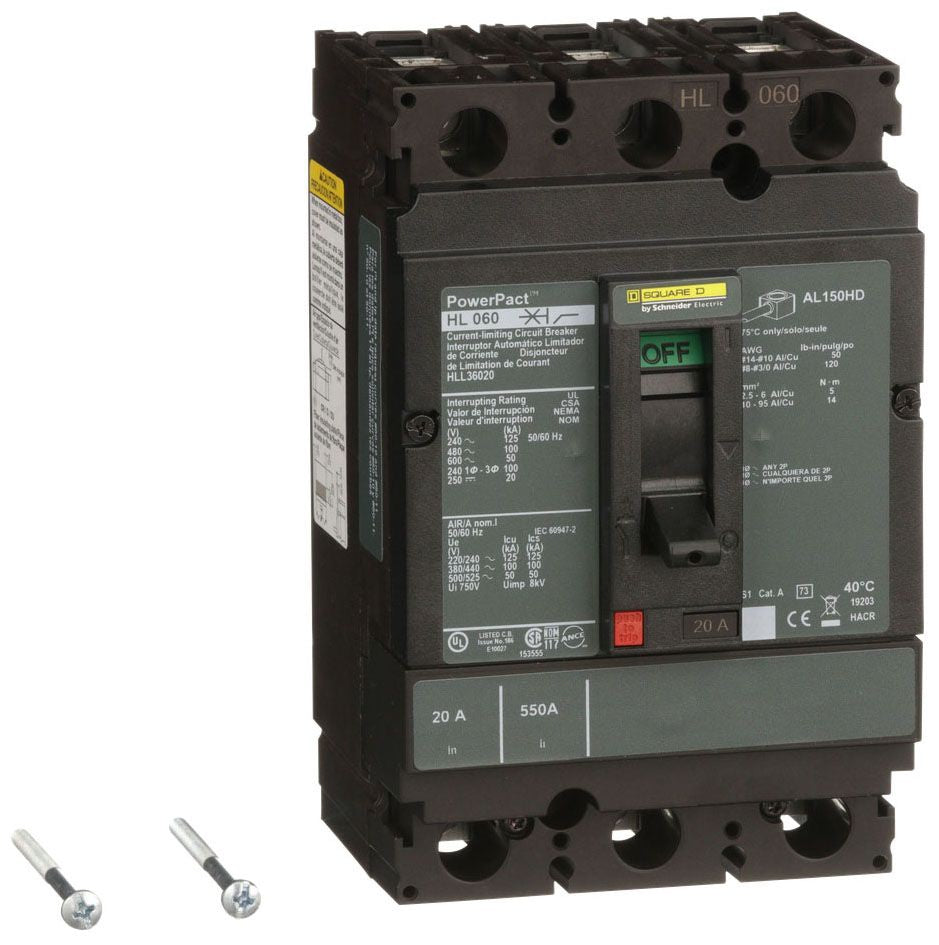

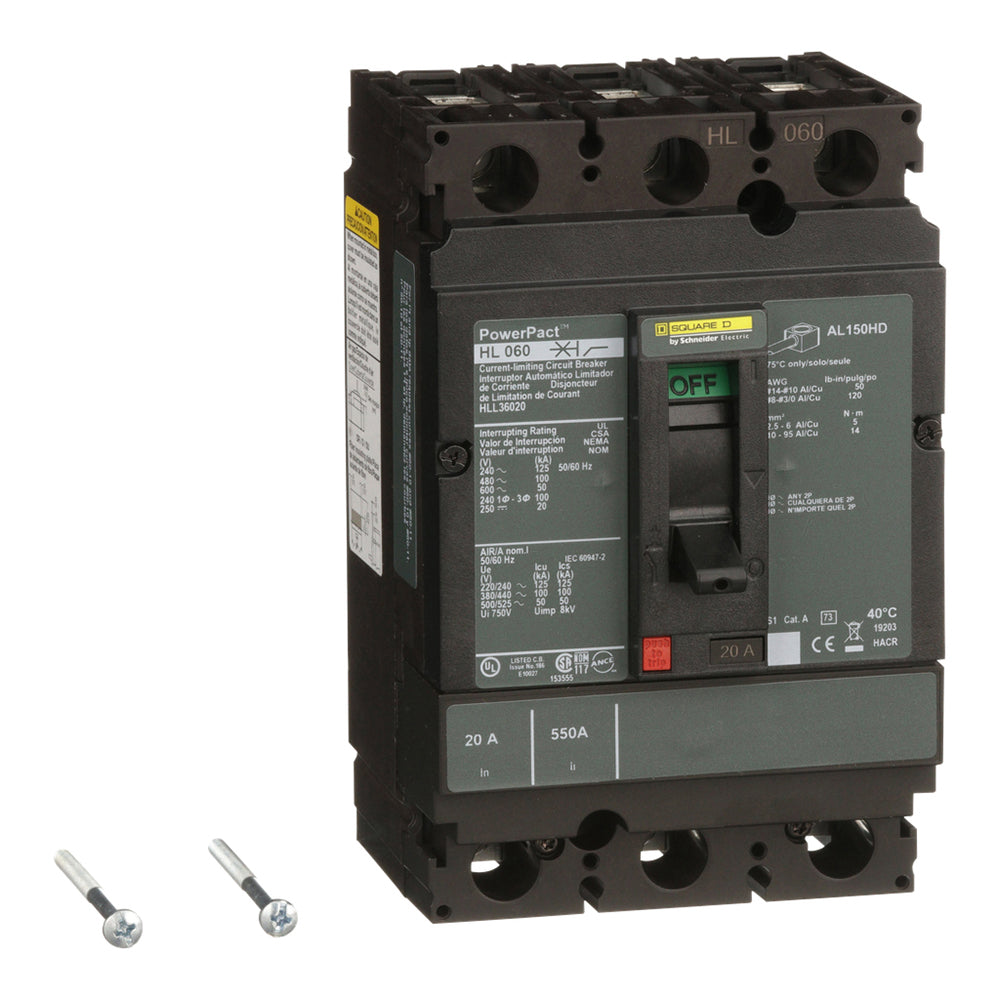

HLL36020 is a 3 pole, 20 amp molded case circuit breaker from Square D designed for reliable power distribution protection.This Square D HLL36020 circuit breaker features a thermal magnetic trip unit with a current rating of 20 amps and voltage ratings of 600/690VAC and 250/500VDC. It belongs to the PowerPact H frame series and offers a 50kA interrupt rating at 600VAC. The breaker is unit mount type with lug connections for line and load, and is UL 489 listed for safety and performance.

Key Specifications
• Amperage: 20 Amps
• Voltage Rating: 600/690VAC, 250/500VDC
• Poles: 3 Pole
• Mounting Type: Unit Mount
• Interrupt Rating: 50kA at 600VAC
• Series/Frame: PowerPact H Frame
• Trip Unit: Thermal Magnetic
• Connection Type: Lug Line and Load
• Certifications: UL 489 Listed
• Continuous Current Rating: 80%
• Breaking Capacity Code: L

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLL36020
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLL
• Voltage : 600
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901683094
• GTIN : 00785901683094
• Country of Origin : Mexico

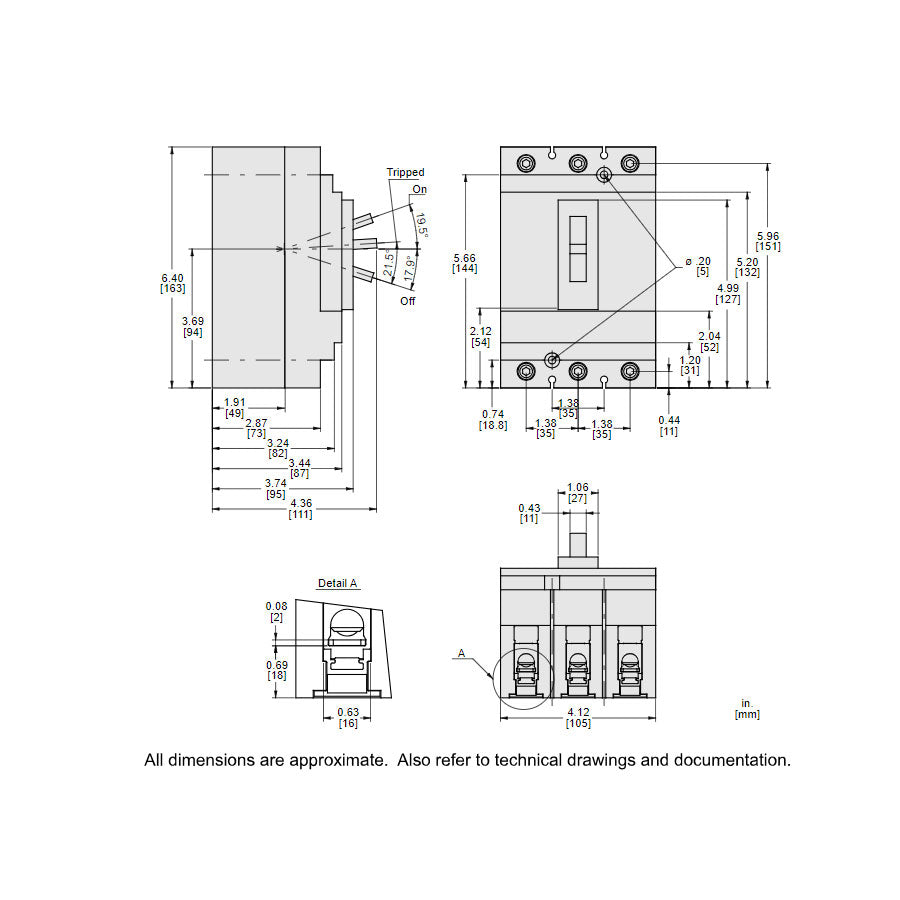

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.101
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
