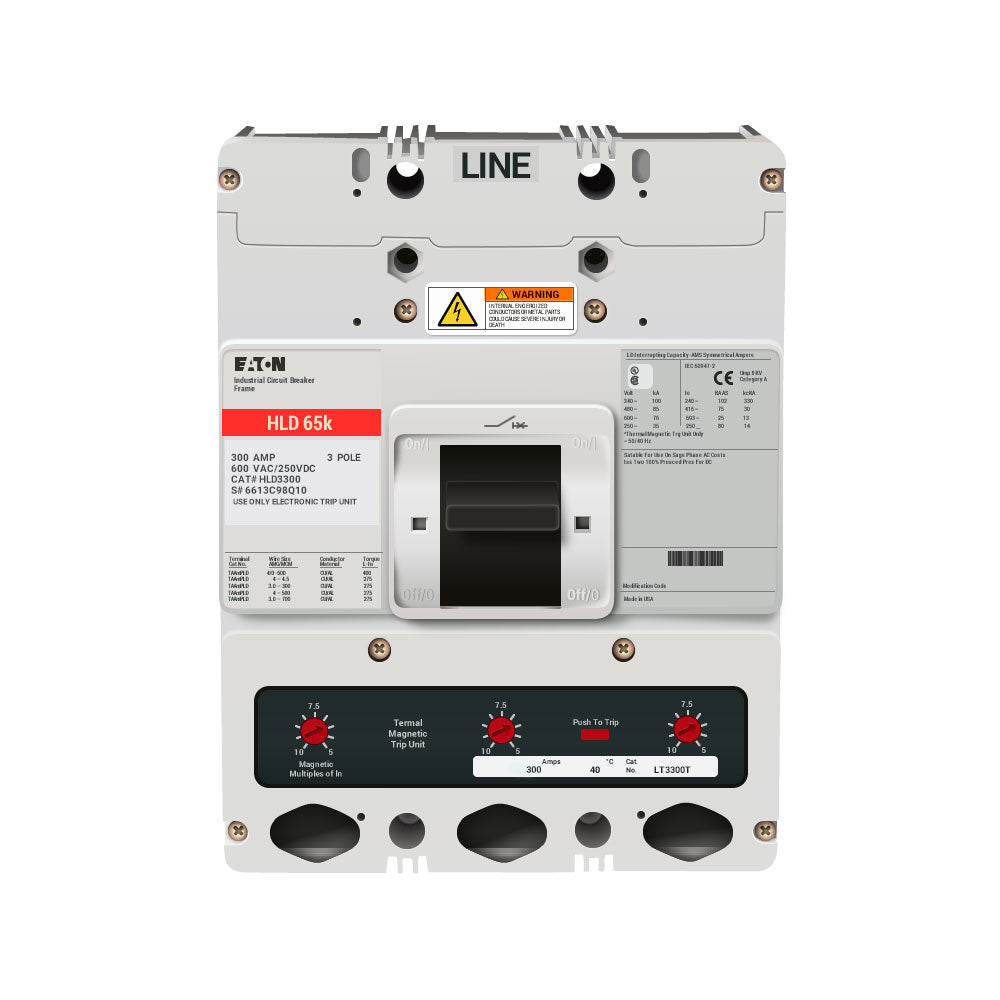

HLD3300Y - Eaton 300 Amp 600 Volt 3 Pole L-Frame Molded Case Circuit Breaker

HLD3300Y

HLD3300Y is an Eaton Series C molded case circuit breaker rated for 300 amperes at 600 volts with three poles and L-frame construction. This thermal magnetic breaker features fixed long-time and instantaneous trip functions, delivering high interrupting capacity suitable for industrial and commercial power distribution applications. The unit includes line and load side lug terminals for feed-thru connections and is designed for 40 degree C ambient temperature operation at 50/60 Hz. Key Specifications

• Manufacturer: Eaton Cutler-Hammer
• Part Number: HLD3300Y
• Amperage: 300 Amp
• Voltage: 600 VAC
• Poles: 3 Pole
• Frame Type: L Frame
• Series: Series C
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Functions
• Interrupt Rating: 65 kA at 480 Volt
• Connection Type: Feed-Thru Bolt-On
• Dimensions: 8.25 inches Height x 8.25 inches Width x 8.25 inches Depth
• Weight: 21 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLD3300Y
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HLD
• Voltage : 600
• Amperage : 300
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• Weight : 22
