HLD3300W - Eaton C Series L-Frame 300A 600VAC 3 Pole Molded Case Circuit Breaker

HLD3300W

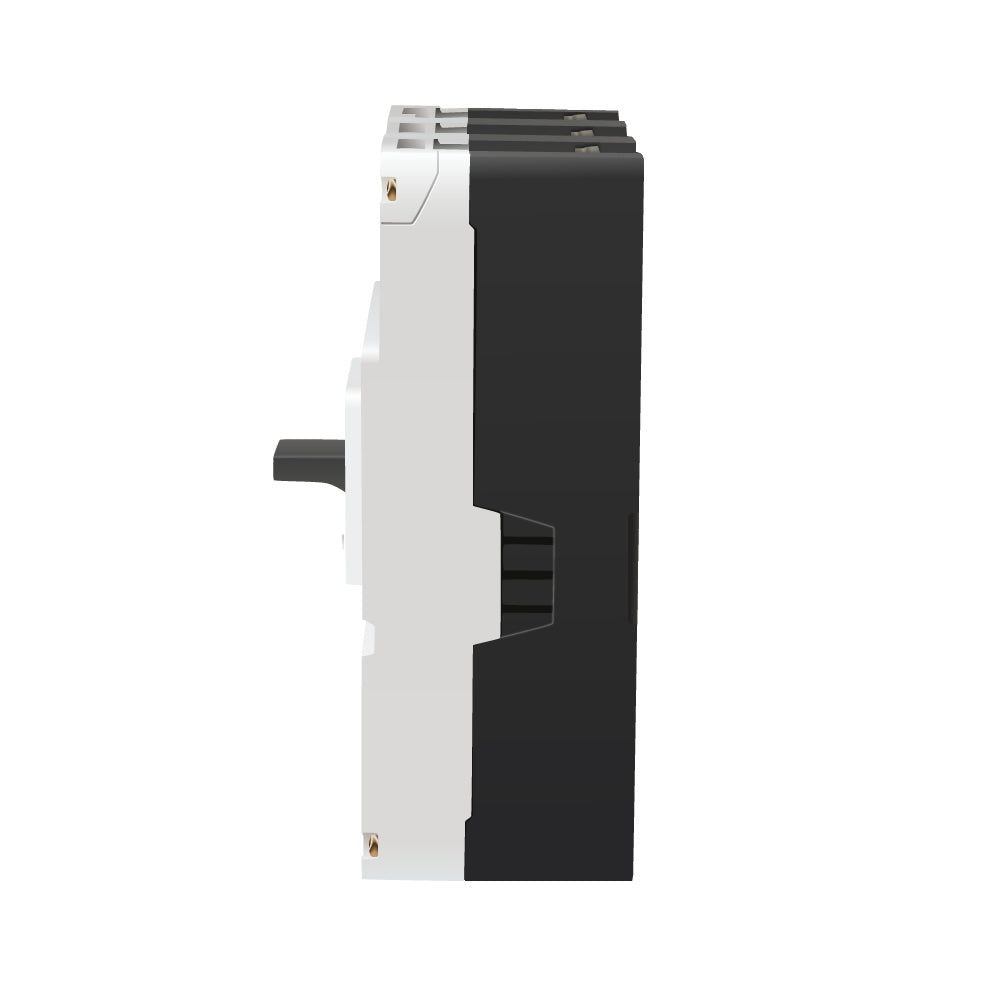

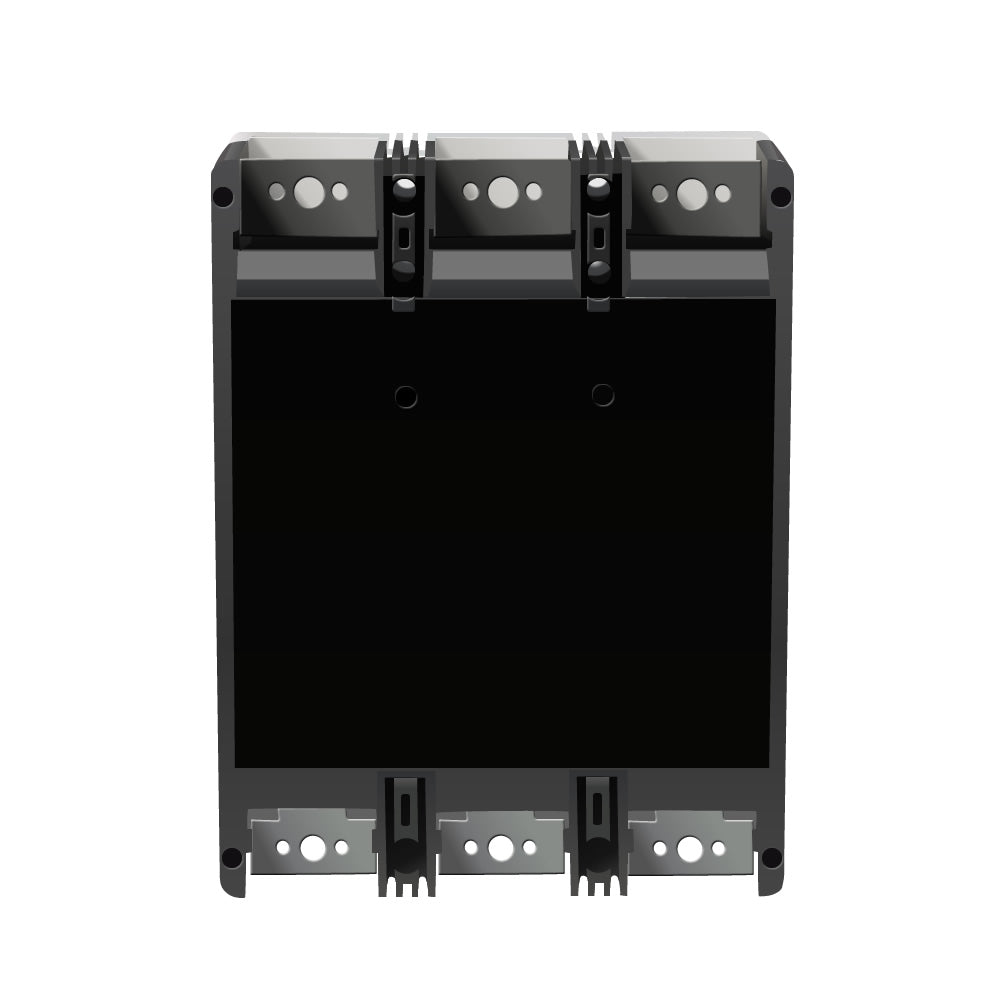

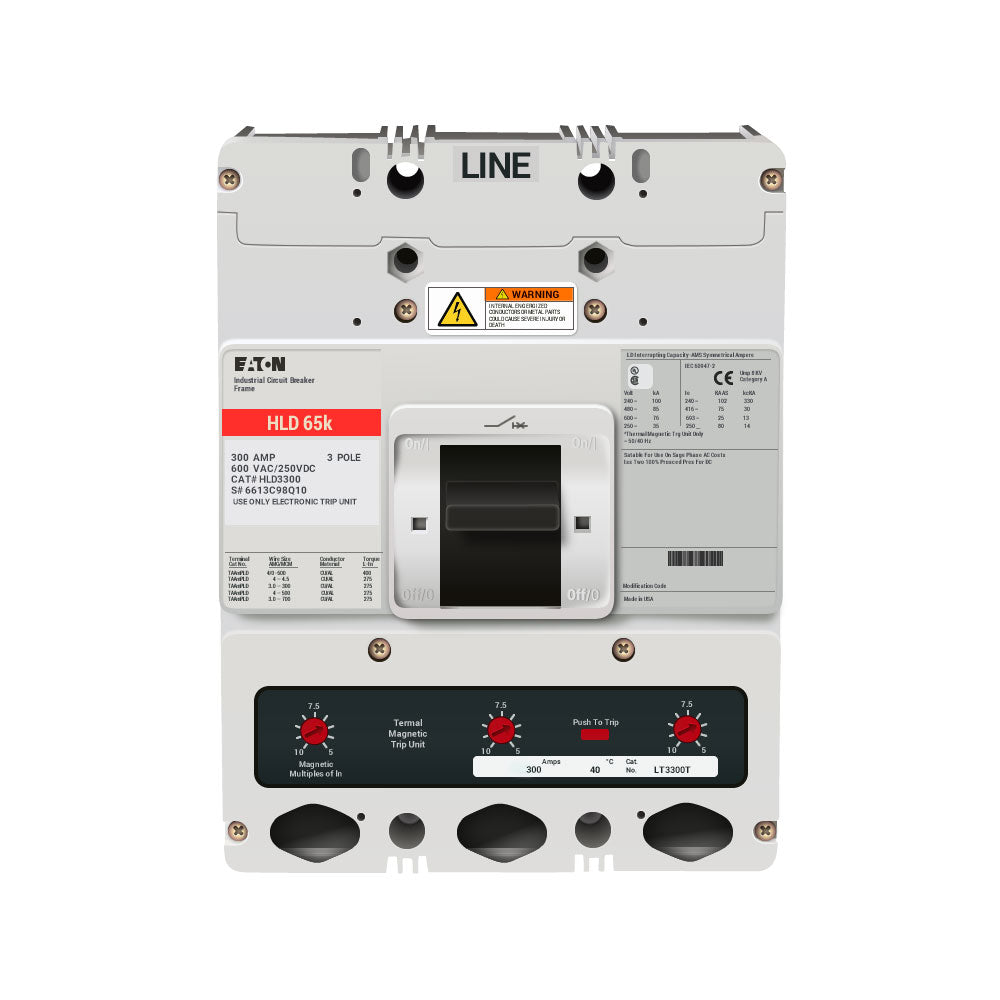

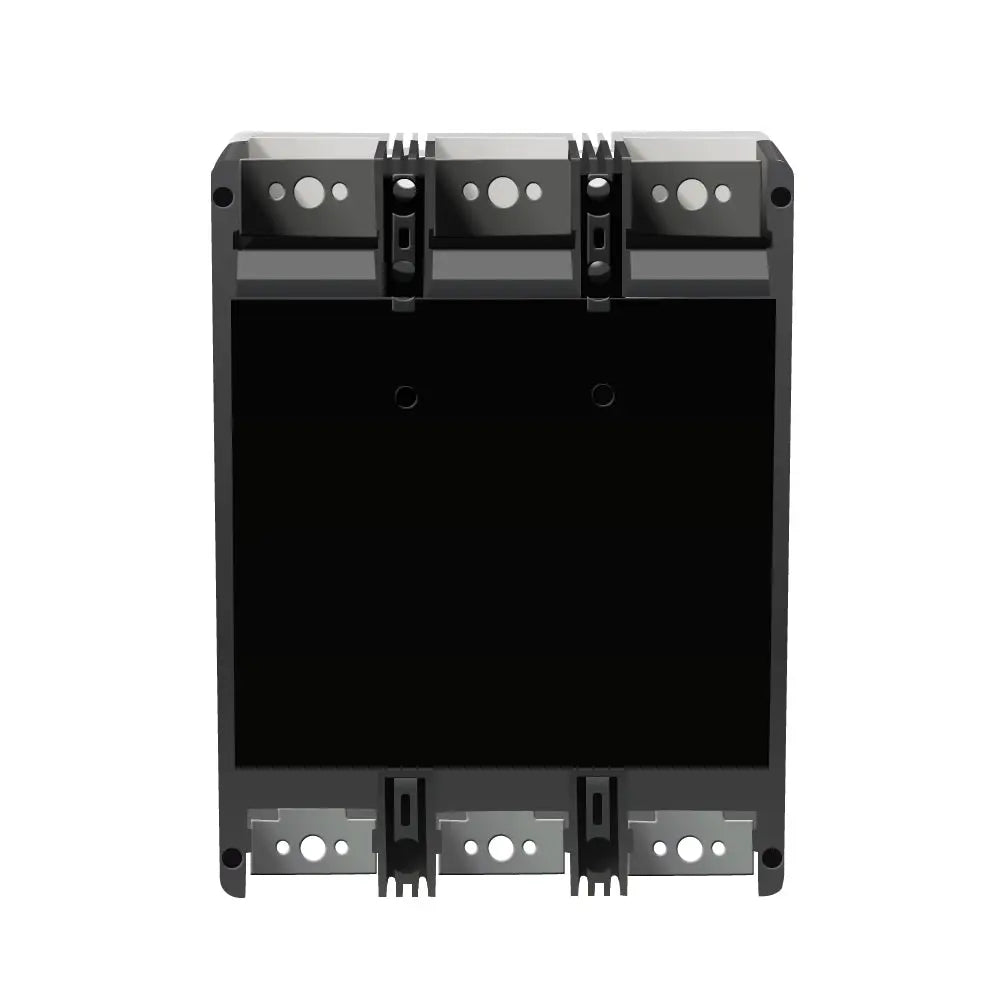

HLD3300W is a three-pole molded case circuit breaker from Eaton's C Series, designed for reliable protection in industrial and commercial power distribution systems. This breaker features a fixed thermal and fixed magnetic trip unit, providing consistent overcurrent protection for demanding applications.Engineered with an L-frame design, the HLD3300W offers a bolt-on mounting configuration for secure installation. It is rated for 300 amps at 600 volts AC and 250 volts DC, with a high interrupt rating of 65/100 kA, ensuring robust performance under fault conditions. The breaker is suitable for use in a wide range of electrical environments where dependable circuit protection is required.

• Part Number: HLD3300W
• Manufacturer: Eaton
• Series: C Series
• Frame Type: L-Frame
• Mounting Type: Bolt-On
• Amperage: 300 A
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Interrupt Rating: 65/100 kA
• Series: C Series
• Trip Unit: Fixed Thermal/Fixed Magnetic

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: HLD3300W
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HLD
• Voltage : 600
• Amperage : 300
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 782114984253
• GTIN : 00782114984253
• Country of Origin : United States
• Dimensions : 11 in x 7.5 in x 7.5 in (Length/Depth x Height x Width)
• Weight : 20
• Certification : UL Listed
