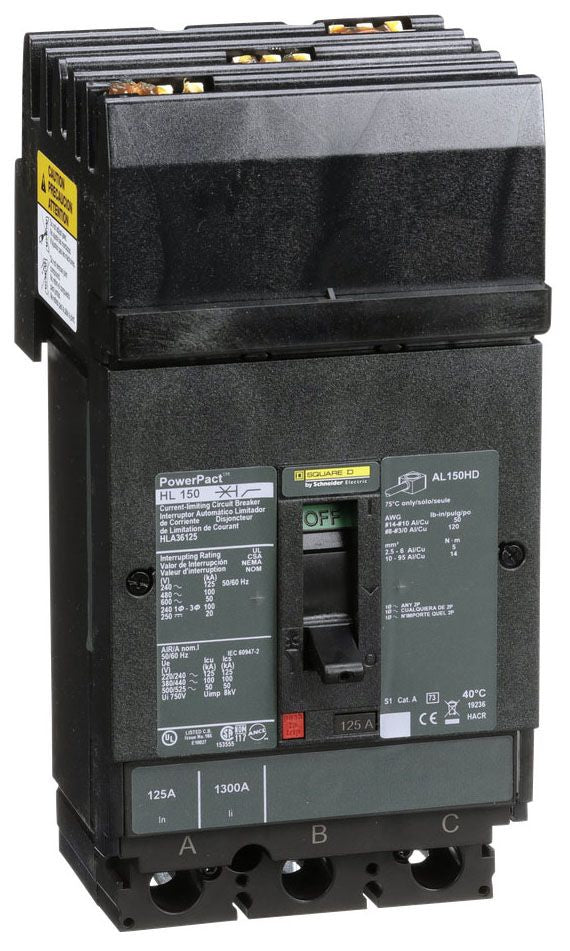

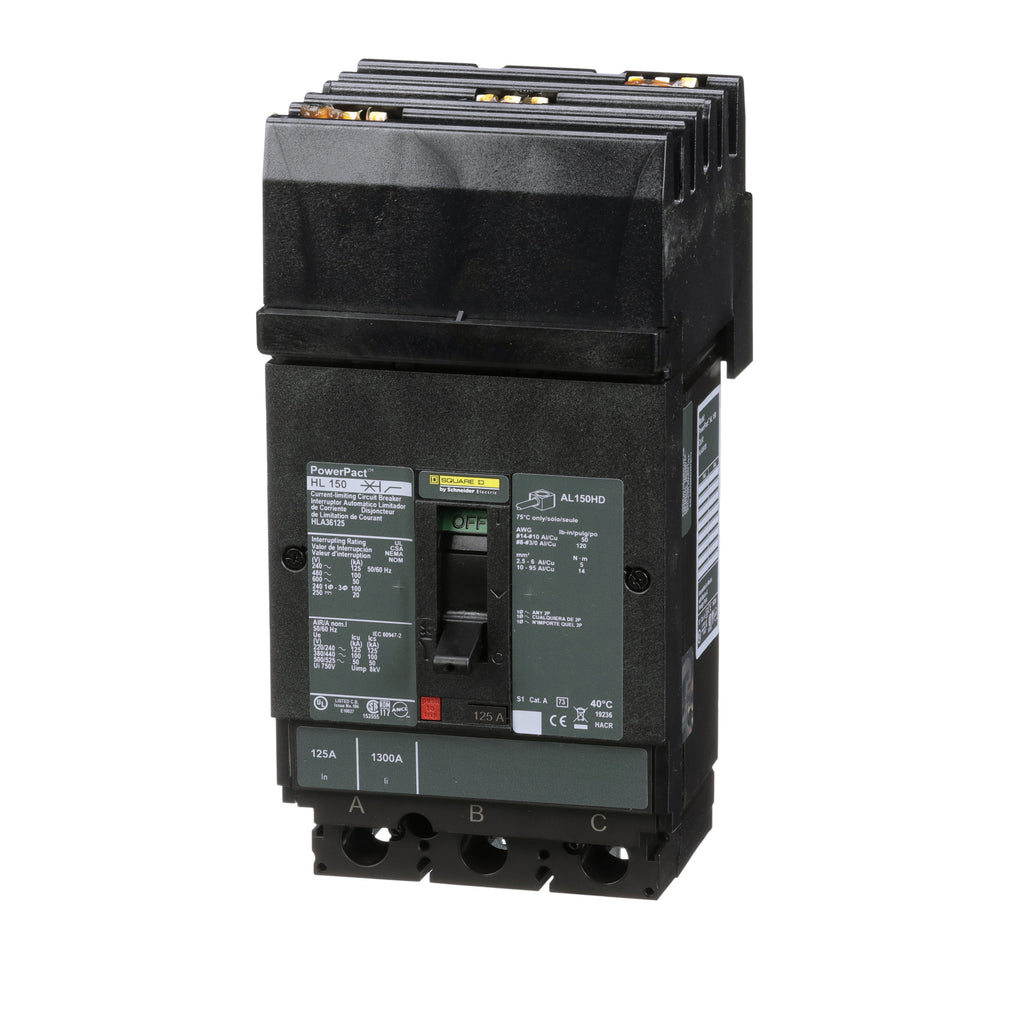

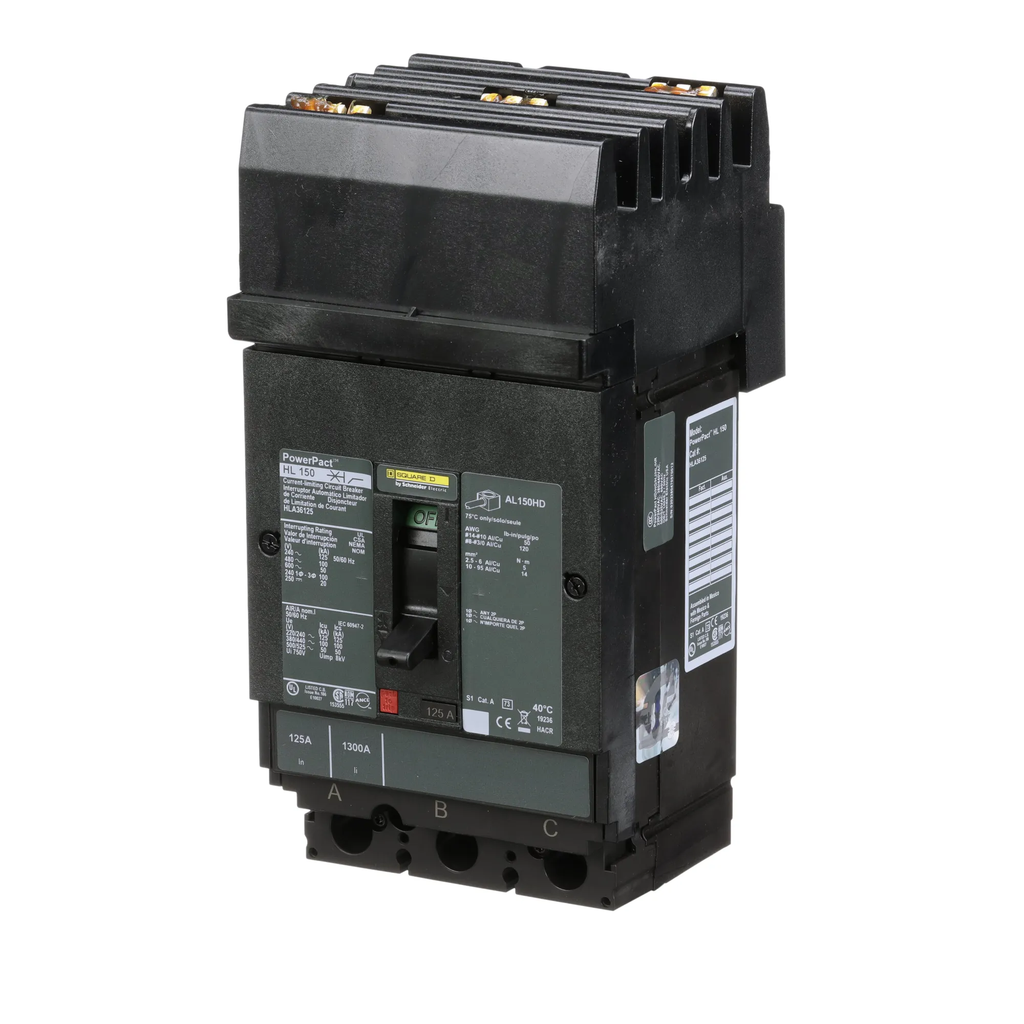

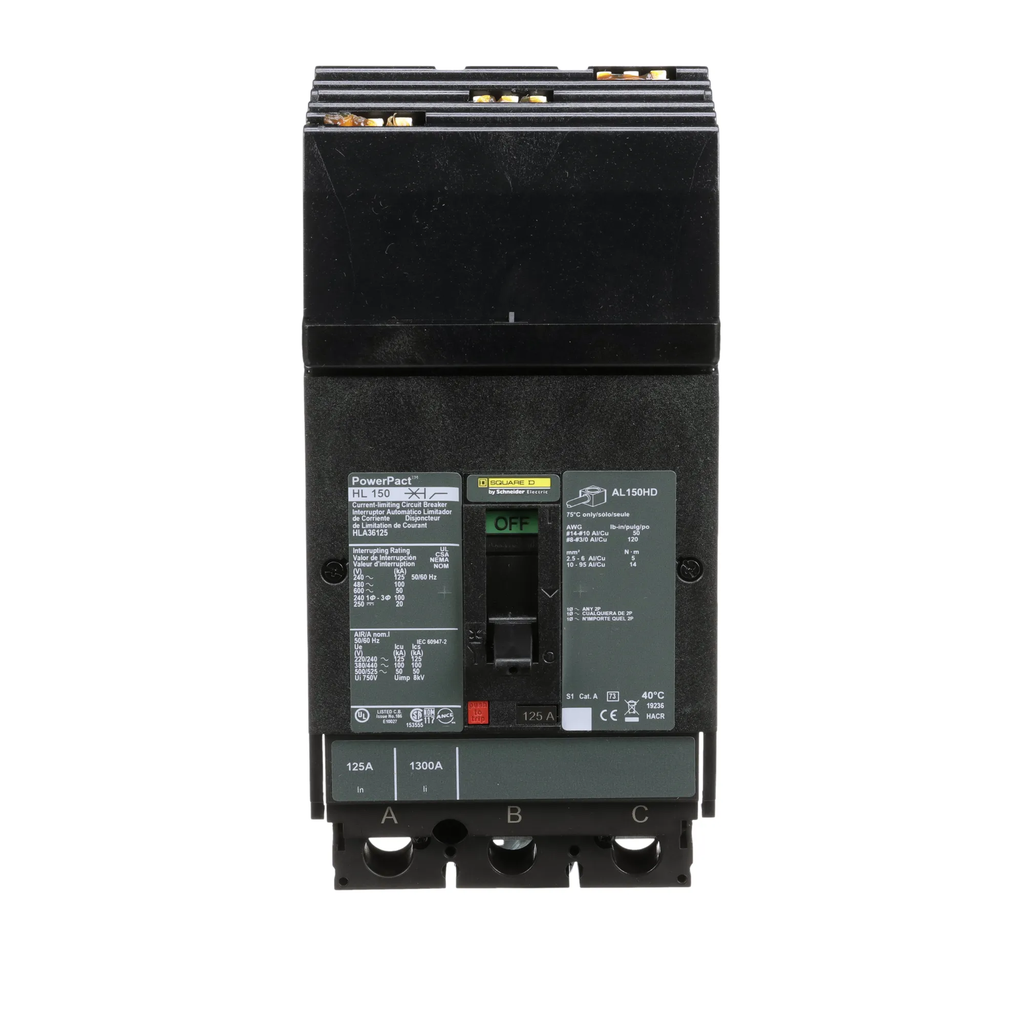

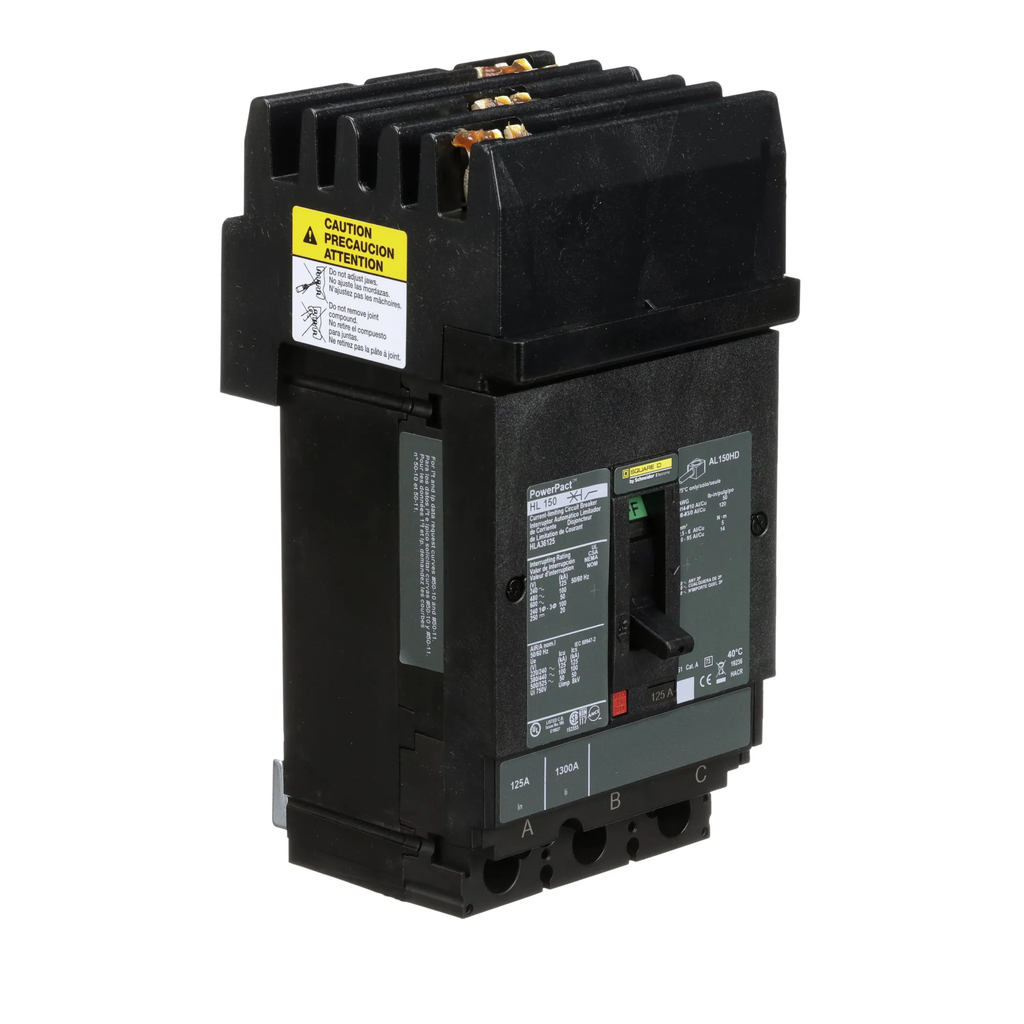

HLA36125 - Square D 125 Amp 600V 3 Pole Thermal Magnetic Circuit Breaker I-Line Frame HLA

HLA36125

HLA36125 is a Square D 125 Amp 3 Pole thermal magnetic molded case circuit breaker designed for 600V applications with I-Line mounting.This circuit breaker features a PowerPact H frame with a 50kA interrupt rating at 600VAC, suitable for industrial and commercial power distribution. It uses thermal magnetic trip technology for reliable overcurrent protection and is UL, CSA, and CE certified. The breaker supports 80% rated current and is designed for I-Line panelboard and switchboard installations.

• Amperage: 125A
• Voltage: 600VAC
• Poles: 3
• Frame Type: HLA (PowerPact H)

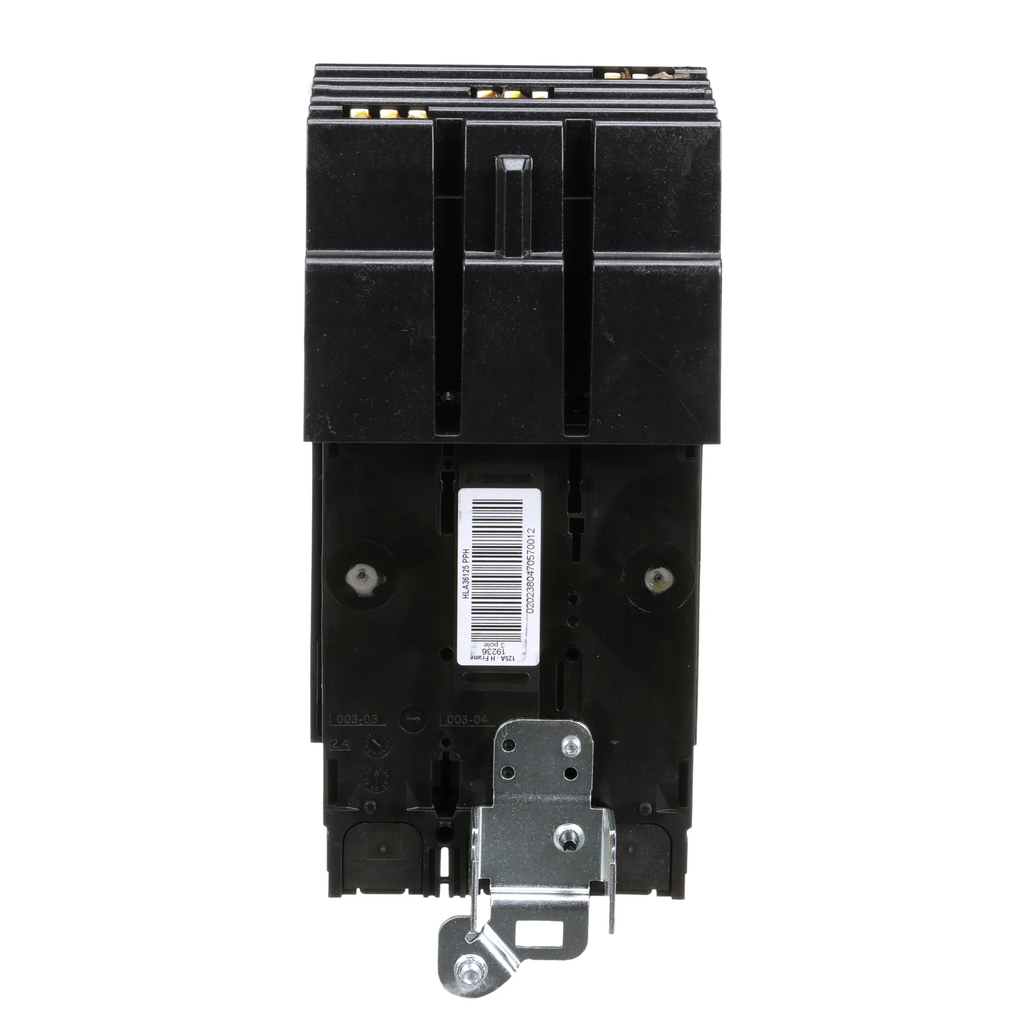

• Mounting Type: I-Line
• Interrupt Rating: 50kA at 600VAC
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, CSA, CE
• Current Limiting Type
• 80% Rated Current
• Compatible with I-Line panelboards and switchboards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLA36125
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLA
• Voltage : 600
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901700654
• GTIN : 00785901700654
• Country of Origin : United States

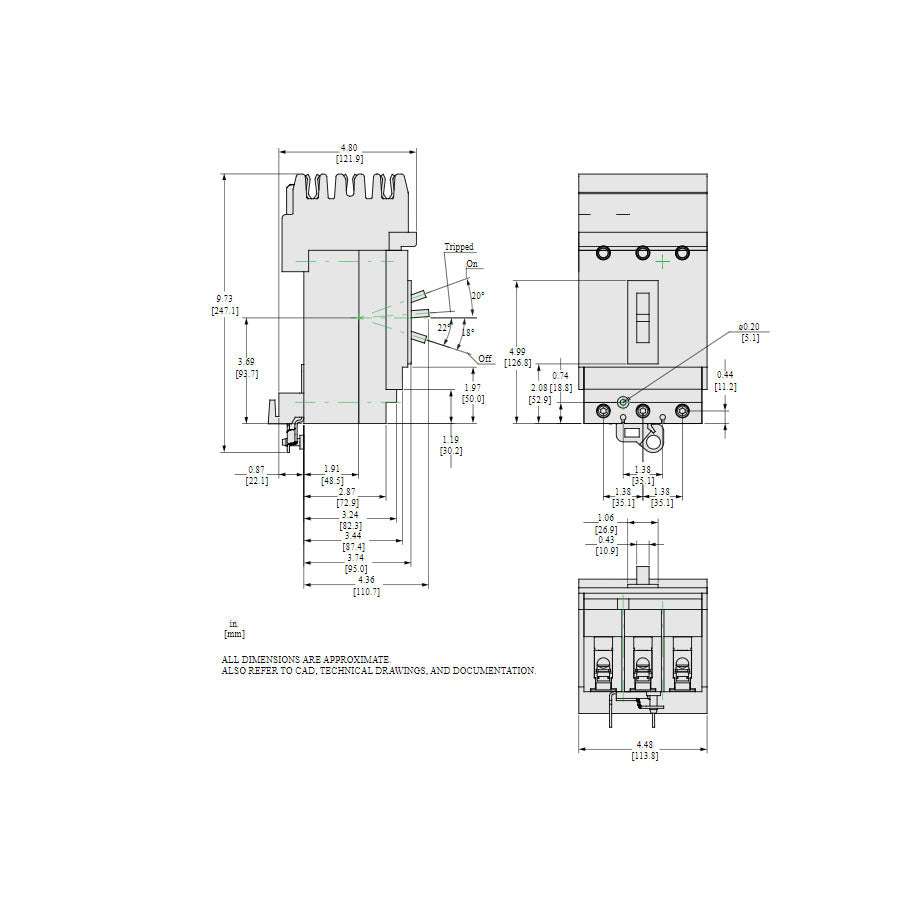

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.93
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
