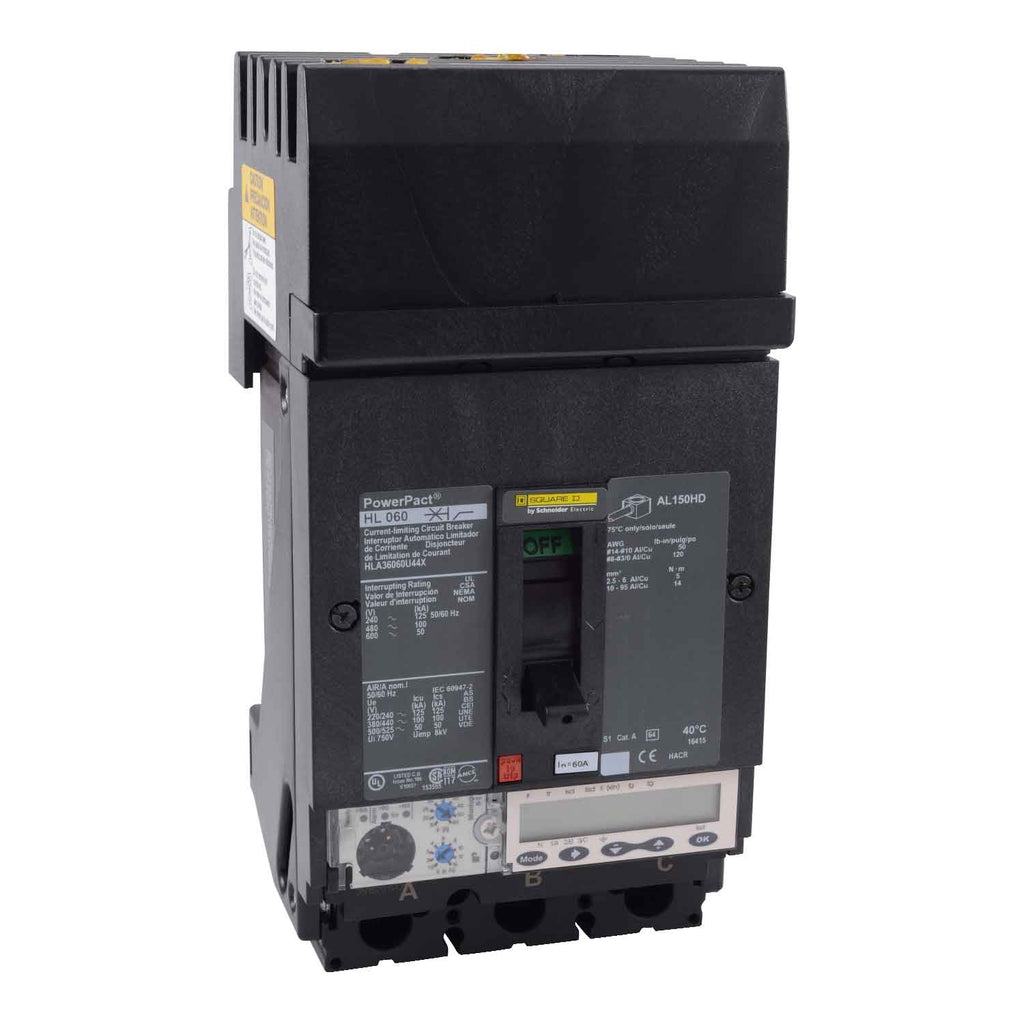

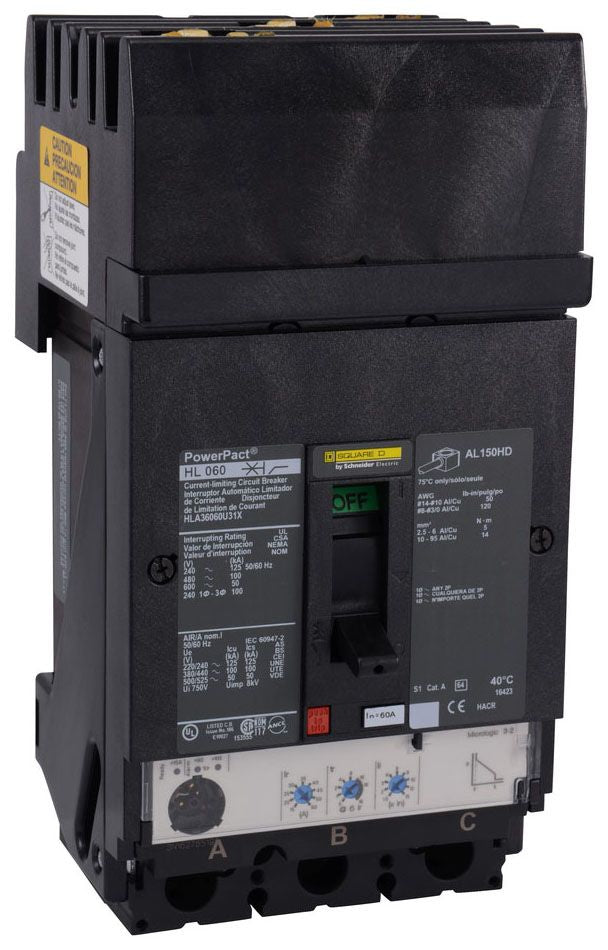

HLA36060U44X - Schneider Electric PowerPact H Circuit Breaker 60A 3-Pole 600VAC 50kA I-Line Micrologic 6.2A

HLA36060U44X

This 60 Amp, 3-pole molded case circuit breaker operates at 600VAC and features a 50kA interrupt rating. It includes an I-Line frame and a Micrologic 6.2A electronic trip unit with LSIG (Long-time, Short-time, Instantaneous, Ground-fault) protection. The breaker is suitable for ABC phase connection and provides advanced protection with an 80% rated continuous current setting.

Key Specifications
• Amperage: 60 Amp
• Voltage Rating: 600VAC
• Poles: 3
• Interrupt Rating: 50kA
• Frame/Series: PowerPact H, I-Line
• Trip Unit: Micrologic 6.2A LSIG
• Mounting Type: I-Line
• Phase Connection: ABC
• Continuous Current Rating: 80%

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: HLA36060U44X
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLA
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State



Product Data

• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.9
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
