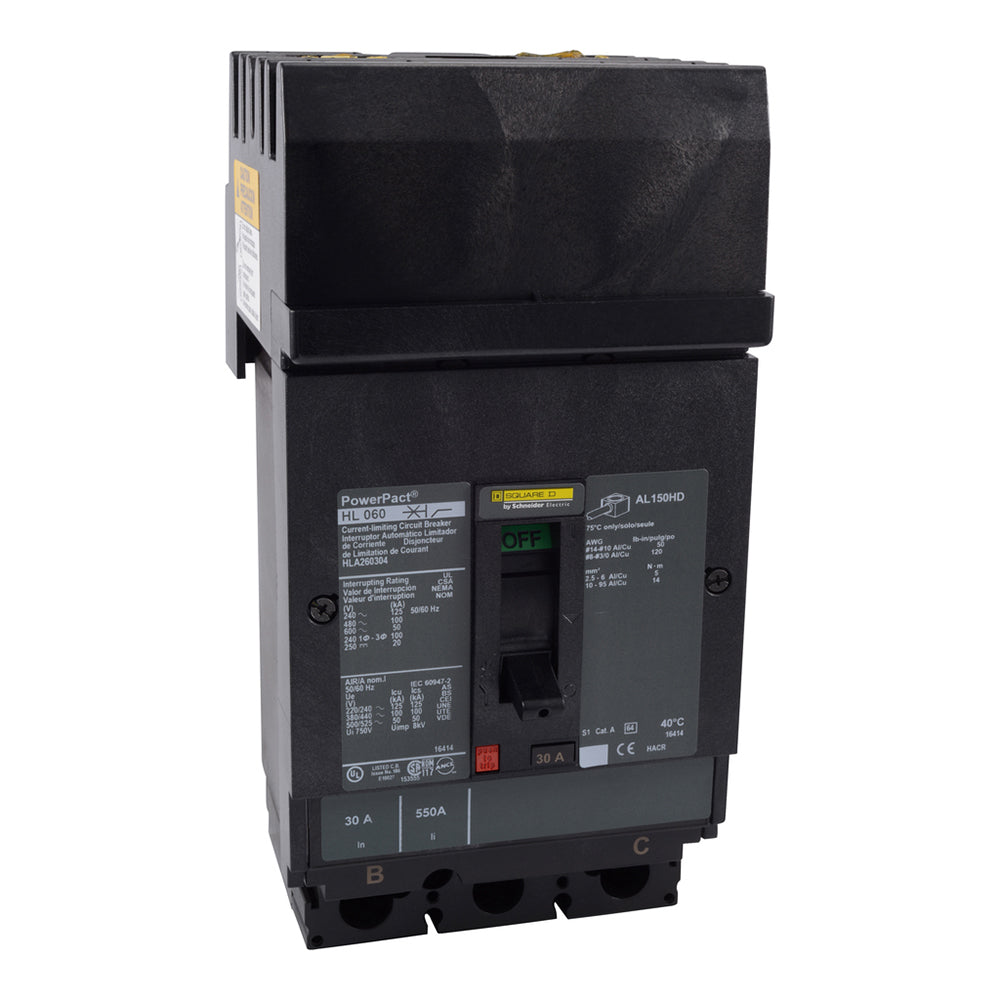

HLA360306 - Square D PowerPact H 3-Pole 30A 600V 50kA Circuit Breaker

HLA360306

HLA360306 is a Square D PowerPact H series molded case circuit breaker designed for reliable circuit protection in industrial and commercial applications.This 3-pole circuit breaker features a 30 ampere rating and operates at up to 600 volts AC. It has a high interrupting capacity of 50kA at 600VAC, ensuring robust protection against short circuits and overloads. The breaker uses a thermal-magnetic trip unit with an 80% continuous current rating and is designed for I-Line mounting. Its compact dimensions and black color make it suitable for various panel configurations.

• Manufacturer: Square D
• Series/Frame: PowerPact H
• Poles: 3
• Amperage: 30A
• Voltage Rating: 600VAC
• Interrupt Rating: 50kA
• Trip Unit: Thermal Magnetic
• Mounting Type: I-Line
• Continuous Current Rating: 80%
• Color: Black

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLA360306
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLA
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
