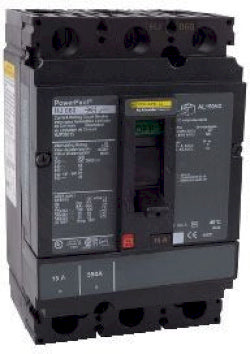

HJP36100 - Square D PowerPact H Molded Case Circuit Breaker, 100A, 600VAC/250VDC, 3 Pole, J Frame, Thermal Magnetic Trip, 20/25/65/100 kA Interrupt, Unit Mount, UL/CSA

HJP36100

HJP36100 is a Square D PowerPact H molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This thermal magnetic trip circuit breaker features a 100A current rating, 600VAC/250VDC voltage rating, and a robust J frame. It is unit-mounted, offers a 3-pole configuration, and is UL and CSA approved for safety and compliance. The HJP36100 provides multiple interrupt ratings depending on voltage: 100 kA at 240VAC, 65 kA at 480VAC, and 25 kA at 600VAC, ensuring dependable performance across a range of electrical systems.

Key Specifications

• Amperage: 100A
• Voltage: 600VAC, 250VDC
• Poles: 3
• Mounting Type: Unit
• Interrupt Rating: 100 kA @ 240VAC, 65 kA @ 480VAC, 25 kA @ 600VAC
• Series/Frame: PowerPact H, J Frame
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA
• Connection: Load lug/terminal nut
• Wire Size: 14 to 3/0 AWG Al/Cu
• Frequency: 50/60 Hz
• Dimensions: 4.36 in L x 4.12 in W x 6.4 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJP36100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJP
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901677000
• GTIN : 00785901677000
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
