HJL36150U33X - Square D PowerPact H 150 Amp 3 Pole 600VAC Molded Case Circuit Breaker

HJL36150U33X

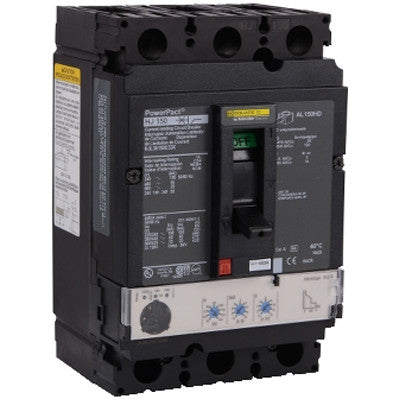

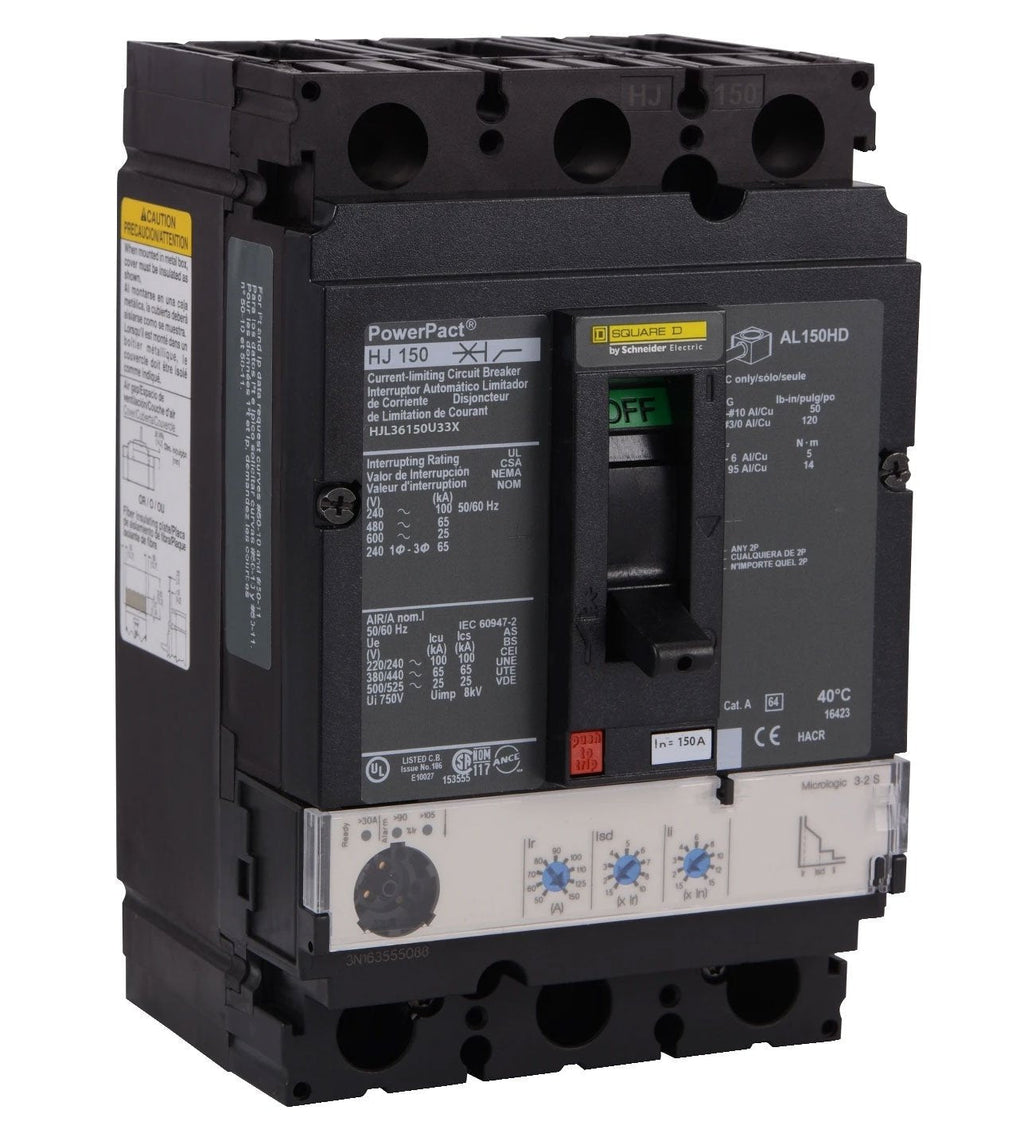

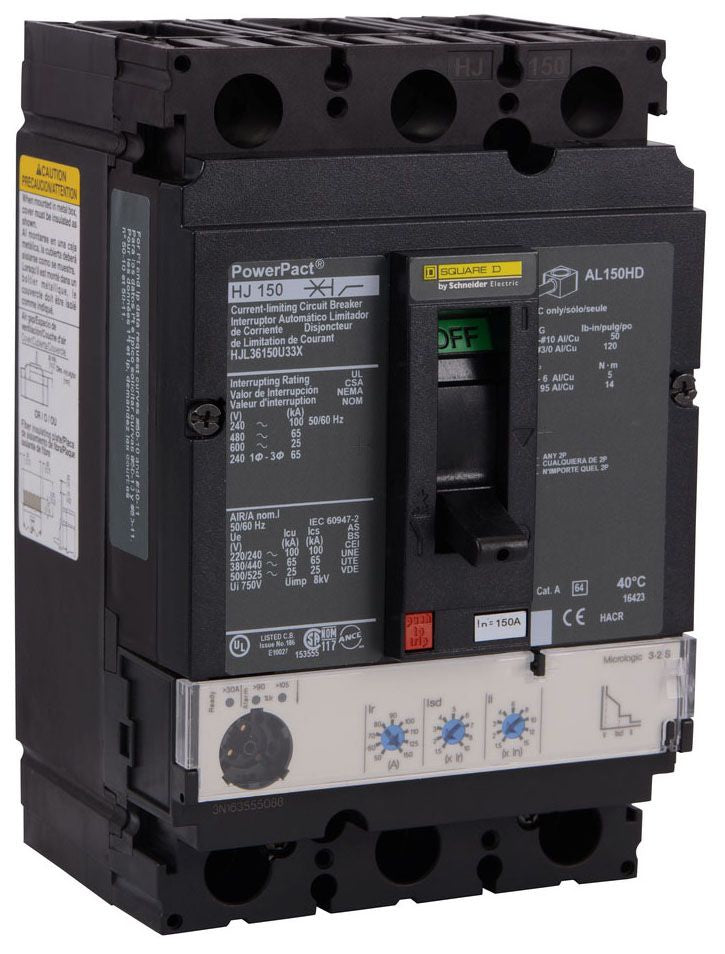

HJL36150U33X is a Square D PowerPact H-frame molded case circuit breaker rated for 150 amperes at 600 volts AC, three pole configuration, designed for unit mount installation with electronic trip protection. This UL 489 listed breaker features MicroLogic 3.2S solid state protection technology and is engineered to protect electrical systems from overloads and short circuits in industrial and commercial applications. Key Specifications

• Part Number: HJL36150U33X
• Manufacturer: Square D by Schneider Electric
• Amperage: 150 Amp
• Voltage: 600 VAC
• Poles: 3 Pole
• Frame: PowerPact H
• Mounting: Unit Mount
• Trip Unit: Electronic MicroLogic 3.2S LSI
• Interrupt Rating: 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC
• Protection Type: Solid State
• Certification: UL 489 Listed
• Terminal Type: Lugs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJL36150U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJL
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State

Product Data

• UPC : 785901324508
• GTIN : 00785901324508
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
