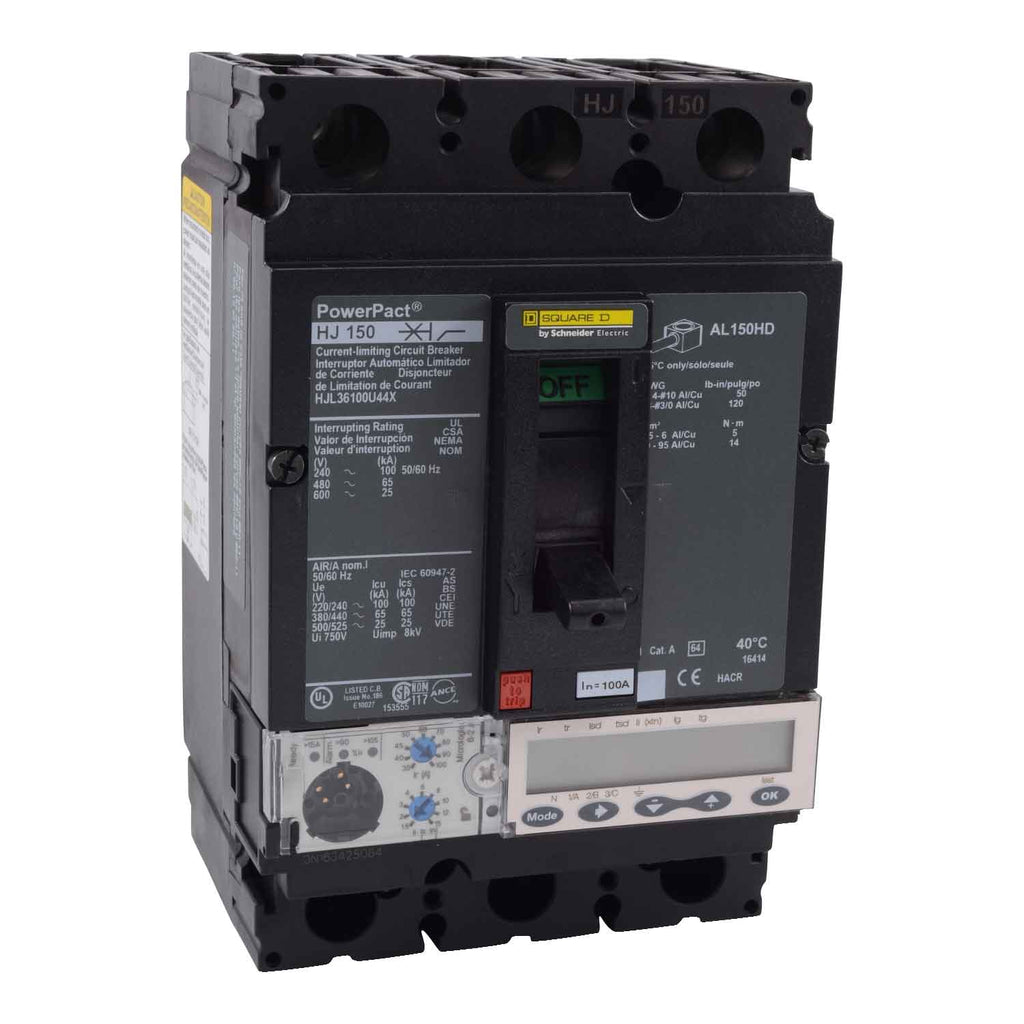

HJL36100U44X - Square D 100A 600V 3 Pole PowerPact H Circuit Breaker 65kAIC Feed-Thru

HJL36100U44X

HJL36100U44X is a 3 pole, 100 amp, 600 volt PowerPact H frame circuit breaker from Square D designed for reliable power distribution protection.HJL36100U44X features a feed-thru design with a 65kA interrupting rating at 480V, thermal magnetic trip unit with long time, short time, ground fault, and instantaneous trip functions. It is current limiting and suitable for reverse fed applications with line and load side lug terminals.

• Manufacturer: Square D
• Amperage: 100 Amps
• Voltage: 600 Volts AC
• Poles: 3
• Frame Type: PowerPact H (HJL)
• Interrupt Rating: 65kA at 480V
• Trip Unit: Thermal Magnetic with LSIG (Long time, Short time, Instantaneous, Ground fault)
• Feed-Thru design
• Current Limiting
• Suitable for Reverse Fed Applications
• Line and Load Side Lug Terminals
• Non-Interchangeable Trip

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJL36100U44X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJL
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : Long Time, Short Time, Ground Fault and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State

Product Data

• GTIN : 03606486282137
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
