HJL36080C - Square D 80A 600V 3 Pole Circuit Breaker PowerPact H-Frame 65kA@480V Feed-Thru

HJL36080C

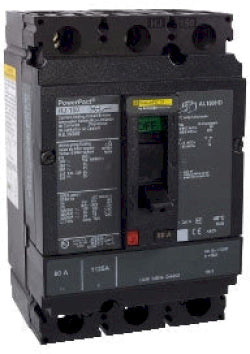

HJL36080C is a Square D 3 pole, 80 amp, 600 volt circuit breaker designed for reliable power distribution protection.This PowerPact H-Frame circuit breaker features a thermal magnetic trip unit with current limiting capabilities. It has a 65kA interrupt rating at 480V and is suitable for feed-thru and reverse fed applications. The breaker is UL 489 listed and designed for unit mount installation, providing robust overload and short circuit protection.

• Amperage: 80A
• Voltage: 600V max
• Poles: 3
• Interrupt Rating: 65kA at 480V
• Frame/Series: PowerPact H-Frame
• Trip Unit: Thermal Magnetic, Current Limiting
• Mounting Type: Unit Mount
• Feed-Thru capable
• UL 489 Listed
• Dimensions: 4.09" W x 3.39" D x 6.42" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJL36080C
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJL
• Voltage : 600
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• GTIN : 03606486282120
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
