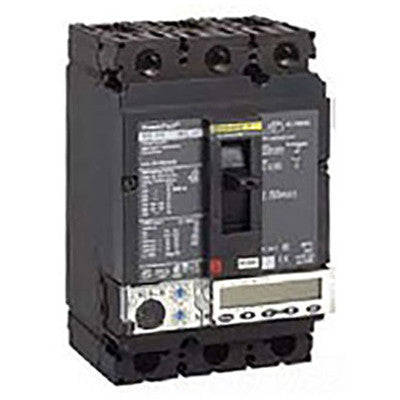

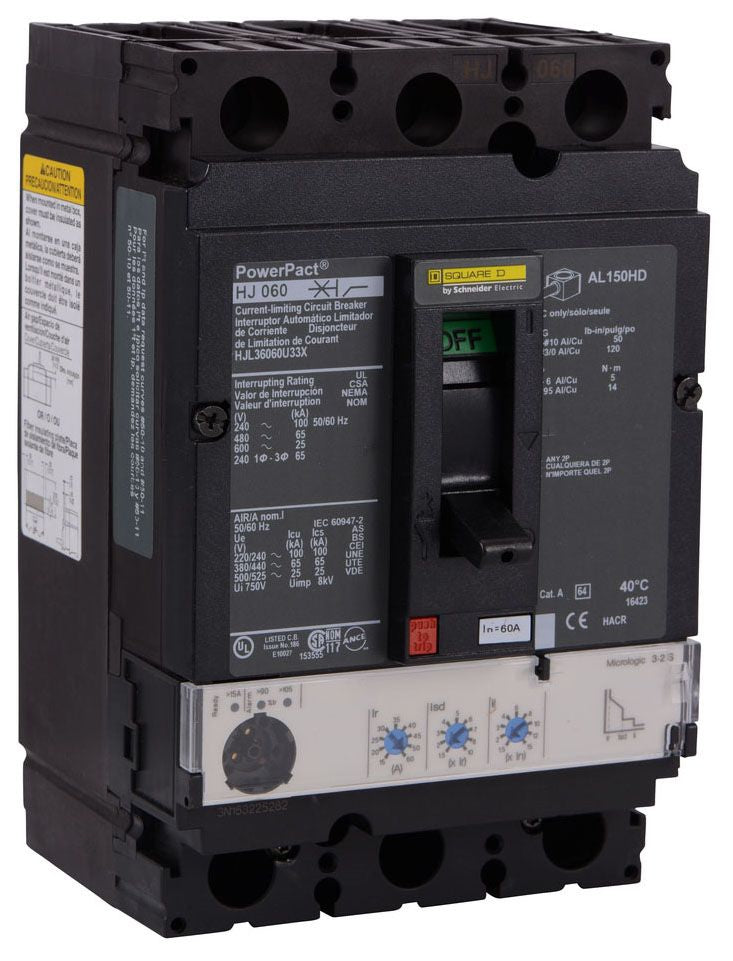

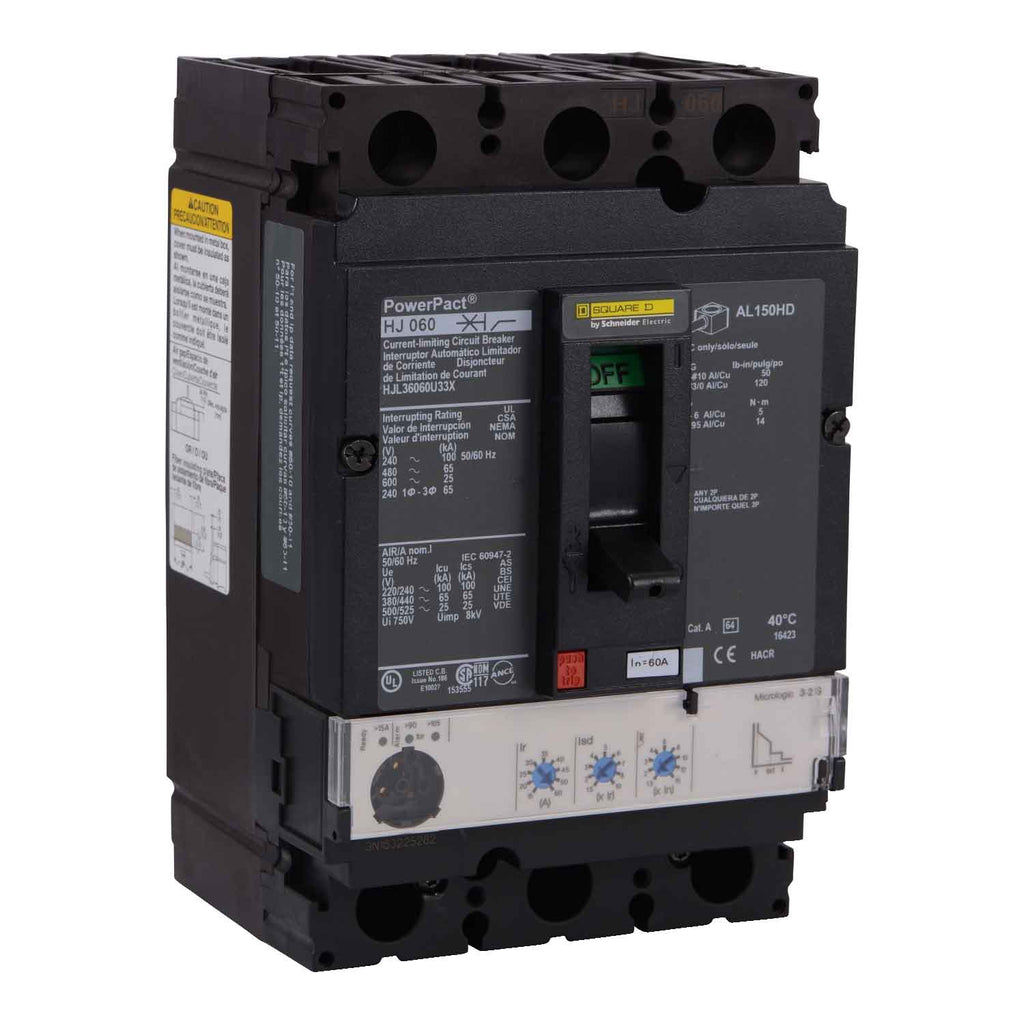

HJL36060U33X - Square D PowerPact H 60A 3 Pole Molded Case Circuit Breaker 600V Solid State LSI

HJL36060U33X

HJL36060U33X is a 3 pole, 60A, 600V solid state molded case circuit breaker from the Square D PowerPact H series, featuring LSI trip functions and feed-thru connection type for reliable circuit protection. This breaker is designed for industrial and commercial applications, offering precise electronic trip control with long-time, short-time, and instantaneous protection. It features a solid state micrologic 3.2 S trip unit, current limiting capability, and is suitable for both line and load side lug connections. The unit mount design allows for easy installation in compatible panels.

• Manufacturer: Square D
• Series/Frame: PowerPact H
• Amperage: 60A
• Voltage: 600/690VAC, 250VDC
• Poles: 3
• Mounting Type: Unit
• Interrupt Rating: 100kAIC @ 240VAC, 65kAIC @ 480VAC, 25kAIC @ 600VAC
• Protection Type: Solid State, LSI Trip
• Connection Type: Feed-Thru, Line & Load Side Lug
• Approvals: UL, CSA, CE, NEMA, NOM, IEC
• Standards: RoHS, REACh, HACR
• Temperature Rating: -25 to 70 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJL36060U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJL
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 785901726975
• GTIN : 00785901726975
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
