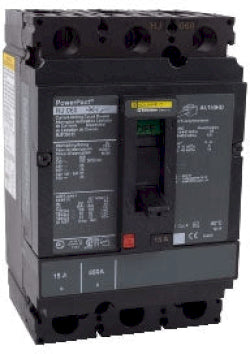

HJF36020 - Square D PowerPacT H 20 Amp 3-Pole 600VAC Circuit Breaker

HJF36020

HJF36020 is a Square D PowerPacT H molded case circuit breaker designed for industrial power distribution applications. This three-pole unit mount breaker provides reliable thermal-magnetic protection at 20 amperes up to 600 VAC, with a 25 kA interrupt rating and 80% continuous current rating for safe operation in demanding environments.

• Amperage: 20 A
• Voltage: 600 VAC
• Poles: 3
• Frame: H Frame
• Mounting: Unit Mount
• Interrupt Rating: 25 kA
• Trip Unit: Thermal Magnetic
• Continuous Current Rating: 80%
• Magnetic Hold Current: 350 A
• Magnetic Tripping Current: 750 A
• Certification: UL 489 Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: HJF36020
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJF
• Voltage : 600
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901484110
• GTIN : 00785901484110
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.01
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
