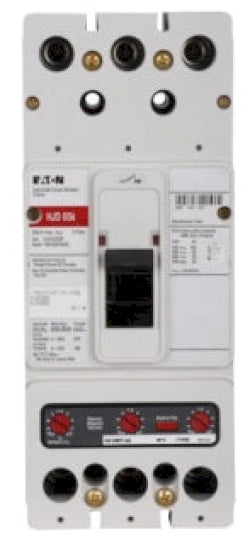

HJD3090W - Eaton 90A 600VAC 3-Pole Molded Case Circuit Breaker J Frame Thermal Magnetic

HJD3090W

HJD3090W is a 3-pole molded case circuit breaker from Eaton designed for reliable circuit protection with a 90 ampere rating and 600 VAC voltage capacity.

This Eaton HJD3090W breaker features a thermal magnetic trip unit with fixed thermal and magnetic trip settings, suitable for industrial and commercial applications. It is part of Eaton's Series C J frame breakers, providing a 65/100 kA interrupt rating at 480 VAC and 600 VAC respectively. The breaker is bolt-on mounted and designed for use in three-phase electrical systems.

• Amperage: 90 Amps
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Frame Type: J Frame (Series C)
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Interrupt Rating: 65 kA at 480 VAC, 100 kA at 600 VAC
• Mounting Type: Bolt-On
• Phase: 3

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: HJD3090W
• Manufacturer : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HJD
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 782114983898
• GTIN : 00782114983898
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 10 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 0.01
• Certification : UL Listed
