HJD3090 - Eaton C Series 3 Pole 90A Molded Case Circuit Breaker 600VAC Fixed Thermal Magnetic Trip

HJD3090

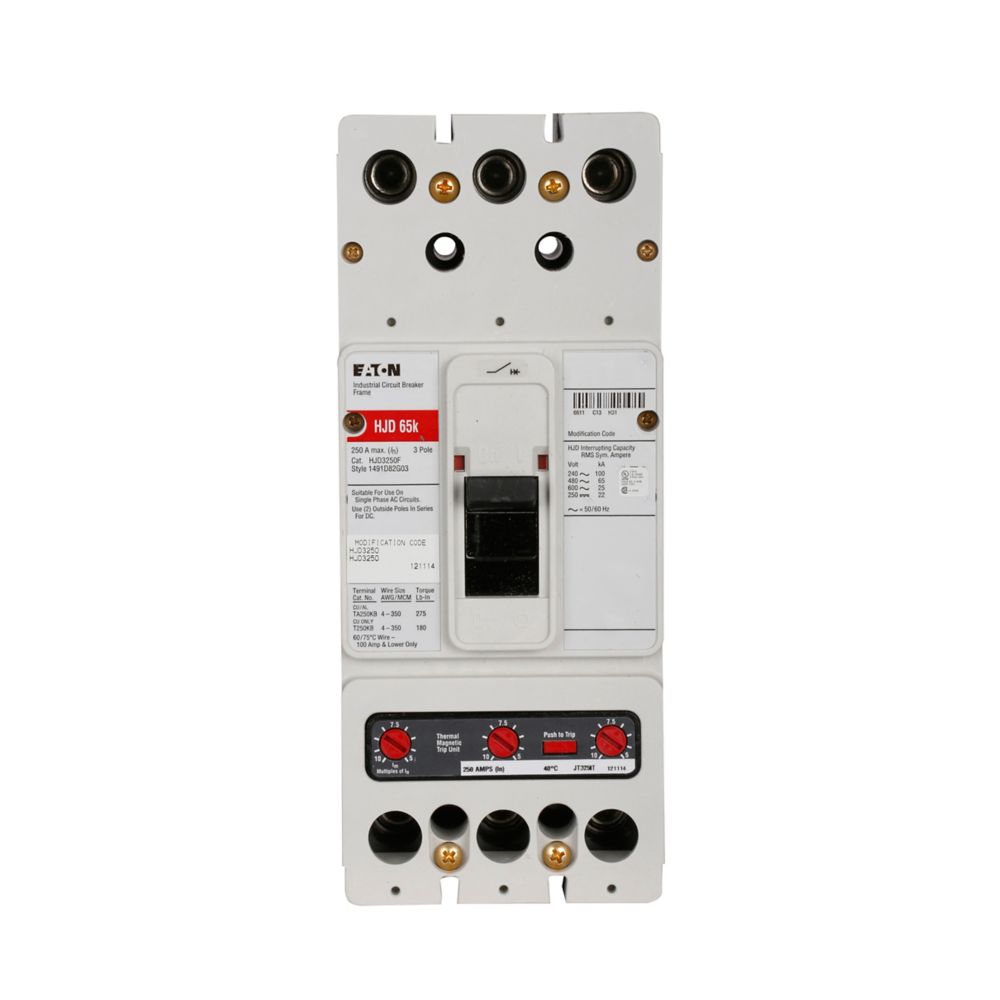

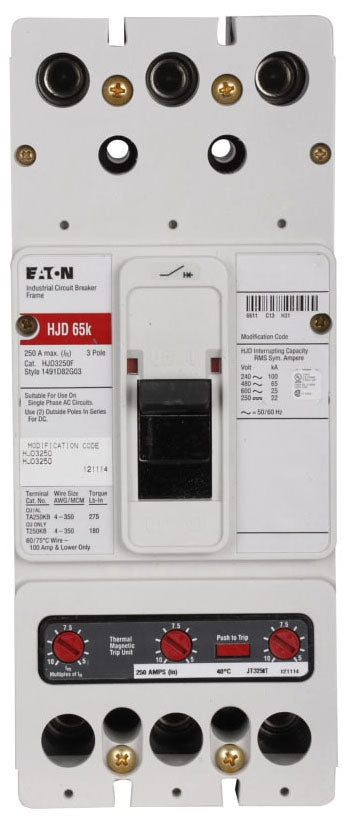

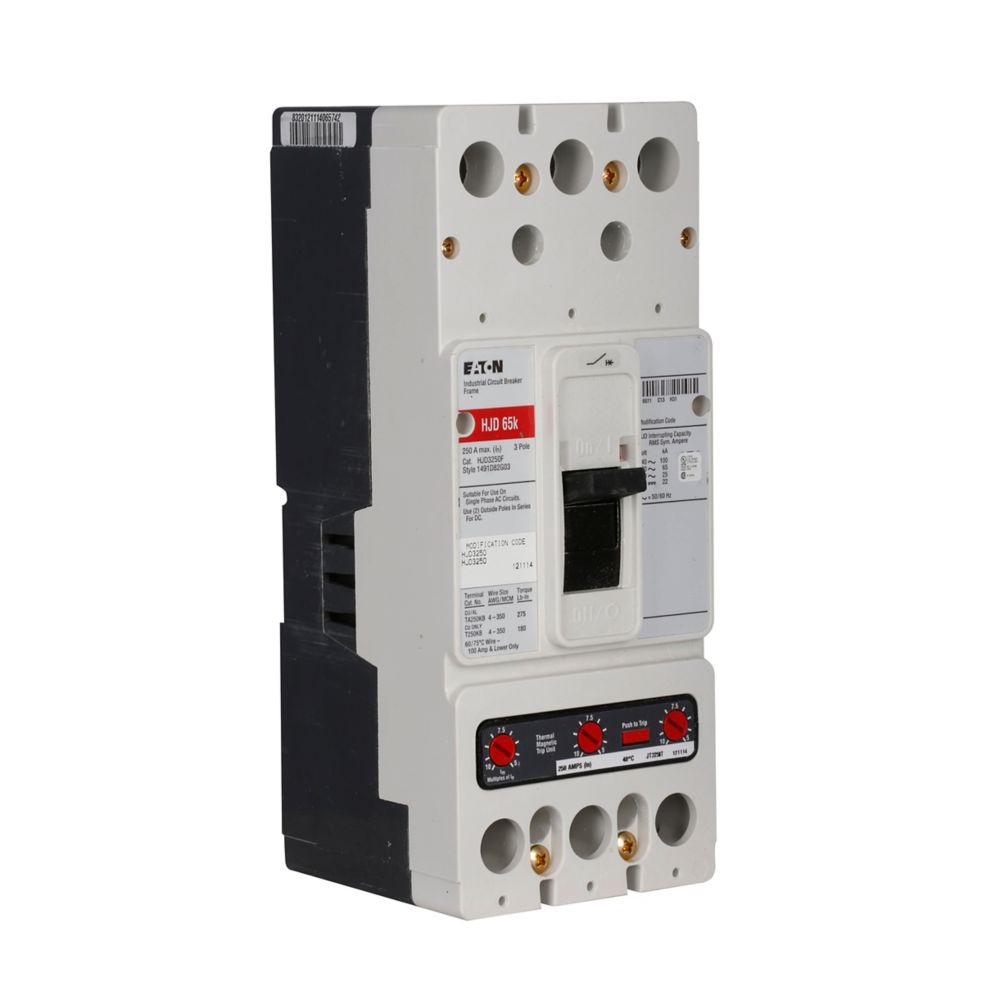

HJD3090 is a three-pole molded case circuit breaker from Eaton's C Series, designed for reliable protection in commercial and industrial power distribution systems. This breaker features a fixed thermal and fixed magnetic trip unit, providing dependable overcurrent protection for circuits up to 600VAC. The HJD3090 is built with a J-frame for secure mounting and is suitable for applications requiring high interrupting capacity. This molded case circuit breaker is rated for 90A continuous current and is UL 489 listed for safety and compliance. It is commonly used in panelboards and switchgear where robust circuit protection is essential. The breaker is designed for easy installation and long-term durability in demanding environments.

• Part Number: HJD3090
• Manufacturer: Eaton
• Series/Frame: C Series, J-Frame
• Poles: 3
• Amperage: 90A
• Voltage: 600VAC
• Interrupt Rating: 100kAIC at 240VAC, 65kAIC at 480VAC
• Mounting Type: J-Frame
• Trip Unit: Fixed Thermal / Fixed Magnetic
• UL Listed: UL 489
• Approvals: UL
• Weight: 12.5 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJD3090
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HJD
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : J Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679002032
• GTIN : 00786679002032
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 10 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 12.5
• Certification : UL Listed
